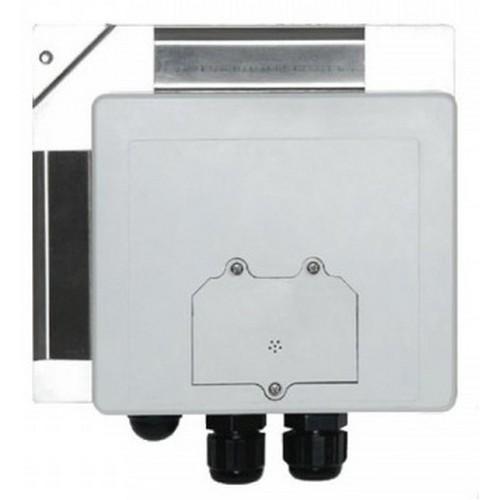

SMA Gateway *CLEARANCE*
The gateway enables wireless communication for up to 120 TS4-R components. i t can be installed easily on the rear of the module or the substructure and has a range of up to 15 meters. The connection to Cloud Connect Advanced is a wired RS485 connection.
-
Description
Specifications:
- Manufacturer Part Number: 150-00000-50
- Manufacturer: SMA
- Product Name: TS4-R Gateway (GTWY)
- Product Type: Solar communication gateway
Mechanical:
- Communication with TS4-R: Wireless, 802.15
- Communication with CCA: RS-485
- Maximum TS4-R components per Gateway: 120
- Wireless range: 15 m / 50 ft line of sight
- Dimensions including retaining bracket: 200 × 200 × 73 mm
- Operating temperature: −30°C to +70°C
- Enclosure: IP65
-
Resources
Datasheet
✔️ Download Datasheet
Quick Installation Guide
No quick istallation guide file resource available. Email support@solux.energy for file request.
Warranty
No warranty file resource available. Email support@solux.energy for file request.
