Description
Single-Phase String Inverter, Transformless, 240V

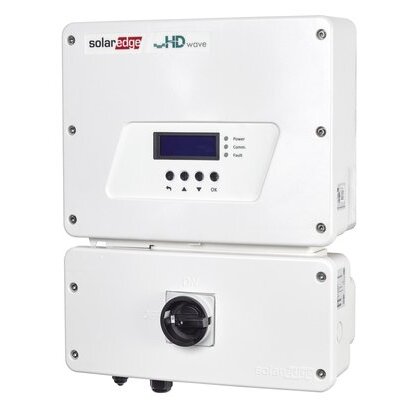

The SE5000H-US000NNU2 is a SolarEdge 5.0 kW single-phase HD-Wave grid-tied inverter. It converts DC electricity generated by solar panels into AC electricity for use by the home and electrical grid. It is specifically designed to operate with SolarEdge power optimizers and includes integrated safety functions such as AFCI and rapid shutdown.
Specifications:
- Model: SE5000H-US000NNU2
- Product Type: Single-Phase String Inverter
- Technology: HD-Wave
- Rated AC Power: 5,000 W / 5.0 kW
- AC Voltage: 208/240 V
- Maximum DC Power: 7,750 W
- Nominal DC Input Voltage: 380 V
- Maximum DC Input Voltage: 480 V
- Maximum AC Output Current: 24 A at 208 V / 21 A at 240 V
- Maximum DC Input Current: 15.5 A at 208 V / 13.5 A at 240 V
- Protection: AFCI and rapid shutdown
- Installation: Indoor or outdoor
-
