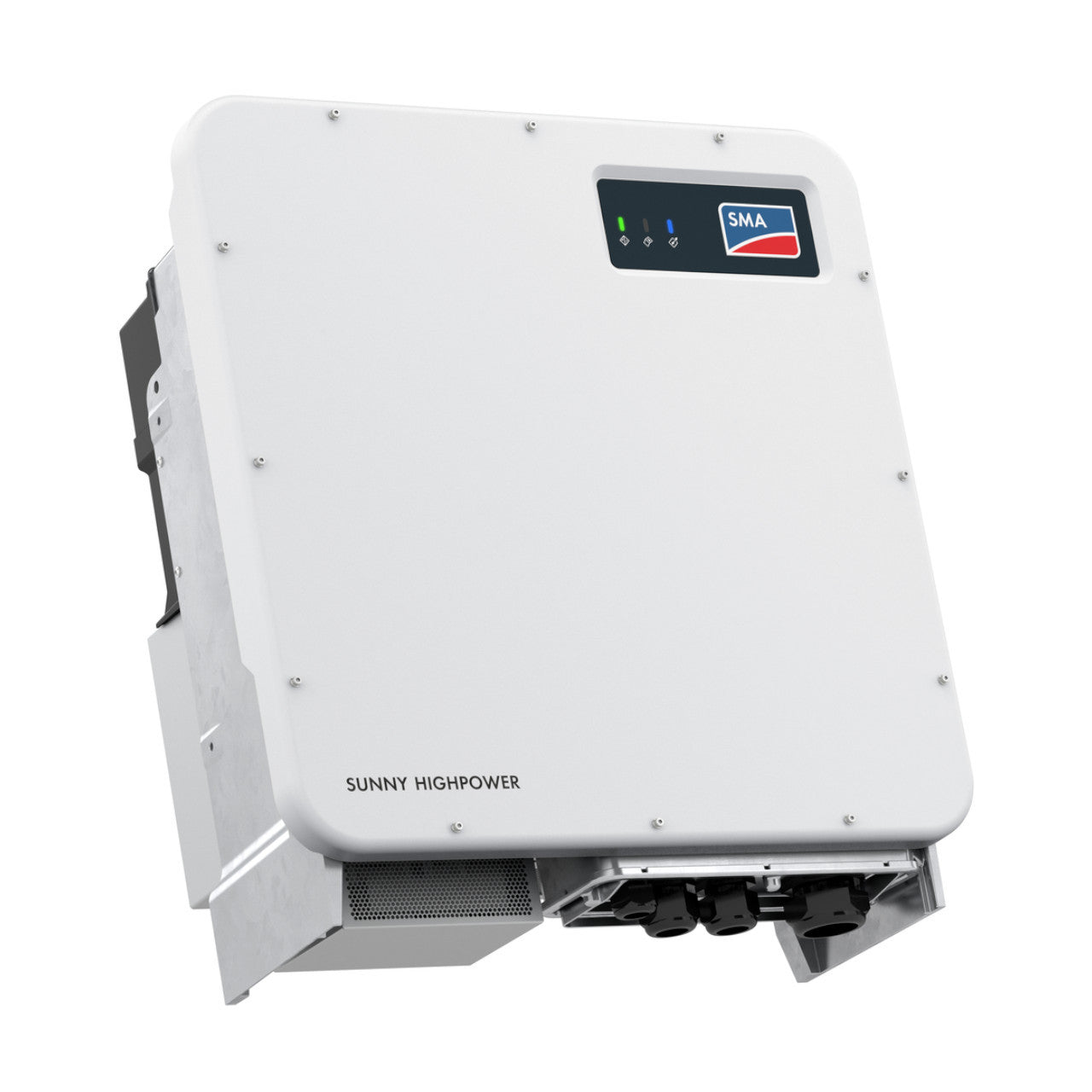

Sunny Highpower PEAK3 150-US-20 (SHP-150-US-20) 150KVA 600VAC String Inverter

SMA - Highpower Peak3-US, SHP150-US-20

DC line losses are recoverable thanks to class-leading DC:AC ratio of up to 150%.
The absence of a step down transformer reduces service costs and eliminates a potential point of failure.
The PEAK3 enables a centralized modular plant architecture which simplifies O&M.
SMA Smart Connected proactive service technology reduces costly truck rolls and on-site diagnosis of events, while simultaneously increasing uptime and energy production.

Technical Specifications

• Power Output: 15kW
• AC Voltage: 600V
• DC Voltage: 1500V
• CEC Efficiency: 0.99
• Maximum DC Input Voltage: 1500V
• Maximum Short Circuit DC Input Current: 325A
• Maximum Operation DC Input Current: 180A
• Number of MPPT: 1
• MPP operating voltage window: 855-1500V
• Rated MPP voltage window for nameplate output power: 880-1450V
• Connectivity: Ethernet
