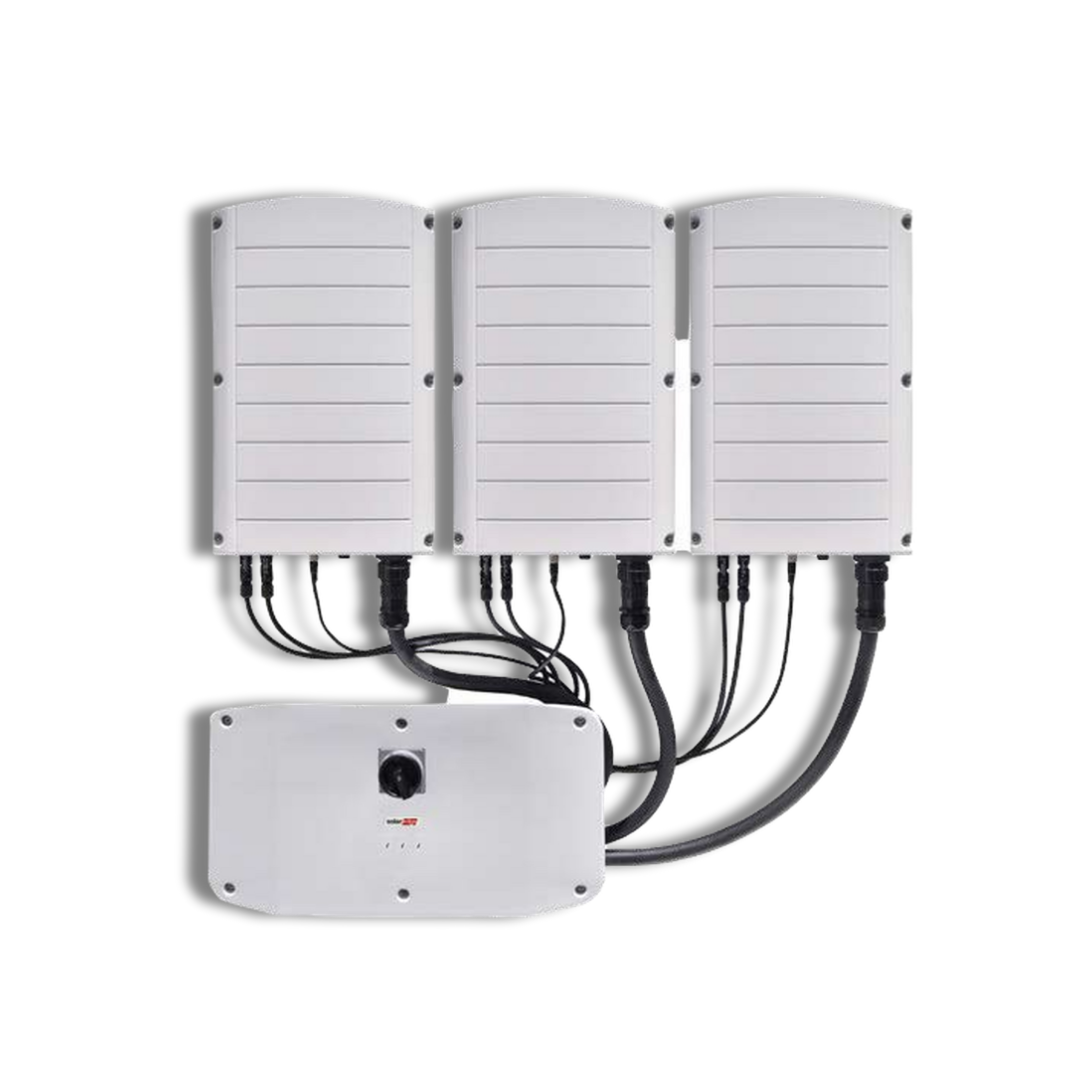

SolarEdge Synergy SE80K-US08IBPZ4 80.0kW 3-Ph Inverter - Clearance

SolarEdge Synergy SE80K-US08IBPZ4 80.0kW 3-Ph Inverter - Clearance

SolarEdge 3-phase inverters combine with SolarEdge power optimizers to provide superior performance at a competitive price.

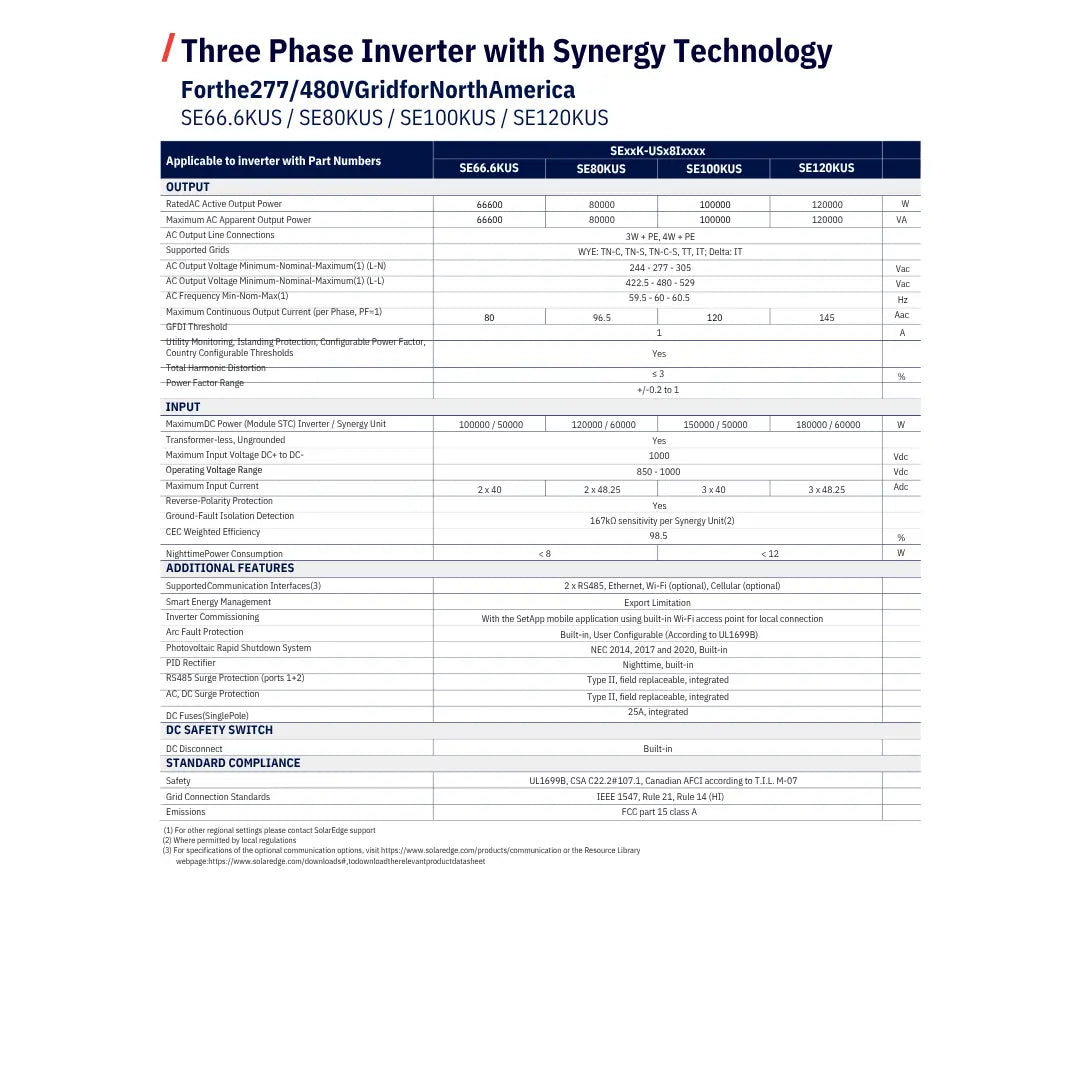

Technical Specifications:

• Model: SE80KUS (SE80K-US08IBNZ4)
• Series: Synergy - Three Phase Inverter with Synergy Technology
• Manufacturer: SolarEdge
• Type: Grid-Tie
• Operating Temperature Range: -40 to +140°F / -40° C to +60° C
• Enclosure: NEMA 3R
• Cooling: Fans (user replaceable)
• Dimensions (H x W x D): Synergy Manager: 14.17" x 22.4" x 11.6" / Synergy Unit: 22" x 12.9" x 10.75"
• Weight: Synergy Manager: 39.6 lbs / Synergy Unit: 70.4 lbs.
• Shipping Method: Freight
• Maximum DC Power (Module STC) Inverter / Synergy Unit (STC): 120,000 / 60,000 W
• Transformer-less, Ungrounded: Yes
• Maximum Input Voltage DC+ to DC-: 1000 V
• Operating Voltage Range: 850 - 1000 V
• Maximum Input Current: 2 x 48.5
• Reverse-Polarity Protection: Yes
• Rated AC Power Output: 80,000 VA
• Maximum AC Power Output: 80,000 VA
• AC Output Line Connections: 3W + PE, 4W + PE
• AC Output Voltage Minimum-Nominal-Maximum(1) (L-N): 244 - 277 - 305 VAC
• AC Output Voltage Minimum-Nominal-Maximum(1) (L-L): 422.5 - 480 - 529 VAC
• AC Frequency Min-Nom-Max: 59.3 - 60 - 60.5 Hz
• Maximum Continuous Output Current (per Phase) @208V: 96.5 A
• GFDI Threshold: 1
