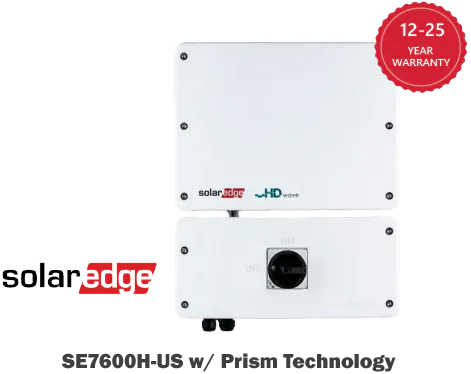

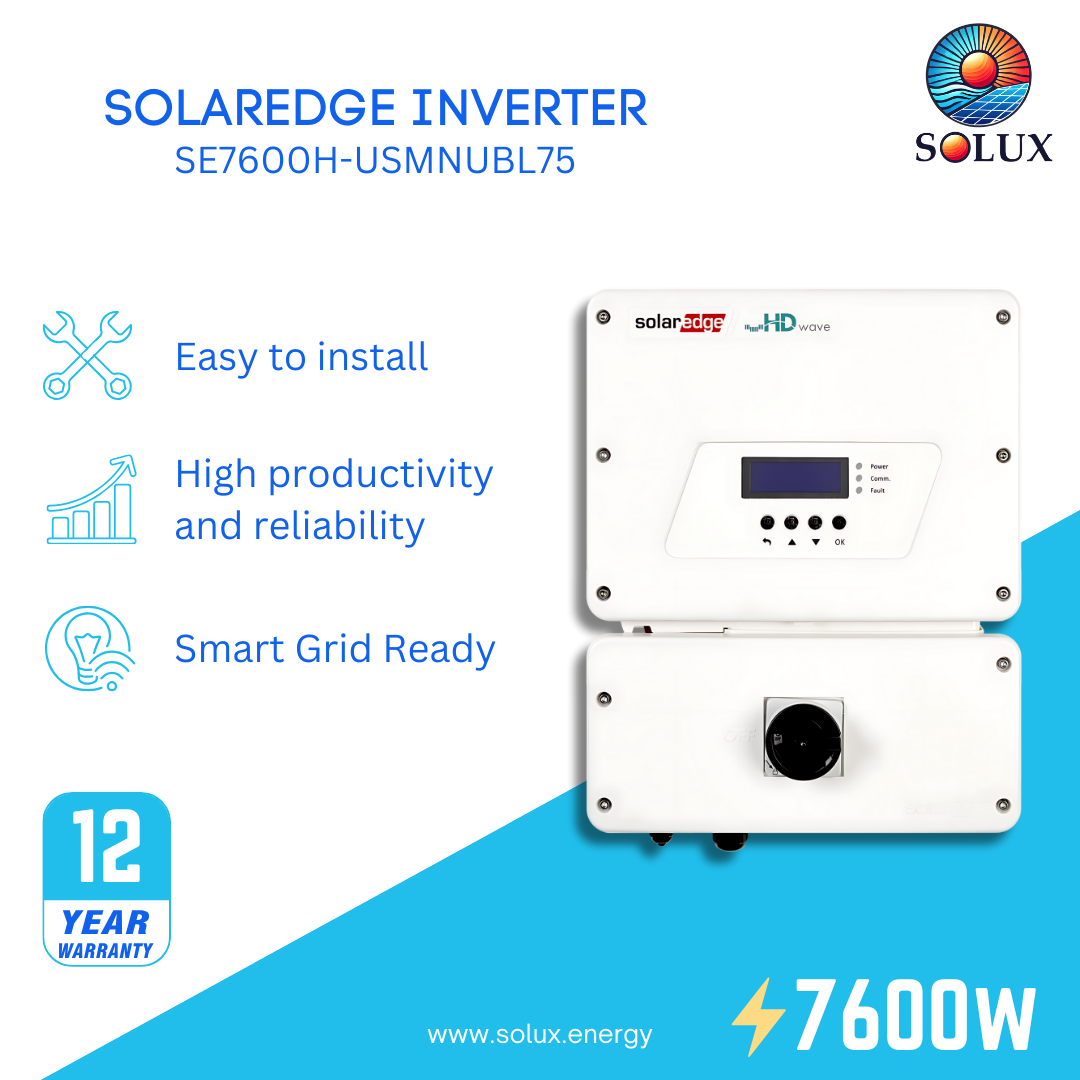

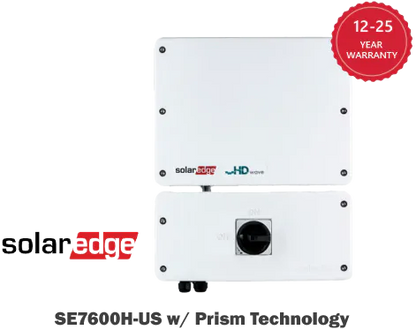

SolarEdge Energy Hub Inverter with Prism Technology SE7600H-USMNUBL75

SolarEdge Energy Hub Inverter with Prism Technology SE7600H-USMNUBL75

In June 2020, SolarEdge released the newest edition of their product line, the Energy Hub Inverter with Prism Technology. The Energy Hub is an energy-backup inverter that functions similar to a conventional string inverter but is battery-compatible.
This means that the user can save unused solar energy during the day for later (i.e., the nighttime). Without energy storage, solar energy goes to waste if it’s unused at the time of production - the energy either gets sent back to the grid where the user may get little to no credits.

Designed for use with SolarEdge Power Optimizers for the most efficient grid-tie inverter solar system available. We carry the latest SE7600H-US UL1741, UL1699B, certified inverters with ground-fault isolation detection and interruption compliance.
This small and lightweight inverter enables simplified shipping, storing and one-person installation. The record-breaking efficiency allows more energy production for residential grid-tie solar systems.

Upgrade your home with a reliable hybrid solar inverter for efficient, dependable solar power:

• Record-breaking 99% weighted efficiency with 200% DC oversizing!
• Multi-inverter, scalable storage solution
• Small, lightweight, and simple to install
• Modular design, future ready with optional upgrades available
• Integrated arc fault protection and rapid shutdown for NEC 2014, NEC 2017 and NEC 2020, per article 690.11 and 690.12
• Enhanced battery power up to 10kW
• Embedded revenue grade production data, ANSI C12.20 Class 0.5

Technical Specifications:

• SolarEdge Model Number: SE7600H-US
• Rated AC Power On Grid: 7,600W
• Rated AC Power Backup: 7,600W
• Nominal Output Voltage: 240V
• Max. DC Power Input: 15200W
• Max DC Input Voltage: 480V
• Nominal DC Input Voltage: 380V
• Max. Input Current: 20.0A
• Inverter Efficiency: 99.2%
• CEC Weighted Efficiency: 99%
• Nighttime Power Consumption: 2.5W
