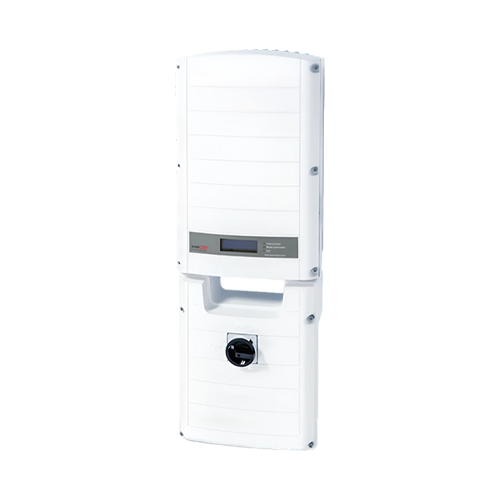

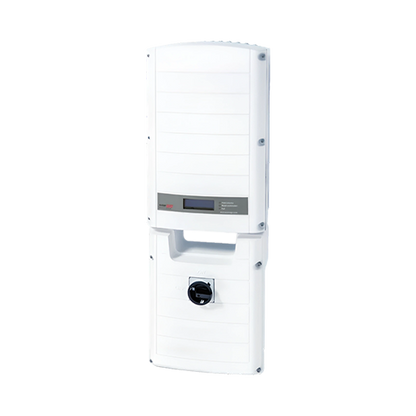

SolarEdge SE7600A-USS2RNCB2 7.6kW 400VDC 240VAC Single Phase StorEdge Hybrid Inverter

SolarEdge StorEdge 7.6kW Single-Phase Hybrid Inverter

The SolarEdge SE7600A-USS2RNCB2 is a high-performance 7.6kW single-phase StorEdge hybrid inverter engineered to combine solar PV generation and high-voltage DC battery storage into a single management unit. By utilizing a DC-coupled architecture, the system eliminates unnecessary AC-to-DC conversion losses, maximizing round-trip efficiency for residential self-consumption and battery backup applications.

The StorEdge Hybrid Inverter has the capability to use energy storage to enhance self-consumption of solar energy. This is useful when net-metering, or grid feed is not available, or not advantageous financially. This system uses DC coupling for both the solar and the connection to the battery system for greater overall efficiency. The system features export control, time-of-use shifting, maximized self-consumption, and peak shaving capabilities.

Key Features

Upgrade your home with a reliable hybrid solar inverter for efficient, dependable solar power:

• Product Category: Single-Phase Hybrid Grid-Tie Inverter / Storage Inverter
• Rated Power Output: 7, 600 W (7.6 kW) @ 240V AC
• Grid Voltage: 240V AC Single-Phase Split-Phase (208V AC compatible)
• Enclosure Rating: NEMA 3R (Outdoor & Indoor Installation)
• Integrated Features: AFCI (Arc-Fault Circuit Interrupter), StorEdge Connection Unit, 5-Year Cellular Plan included
