Description

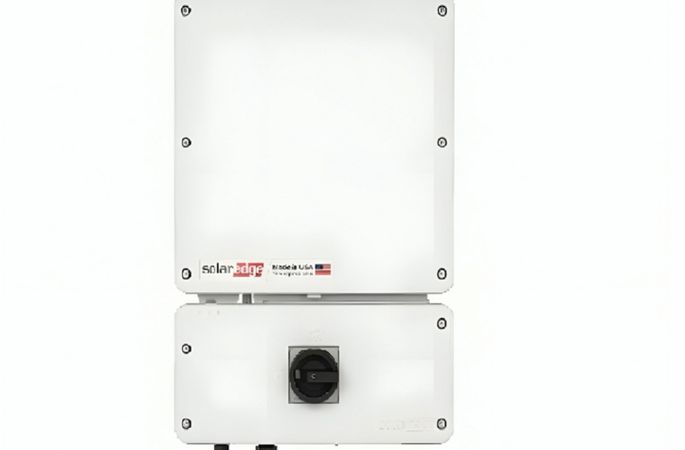

SolarEdge Home Hub 5.7kW Single Phase String Inverter
Single Phase Home Hub inverter, 5.7kW on-grid, 11.4kW off-grid w/ PCS certified revenue Grade metering and Consumption Monitoring, w/ Cellular Modem and plan Domestic Content Inverter - Must be paired with SE-U650-1GM4MRMU SolarEdge Power Optimizers to qualify for Domestic Content Bonus Credit.
Technical Specifications:
- AC Output Voltage (Nominal): 208 / 240 Vac
- Maximum AC Power Output: 5760 @ 240V / 5000 @ 208V
- AC Output Voltage (Range)L: 183 – 264 Vac
- AC Frequency Range (min - nom - max): 59.3 – 60 – 60.5(2) Hz
- Maximum Continuous Output Current: 24 @240V / 24 @ 208 V
- Maximum Input Voltage: 480 Vdc
- Manufacturer Part Number: SE5700H-USMNUBL75
- Power Output: 5700 Watts
- Voltage: 208/240 Volts
- Weight: 44.9 lb
- Dimensions: 21.06 x 14.6x 8.2 in
- Pallet Qty: 24 pcs
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
12 Years Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
