Description

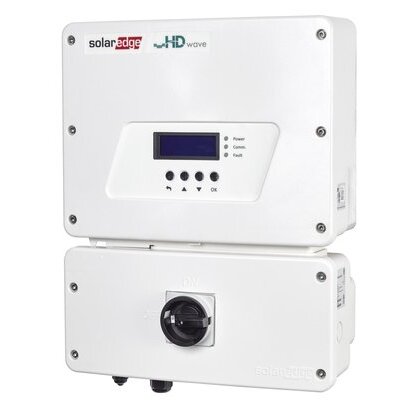

SolarEdge HD-Wave 5.0kW Single-Phase Inverter
The SolarEdge SE5000H-US000NNU2 is a 5.0 kW transformerless single-phase grid-tied inverter designed for residential solar systems. Built with SolarEdge HD-Wave technology, this unit converts DC electricity from solar panels into clean AC power for home consumption and grid export. Designed exclusively to work with SolarEdge power optimizers, it manages solar arrays with up to 7,750 W of DC input power. Built for indoor or outdoor wall installation, it incorporates essential safety features, including Arc Fault Circuit Interruption (AFCI) and integrated rapid shutdown capabilities.
Specifications:
- Model: SE5000H-US000NNU2
- Product Type: Single-Phase String Inverter
- Technology: HD-Wave
- Rated AC Power: 5,000 W / 5.0 kW
- AC Voltage: 208/240 V
- Maximum DC Power: 7,750 W
- Nominal DC Input Voltage: 380 V
- Maximum DC Input Voltage: 480 V
- Maximum AC Output Current: 24 A at 208 V / 21 A at 240 V
- Maximum DC Input Current: 15.5 A at 208 V / 13.5 A at 240 V
- Protection: AFCI and rapid shutdown
- Installation: Indoor or outdoor
-
Resources

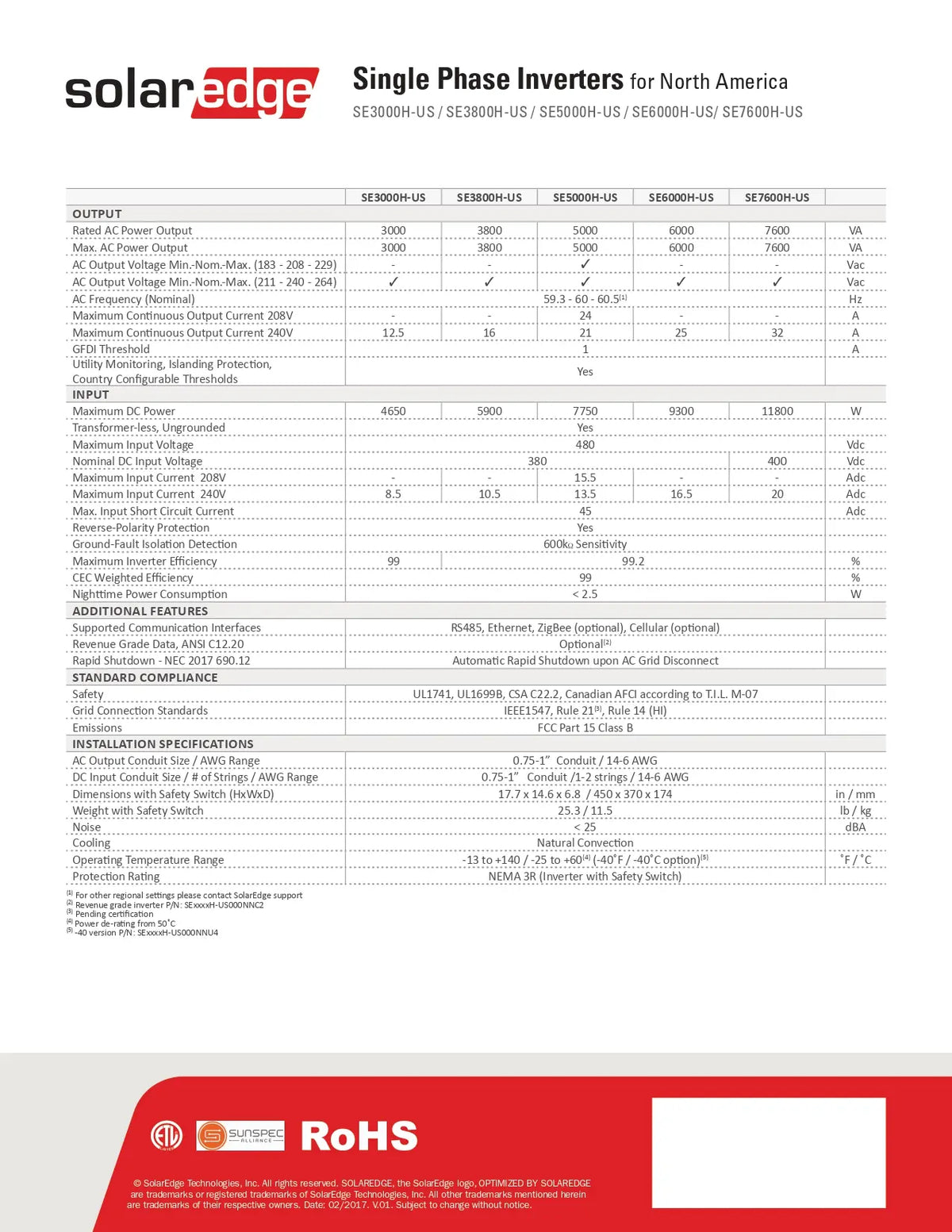

Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
