SolarEdge 43.2kW Three Phase Synergy Manager

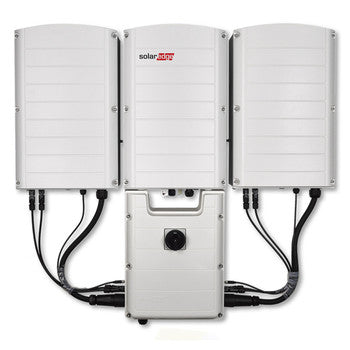

The SolarEdge 43.2kW Three Phase Synergy Manager is a key component of a modular, three-phase inverter system. Designed for ease of installation, it is part of a new generation of commercial string inverters that are lightweight and can be wall-mounted, requiring only a one- or two-person crew for installation without the need for a crane or special tools. This system combines a Synergy Manager with separate Synergy Units (requires three units for this model, purchased separately) to achieve a larger capacity.

Technical Specifications:

• Manufacturer Part Number: SE43.2K-US02IBNZ4
• Power Output: 43,200 Watts
• Voltage: 208 Volt
• Technology: Three-Phase String Inverter with Synergy Technology
• Dimensions: 14.17" x 22.4" x 11.6" (Synergy Manager)
• Cooling: Fans (User Replaceable)
• Protection Rating: NEMA 3R
• Compatibility: Requires three Synergy Units (SE-SUK-USR0INNN4) for operation.
• AC Rapid Shutdown: Integrated AC RSD for safety and compliance with NEC 2014 and 2017.
• DC Safety Switch: Includes an integrated DC Safety Switch.
• Surge Protection: Includes AC/DC Surge Protection Devices (SPD).
• Monitoring: Features built-in module-level monitoring via Ethernet or optional cellular GSM.
• Commissioning: Quick and easy commissioning via the SetApp mobile application using a built-in Wi-Fi access point.
• Warranty: 12-Year Manufacturer Warranty.
