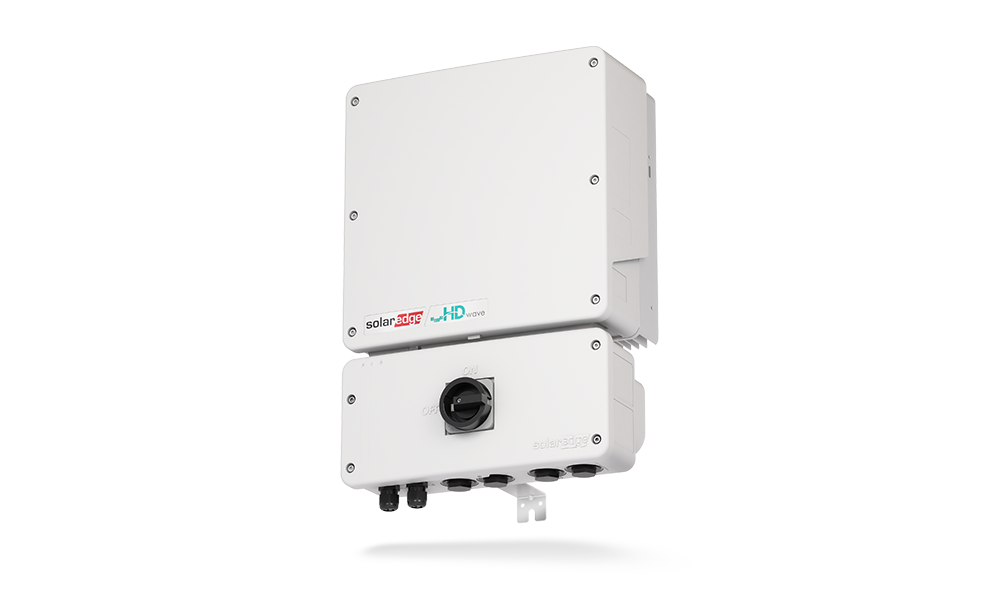

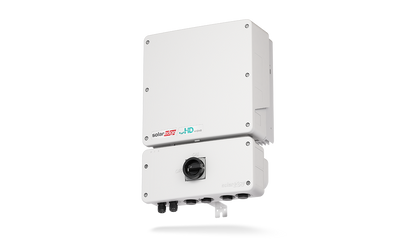

SolarEdge Energy Hub HD-Wave SE3800H-USMNUBL15 3.8kW 1-Ph Inverter

SolarEdge Energy Hub HD-Wave SE3800H-USMNUBL15 3.8kW 1-Ph Inverter

Upgrade your home with a reliable hybrid solar inverter for efficient, dependable solar power.

The award-winning SolarEdge Home Hub Inverter puts record breaking energy efficiency and control at the center of your ecosystem delivering more power, hour after hour.

• Record-breaking 99% weighted efficiency
• Quick and easy inverter commissioning directly from a smartphone using SolarEdge SetApp
• Fixed voltage inverter for longer strings
• Integrated arc fault protection and rapid shutdown for NEC 2014-2023 per articles 690.11 and 690.12
• UL1741 SA certified, for CPUC Rule 21 grid compliance
• Small, lightweight, and easy to install both outdoors or indoors
• Built-in module-level monitoring
• Optional: Faster installations with built-in consumption metering (1% accuracy) and production revenue grade metering (0.5% accuracy, ANSI C12.20)

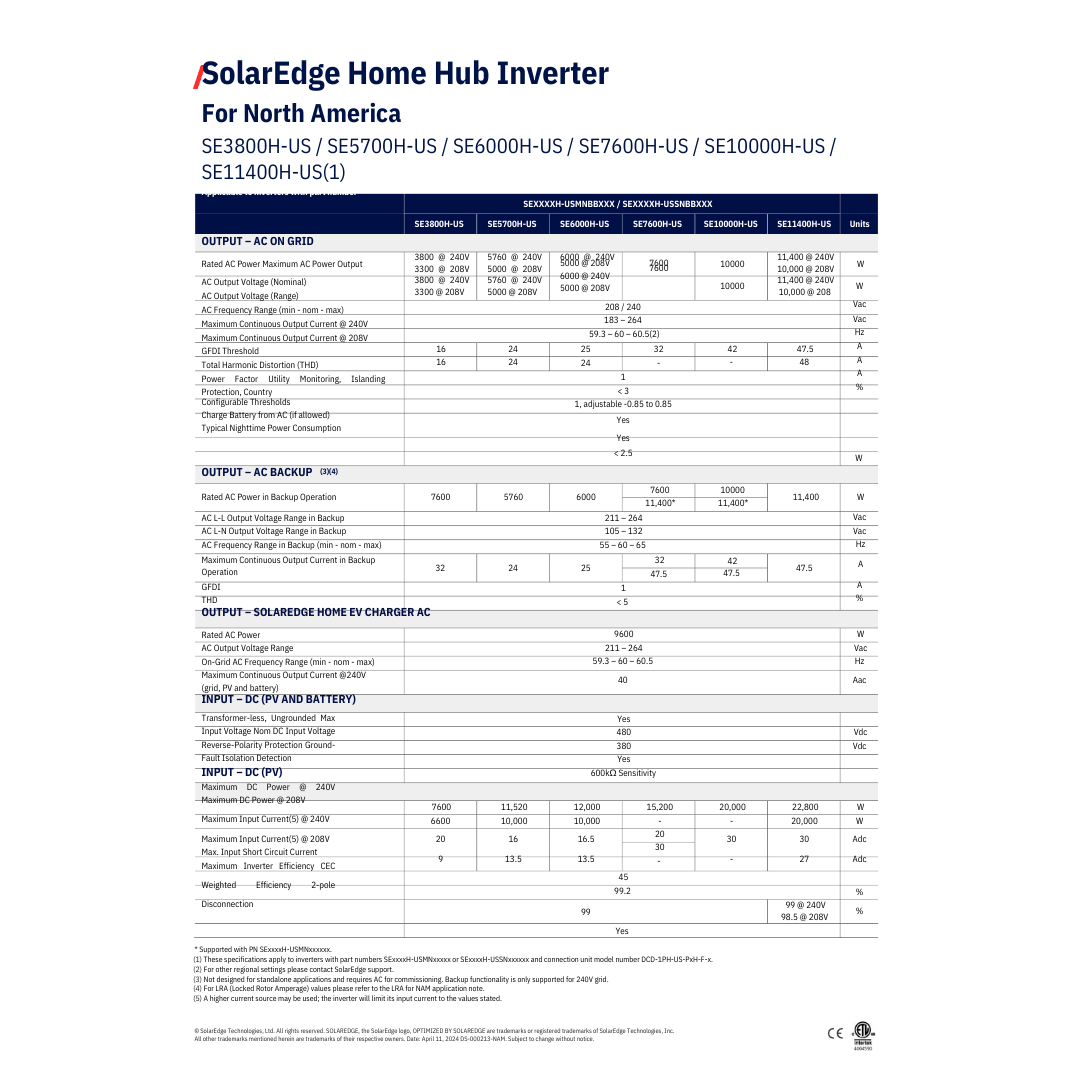

Technical Specifications:

• Maximum DC Power @240V: 5900W
• Maximum DC Power @208V: 5100W
• Maximum Input Voltage: 480Vdc
• Nominal DC Input Voltage: 380Vdc
• Maximum Input Current @240V(2): 10.5Adc
• Maximum Input Current @208V(2):9Adc
• Power Factor: 1, adjustable -0.9 to 0.9
• Maximum DC Power: 6000W
