Description

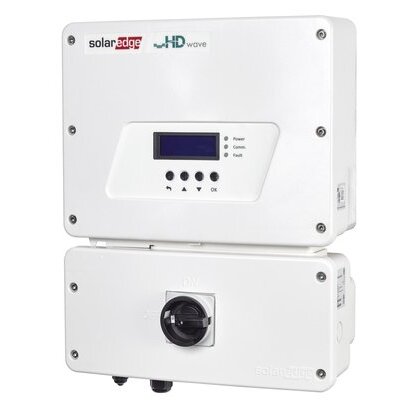

SolarEdge 3.8 kW HD-Wave Home Hub Inverter
Take complete control of your residential solar and energy storage with the SolarEdge SE3800H-US000NNU2 Home Hub Inverter. Designed with advanced HD-Wave technology, this 3.8 kW single-phase inverter acts as the brain of your home energy system. It efficiently converts DC power from your solar panels into usable AC power for your home while seamlessly integrating with battery backup systems.
One of the most powerful features of the SE3800H-US is its 200% DC oversizing capability. This allows you to connect up to 7,600 W of solar panels to a 3,800 W inverter. By oversizing your array, you can capture more solar energy during early mornings, late afternoons, and cloudy days to maximize your total power production.
Specifications:
- Model: SE3800H-US
- Rated AC Power: 3,800 W @ 240 V / 3,300 W @ 208 V
- Maximum DC Input Voltage: 480 VDC
- Maximum PV Input Power: 7,600 W @ 240 V / 6,600 W @ 208 V
- Maximum Continuous AC Output Current: 16 A
- Maximum Efficiency: 99.2%
- Battery: SolarEdge Home Battery 400V
- Battery Ports: 2
- Maximum Battery Current per Port: 40 A
-
Resources
Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
