Description

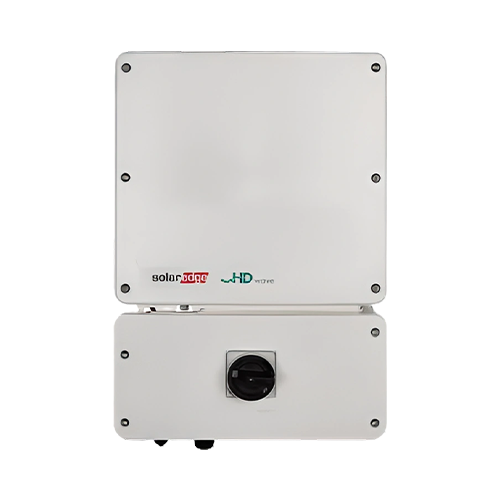

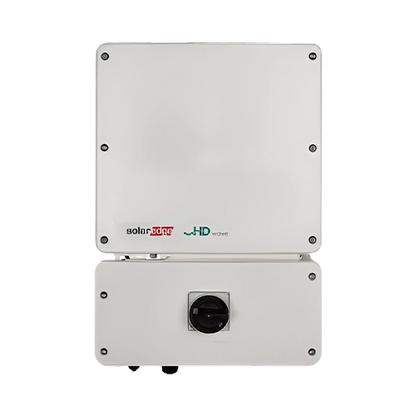

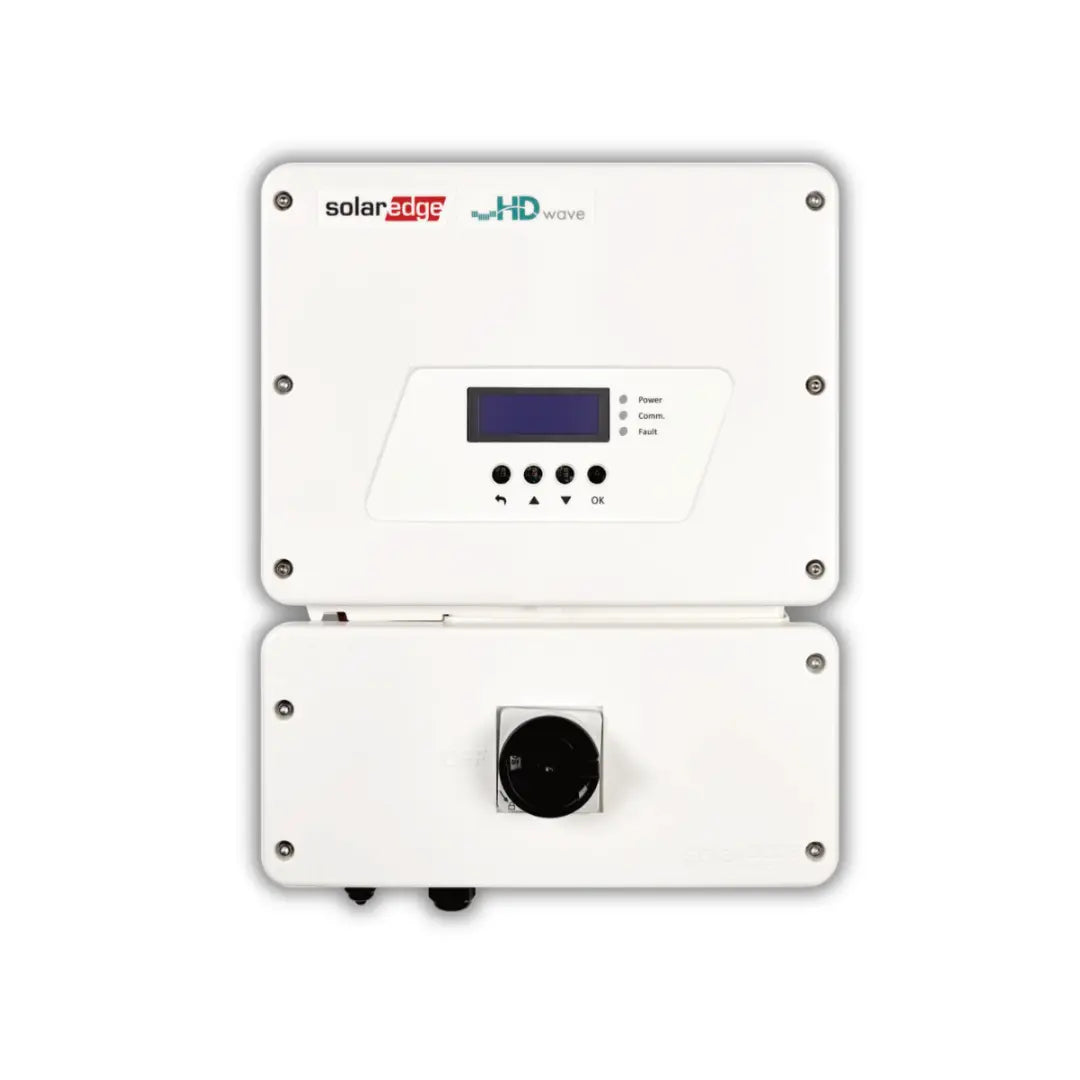

SolarEdge Single Phase Inverter with HD-Wave Technology, 3.8kW, Inverter with SetApp configuration
The SolarEdge SE3800H-US000BNU4 single phase inverters now have a smart new commissioning method that is done directly through a smartphone using their intuitive SetApp mobile application. Inverter commissioning has never been so easy. All the information you need is in the palm of your hand so the display screen is no longer necessary! Download the SetApp application on your mobile device today.
Upgrade your home with a reliable Solar String Inverter for efficient, dependable solar power:
- Built-in Module-Level Monitoring
- Indoor and Outdoor Installation
- Less Heat and High Reliability Without Any Electrolytic Capacitors
Technical Specifications:
- Technology: Single Phase String Inverter
- Dimensions: 17.70 x 14.60 x 6.80 inches
- Weight: 22.00 lbs
- Noise: < 25dBA
- Cooling: Natural Convection
- AC Output Conduit Size: 0.75-1" Conduit / 14-6 AWG
- DC Output Conduit Size: 0.75-1" Conduit / 14-6 AWG
- Protection Rating: NEMA 4X (Inverter with Safety Switch)
- Rated AC Power Output: 3800VA @240V; 3300 @208V
- Maximum AC Power Output: 3800VA @240V; 3300 @208V
- AC Output Voltage @240V: Minimum: 211VAC; Nominal: 240VAC; and Maximum: 264VAC
- AC Output Voltage @208V: Minimum: 183VAC; Nominal: 208VAC; and Maximum: 229VAC
- AC Frequency: Minimum: 59.30Hz; Nominal: 60.00Hz; and Maximum: 60.50Hz
- Maximum Continuous Output Current @240V: 16.00 Amps
- UMaximum Continuous Output Current @208V: 16.00 Amps
- GFDI Threshold: 1
- Maximum DC Power @240V: 5900 Watts
- Maximum DC Power @208V: 5100 Wats
- Transformer-Less Ungrounded: Yes
- Maximum Input Voltage: 480VDC
- Nominal DC Input Voltage: 380VDC
- Maximum Input Current @240V: Maximum Input Current @208V: 9.00ADC10.50ADC
- Maximum Input Short Circuit Current: 45ADC
- Reverse-Polarity Protection: Yes
- Ground-Fault Isolation Detection: 600kΩ Sensitivity
- Maximum Inverter Efficiency: 99.2%
- CEC Weighted Efficiency: 99%
- Night-Time Power Consumption: < 2.5 Watts
-
Resources
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
✔️ Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
