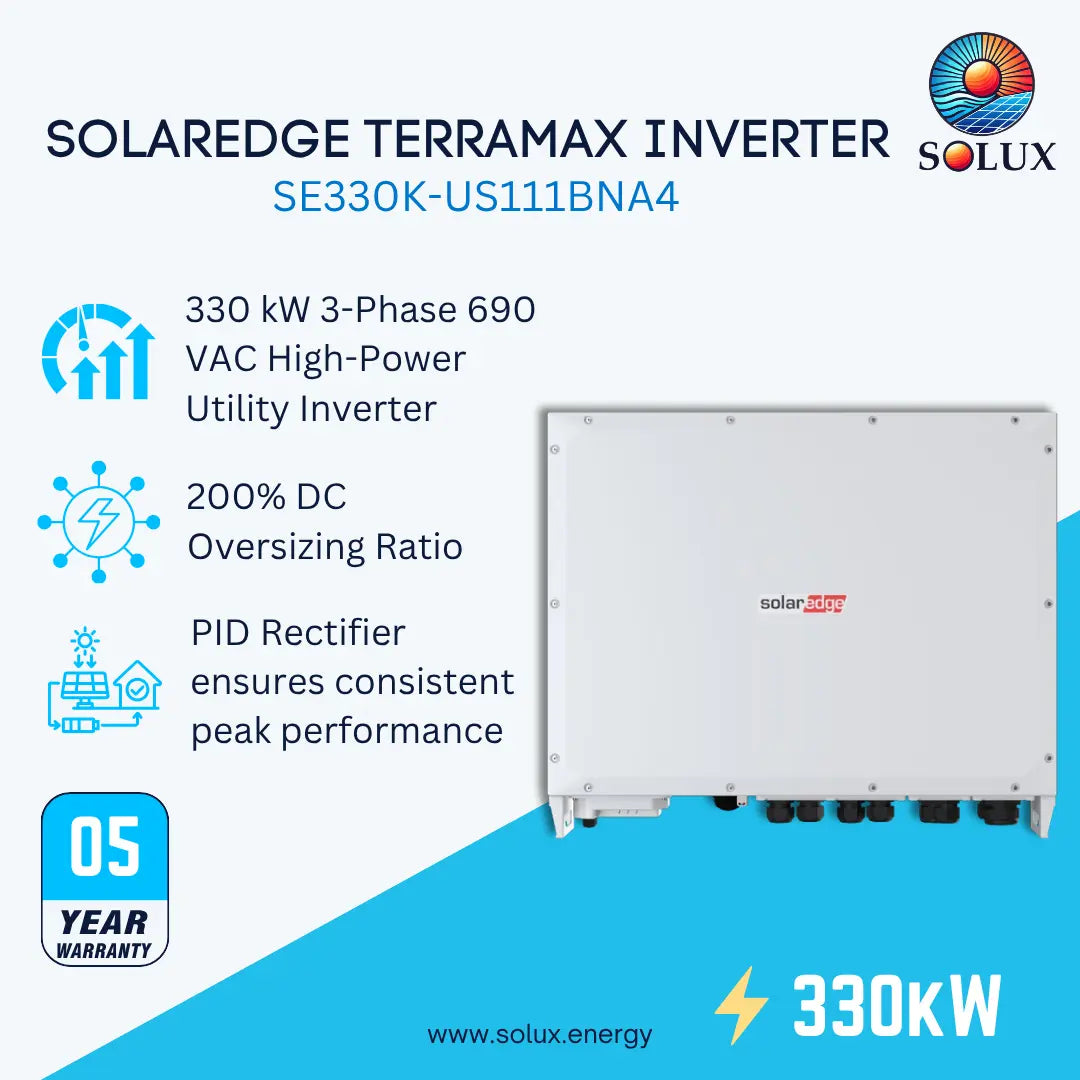

SolarEdge SE330K-US111BNA4 TerraMax 330kW 690V Three Phase Inverter with Synergy Technology

SolarEdge TerraMax 330kW 690V Three-Phase Inverter

The SolarEdge TerraMax SE330K-US111BNA4 is a high-power 330kW commercial inverter designed for large, 690V three-phase solar projects. Built to work directly with SolarEdge H1300 Power Optimizers, it helps you get the most electricity possible out of solar panels installed on steep hills, uneven land, farmlands, or floating arrays.

It comes equipped with a built-in DC Safety Switch and internal surge protection devices (SPD) to shield the unit from electrical spikes. It connects easily into utility-scale solar setups alongside commercial Solar Panels, ground-mount Racking systems, safety gear from our Electrical collection, and commercial Batteries.

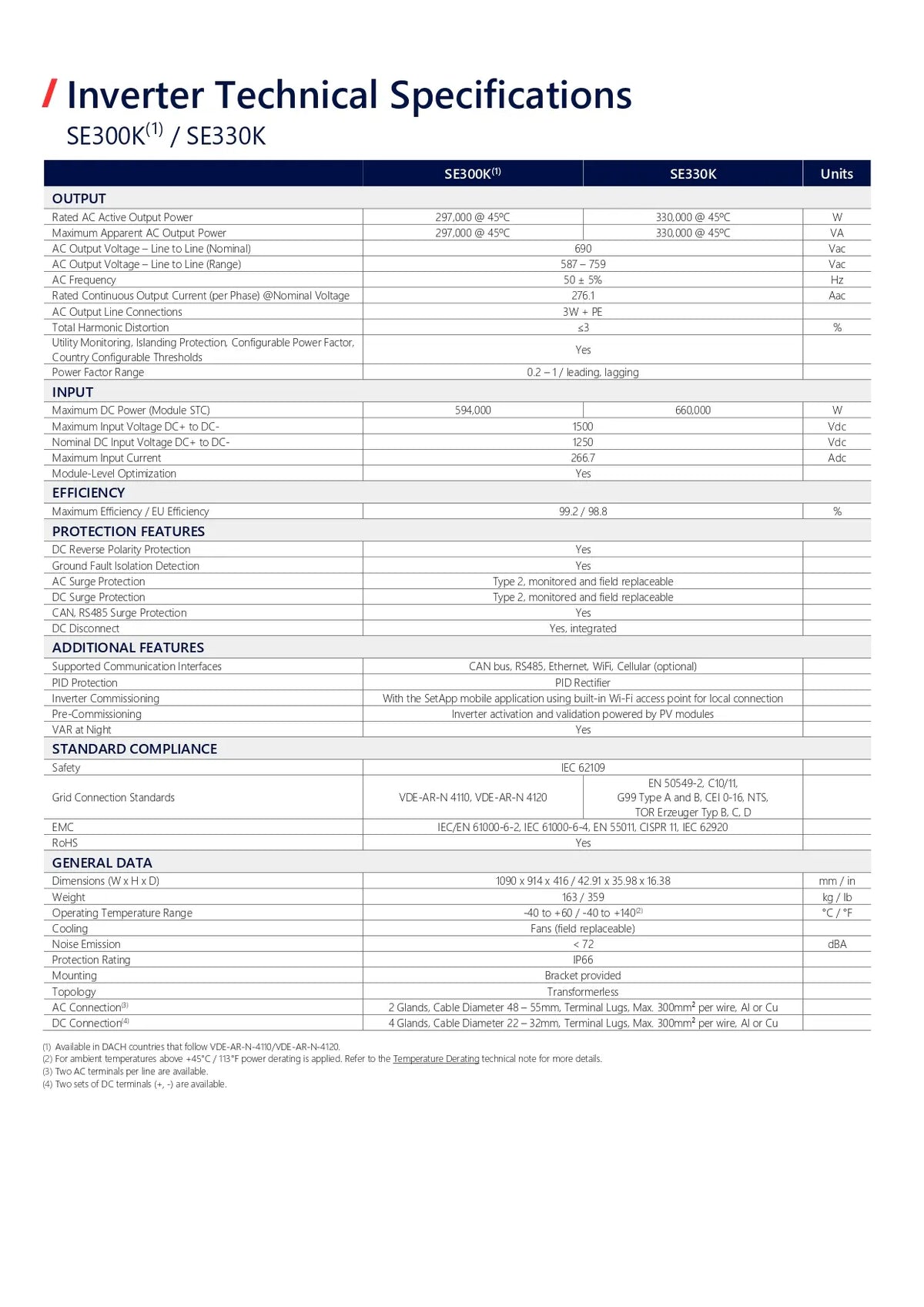

Specifications:

• Rated AC Active Output Power: 297,000 @ 45ºC W
• Maximum DC Power (Module STC): 594,000 W
• Maximum Efficiency / EU Efficiency: 99.2 / 98.8 %
• Safety: IEC 62109
• Dimensions (W x H x D): 1090 x 914 x 416 / 42.91 x 35.98 x 16.38 mm / in
• Weight: 163 / 359 kg / lb
• Integrated DC Disconnect
• Supported Communication Interfaces: CAN bus, RS485, Ethernet, WiFi, Cellular (optional)
• DC-Optimized technology boosts energy production by up to 6% over a 20-year lifespan*
• 200% DC oversizing extends energy production periods
• PID Rectifier ensures consistent peak performance
