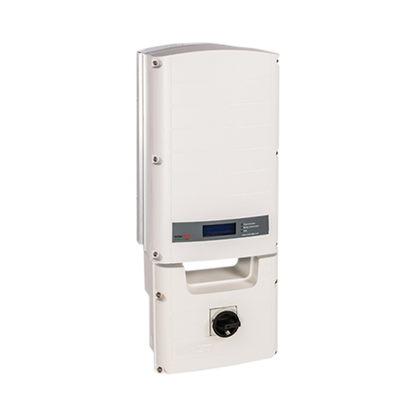

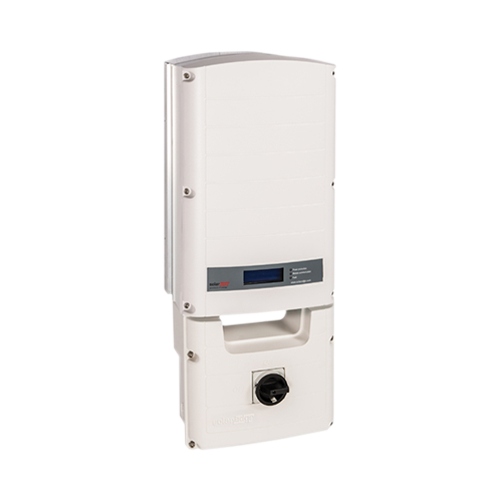

SolarEdge 14.4 kW Commercial 3-Phase Inverter (208V)
Maximize power production on your commercial solar projects with the SolarEdge SE14.4K-USR28NNU4. Designed specifically for 208V 3-phase commercial electrical grids, this 14.4 kW string inverter converts the DC energy from your solar panels into usable AC power with an exceptional 97% CEC weighted efficiency.
Because it is built to work exclusively with SolarEdge Power Optimizers, this inverter handles the heavy lifting of converting power while the optimizers handle module-level tracking. This split-design allows the inverter to run cooler, last longer, and support up to 19.4 kW of DC solar panel input, letting you safely oversize your array to capture more power during early mornings and late afternoons.
Specifications:
- Manufacturer: SolarEdge
- Model: SE14.4K-USR28NNU4 / SE14.4KUS
- Product type: Commercial 3-phase inverter
- Rated AC power: 14,400 VA / 14.4 kW
- Maximum DC power: 19.4 kW
- Maximum AC output current: 40 A per phase
- Efficiency: 97% CEC weighted
- Frequency: 60 Hz
- DC inputs: 3 pairs
- Protection: NEMA 3R
- Dimensions: approximately 540 × 315 × 260 mm
- Communications: RS485, Ethernet; ZigBee optional
- Grid: 208 V, three-phase
-
Resources

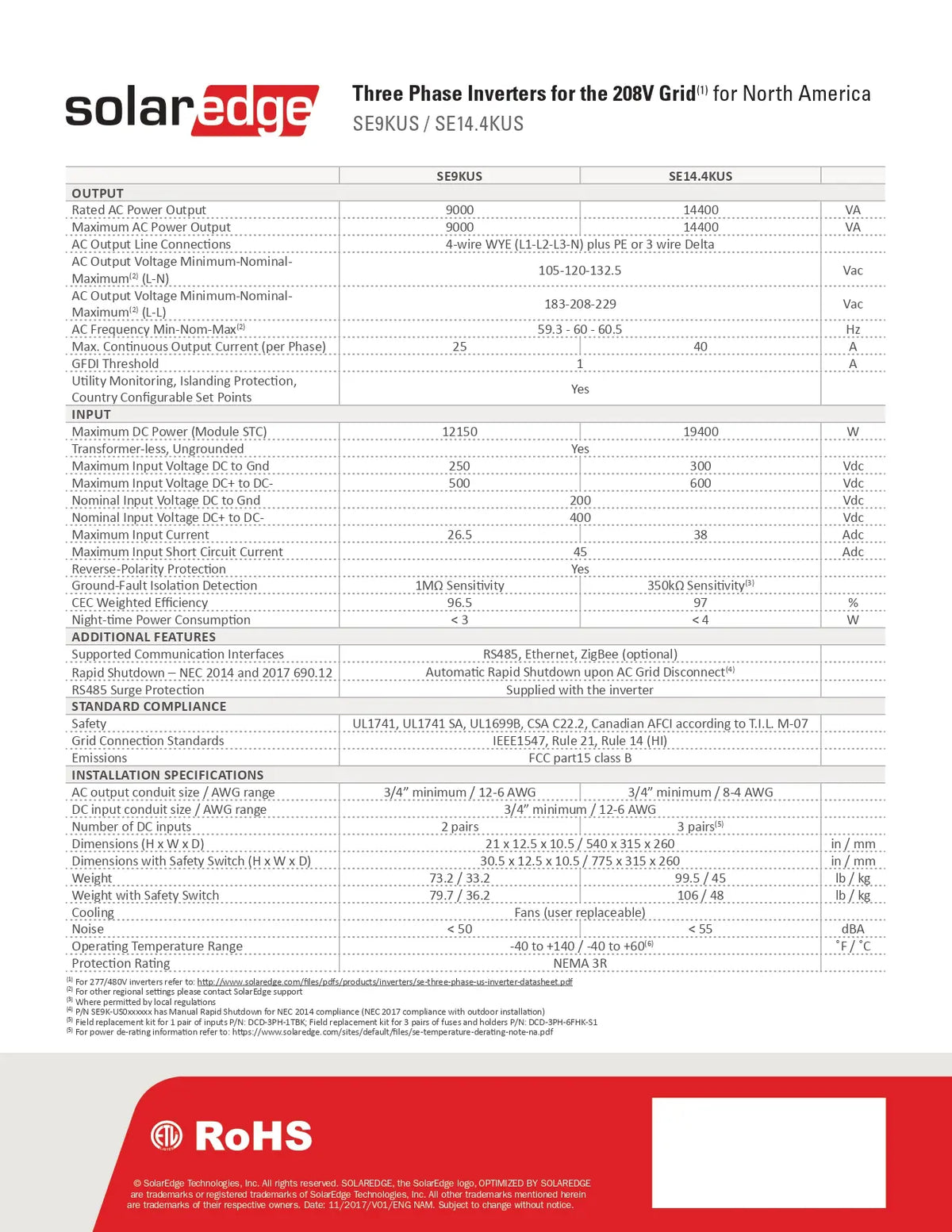

Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
