Description

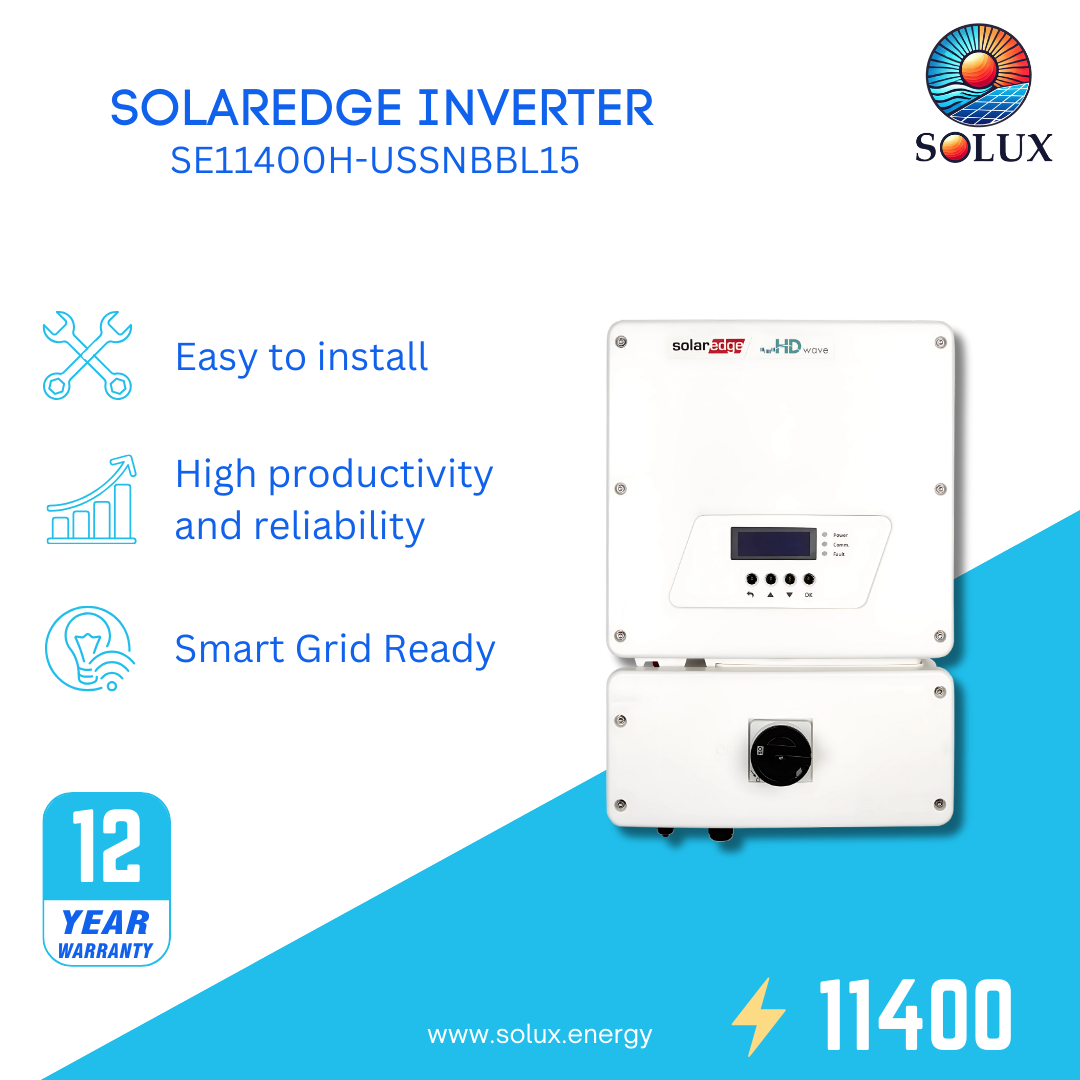

SolarEdge Energy Hub Inverter with HD-Wave Technology SE11400H-USSNBBL15
Specifically designed to work with power optimizers.
Record-breaking efficiency
Fixed voltage inverter for longer strings
Integrated arcfault protection and rapid shutdown for NEC 2014 and 2017, per article 690.11 and 690.12
UL1741 SA certified, for CPUC Rule 21 grid compliance
Extremely small
Built-in module-level monitoring
Outdoor and installation
Optional: Revenue grade date, ANSI C12.20 Class 0.5 (0.5% accuracy)Technical Specifications
- Rated AC Power : 11400 @ 240V / 10000 @ 208V
- Max AC Power: 11400 @ 240V / 10000 @ 208V
- Max DC Power 240V: 17650W
- Max DC Power 208V: 15500W
- Max Input Current @ 240V: 30.5Adc
- Max Input Current @ 208V: 27
-
Downloads

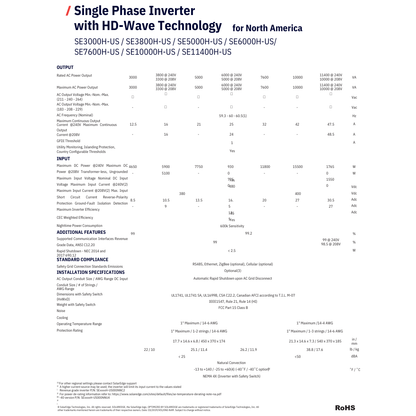

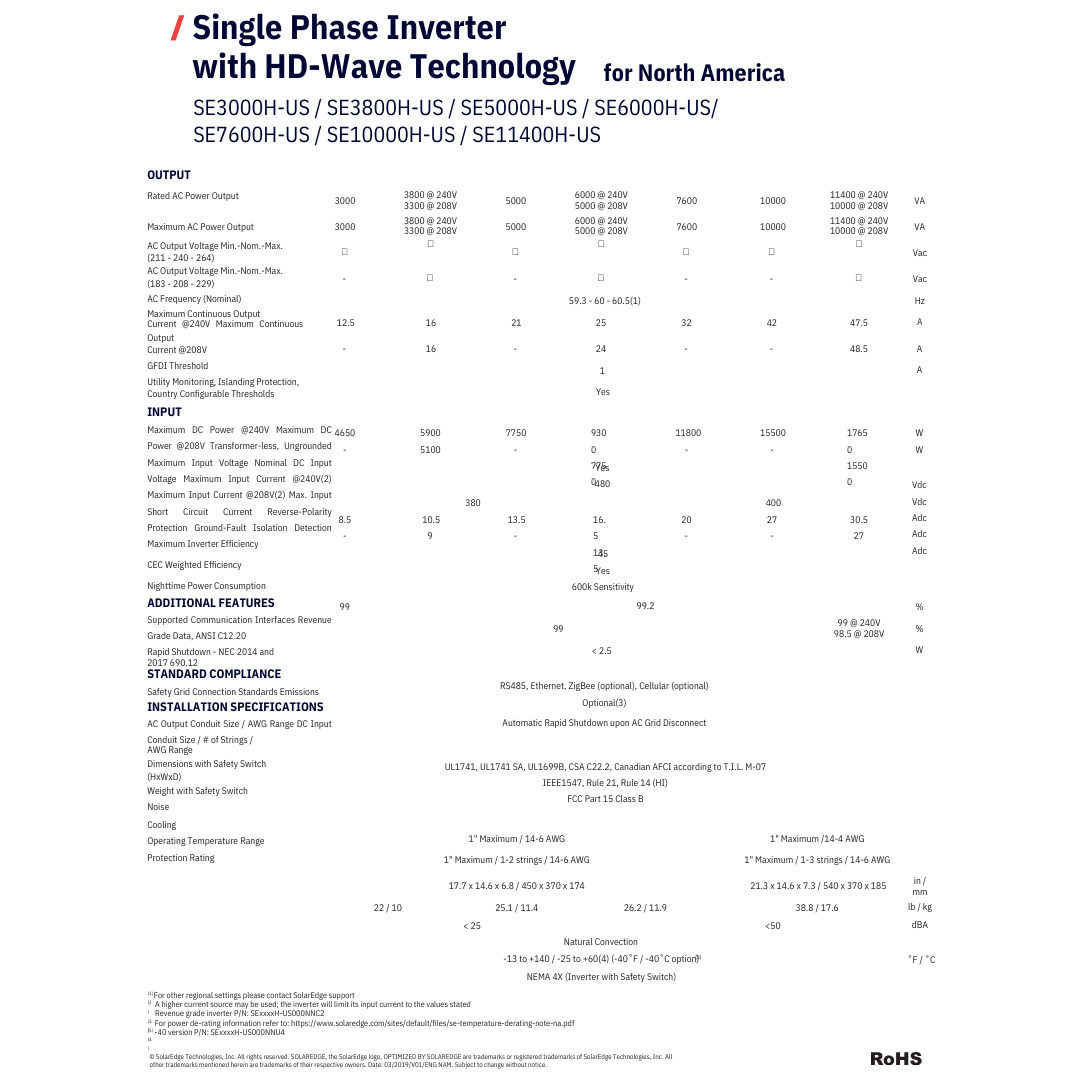

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
12 Years Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
