Description

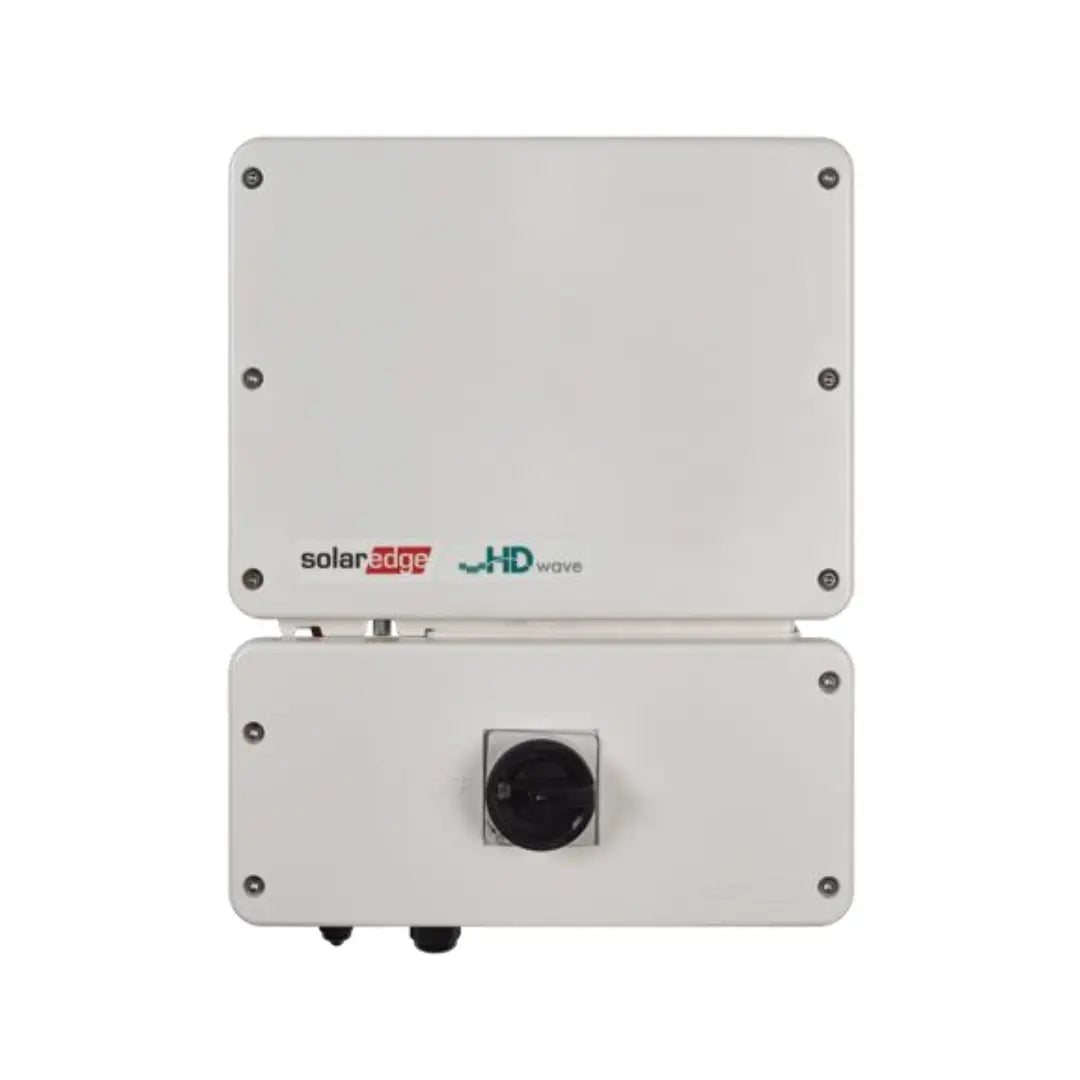

SolarEdge Home Wave 11.4kW Single-Phase Inverter
The SolarEdge SE11400H-USMNUBL15 is an 11.4 kW single-phase solar inverter built for home installations. Designed to work with SolarEdge power optimizers, it manages large rooftop solar setups with up to 17,650 W of solar panel capacity. It connects directly to standard 208V or 240V home electrical grids, converting solar energy into usable AC power for household appliances, battery storage, and smart energy devices.

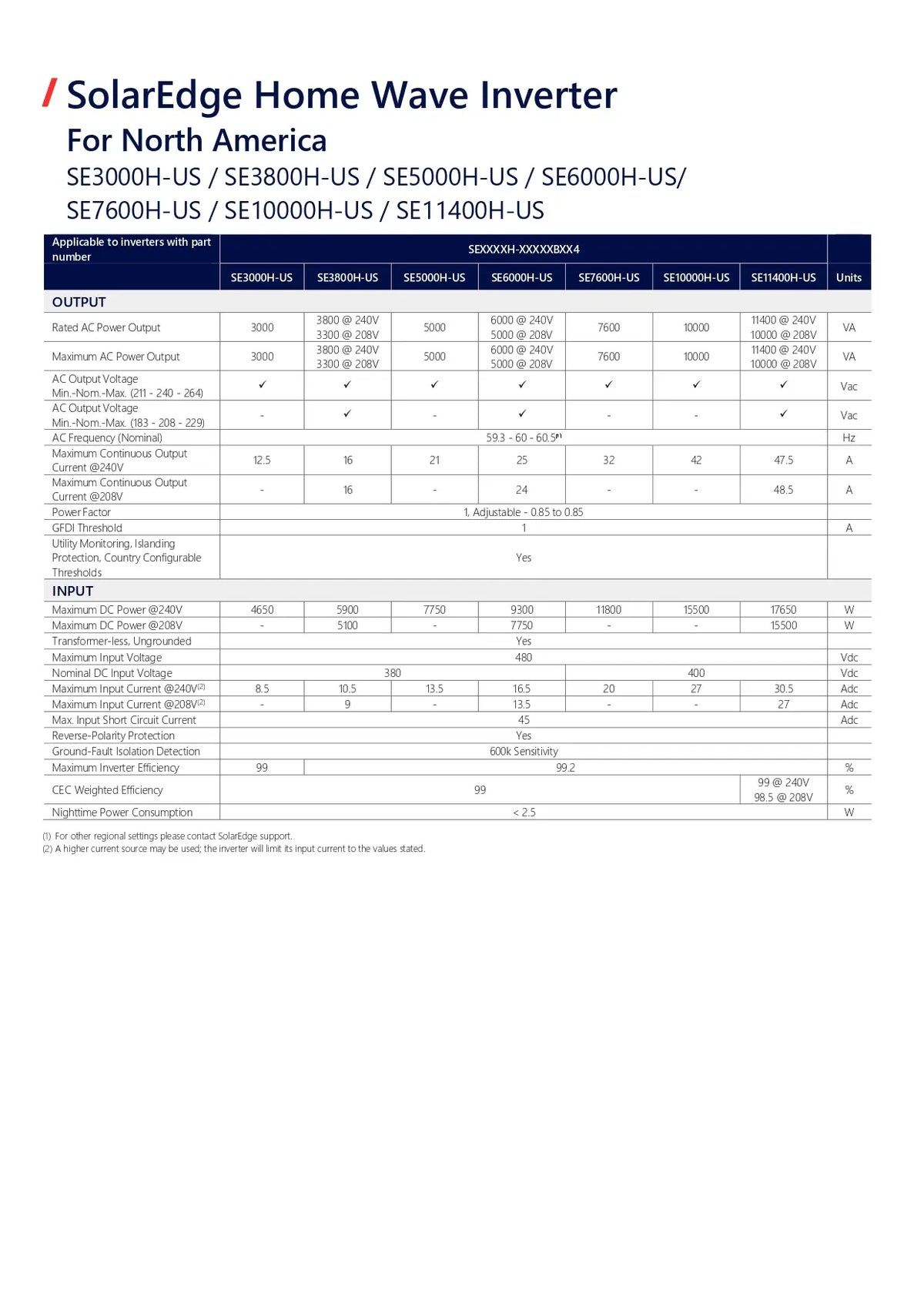

Specifications:
- Model: SE11400H-USMNUBL15
- AC Output: 11,400 W @ 240 V
- AC Voltage: 208/240 V
- Maximum DC Input: 480 VDC
- Maximum DC Power: 17,650 W @ 240 V
- Maximum AC Output Current: 47.5 A @ 240 V
- Dimensions: 21.06 × 14.6 × 8.2 in
- Weight: 44.9 lbs (20.3 kg)
-
Resources
Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ Download Quick Installation Guide
Warranty
✔️ Download Warranty
