Description
Single-Phase String Inverter, Transformless, 240V
Upgrade your home with a reliable Solar String Inverter for efficient, dependable solar power.

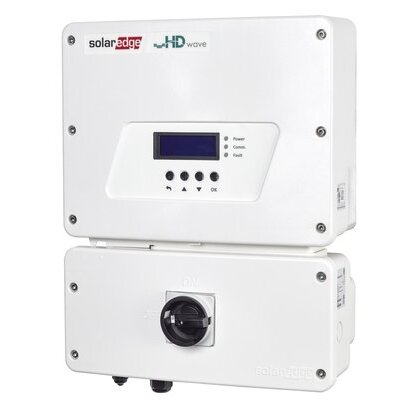

The SE11400H-US000NNU2 is a SolarEdge 11.4 kW single-phase HD-Wave string inverter. It converts DC electricity from solar panels into AC electricity for use in a residential PV system and works with SolarEdge power optimizers. SolarEdge identifies this exact part number as an 11.4 kW single-phase HD-Wave inverter.
Specifications:
- Model: SE11400H-US000NNU2
- Type: Single-Phase String Inverter
- Rated AC Power: 11,400 W
- AC Voltage: 208/240 V
- Maximum DC Input Voltage: 480 V
- Nominal DC Input Voltage: 380 V
- Maximum AC Current: 47.5 A @ 240 V / 48.5 A @ 208 V
- Efficiency: up to approximately 99%
- Enclosure: NEMA 4
- Communication: RS485, Ethernet, optional Wi-Fi/cellula
-
Resources

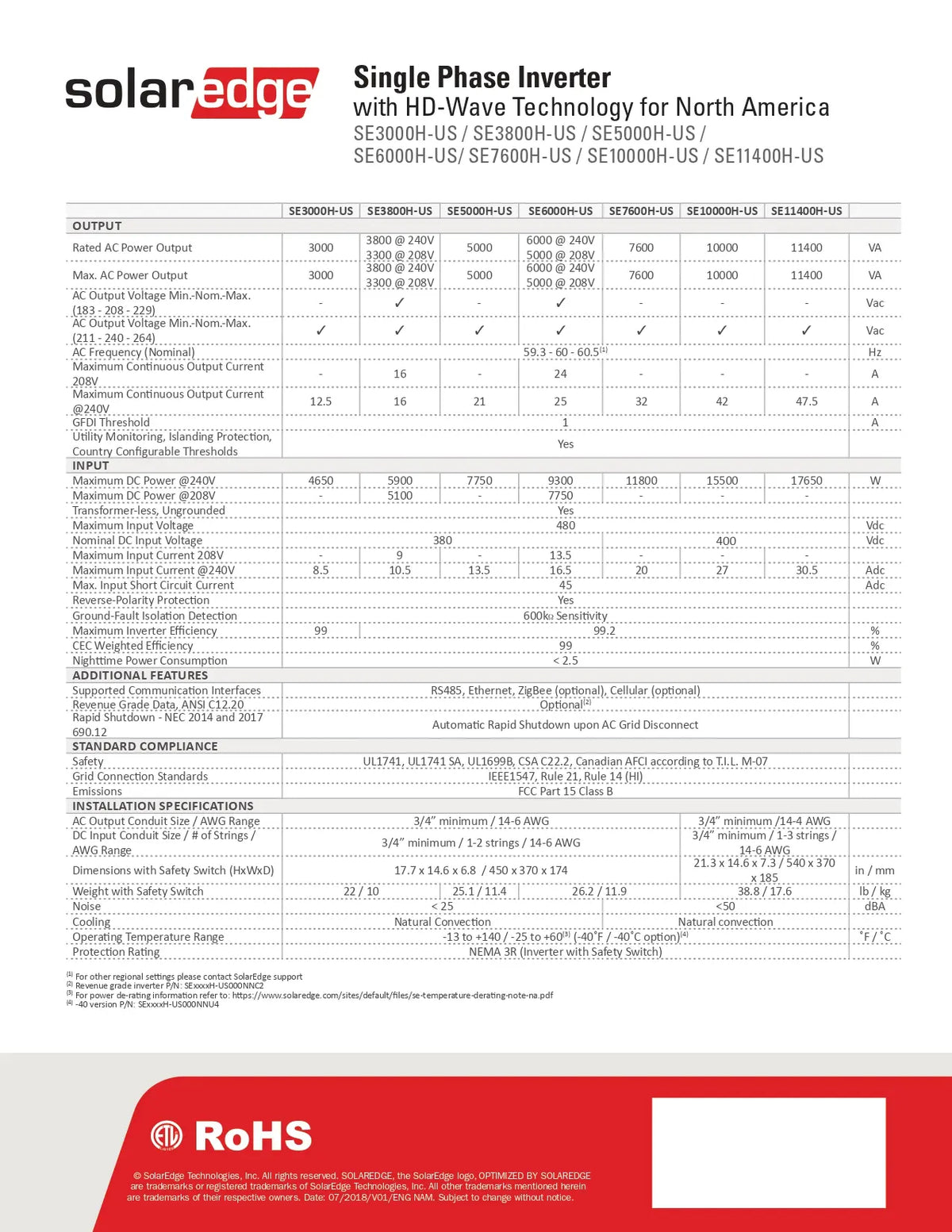

Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
