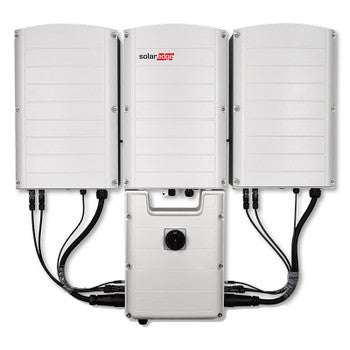

SolarEdge SE100K-USRP0BNU4 100kW Three Phase Inverter with Synergy Unit - Clearance

$1,480.00 USD
$1,480.00 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

The SolarEdge SE100K-USRP0BNU4 is a 100kW commercial three-phase primary inverter. It uses a modular design with Synergy Technology to simplify installation, combining a primary unit with two secondary units (purchased separately) to form a complete 100kW system. The inverter combines sophisticated digital control with an efficient power conversion architecture to achieve superior energy harvesting and reliability. It is specifically designed to work with SolarEdge power optimizers.

Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

View Product Details
  • Description

    The SolarEdge SE100K-USRP0BNU4 is a 100kW commercial three-phase primary inverter. It uses a modular design with Synergy Technology to simplify installation, combining a primary unit with two secondary units (purchased separately) to form a complete 100kW system. The inverter combines sophisticated digital control with an efficient power conversion architecture to achieve superior energy harvesting and reliability. It is specifically designed to work with SolarEdge power optimizers.

    Technical Specifications:

    • Manufacturer Part Number: SE100K-USRP0BNU4
    • Power Output: 100,000 Watts (100 kW)
    • Voltage: Nominal 277/480VAC
    • Max DC Power: 135,000 Watts (at STC)
    • Max DC Input Voltage: 1000 VDC
    • Dimensions (Primary Unit): 37.00 x 12.50 x 10.50 inches
    • Weight (Primary Unit): 105.8 lbs
    • Required Components: Requires two secondary inverter units to function as a complete 100kW system.
    • Cooling: User-replaceable fans
    • Noise: < 60 dBA
    • Certifications: UL-1741-SA (Rule-21), UL, IEEE, FCC, CSA
    • Warranty: 12-Year Limited Product Warranty
  • Downloads

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No quick installation guide available. Email support@solux.energy for file request.


Download Spec Sheet

It uses a modular design with Synergy Technology to simplify installation, combining a primary unit with two secondary units (purchased separately) to form a complete 100kW system
