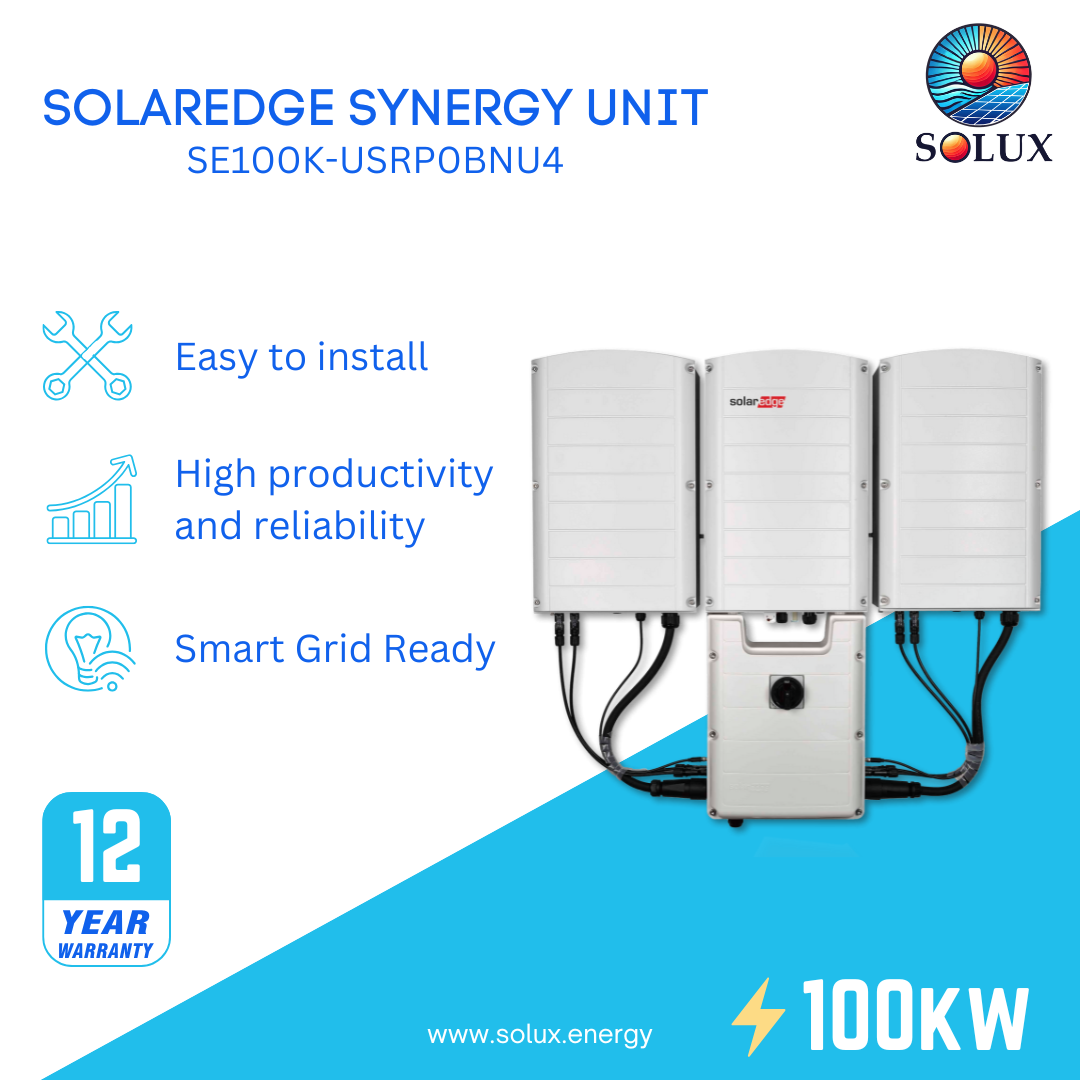

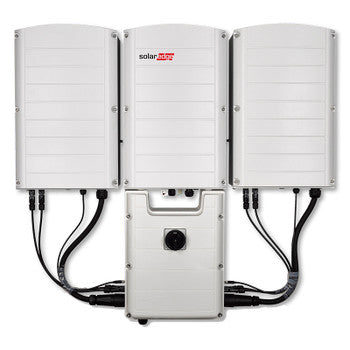

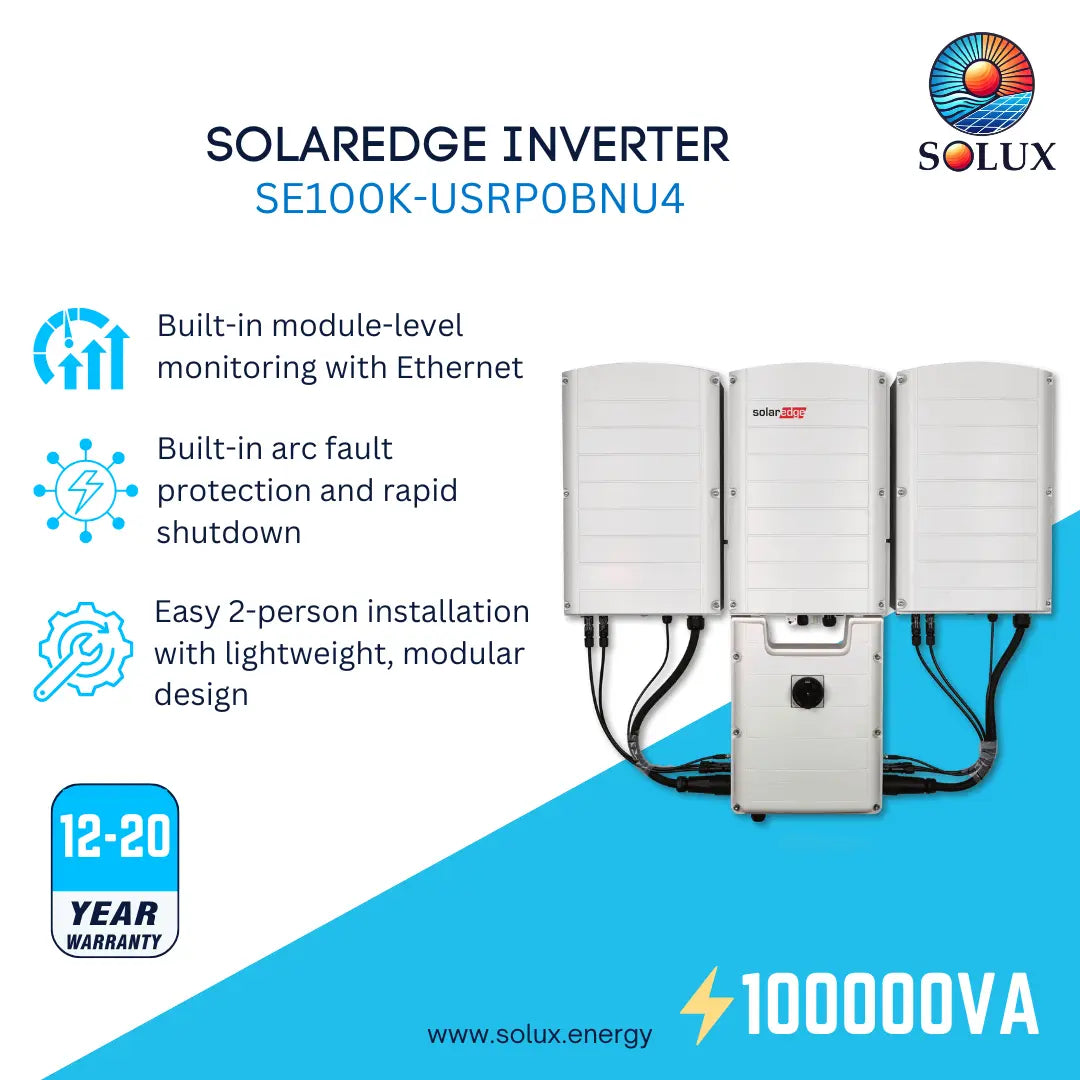

SolarEdge SE100K-USRP0BNU4 100kW Three Phase Inverter with Synergy Unit - Clearance

The SolarEdge SE100K-USRP0BNU4 is a 100kW commercial three-phase primary inverter. It uses a modular design with Synergy Technology to simplify installation, combining a primary unit with two secondary units (purchased separately) to form a complete 100kW system. The inverter combines sophisticated digital control with an efficient power conversion architecture to achieve superior energy harvesting and reliability. It is specifically designed to work with SolarEdge power optimizers.

Technical Specifications:

• Manufacturer Part Number: SE100K-USRP0BNU4
• Power Output: 100,000 Watts (100 kW)
• Voltage: Nominal 277/480VAC
• Max DC Power: 135,000 Watts (at STC)
• Max DC Input Voltage: 1000 VDC
• Dimensions (Primary Unit): 37.00 x 12.50 x 10.50 inches
• Weight (Primary Unit): 105.8 lbs
• Required Components: Requires two secondary inverter units to function as a complete 100kW system.
• Cooling: User-replaceable fans
• Noise: < 60 dBA
• Certifications: UL-1741-SA (Rule-21), UL, IEEE, FCC, CSA
• Warranty: 12-Year Limited Product Warranty
