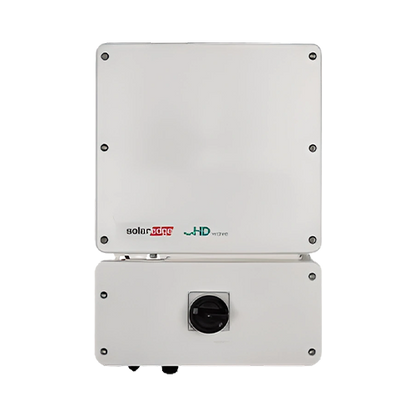

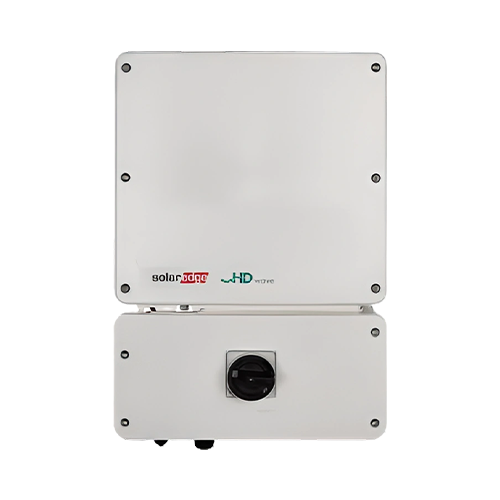

SolarEdge Single Phase Inverter with HD-Wave Technology, 10.0kW, Inverter with SetApp configuration

SolarEdge SE10000H-US000BNU4 10kW 240VAC Single Phase String Inverter w/ SetApp HD-Wave Technology

The SolarEdge single phase inverter with HD-Wave technology breaks the mold of traditional solar inverters. The single phase inverter is specifically designed to work with SolarEdge power optimizers. It comes with a built-in DC safety switch, integrated rapid shutdown, and features a standard 12-year warranty extendable to 20 or 25 years.

Technical Benefits

• Specifically designed to work with SolarEdge power optimizers
• 3kW to 11.4kW range
• 99% weighted efficiency (33%-50% less losses than the market standard)
• Small, lightweight, and easy to install
• Up to 155% oversizing allowed
• High reliability due to lower heat dissipation
• Faster inverter commissioning using your smartphone with SolarEdge SetApp
• Standard 12-year warranty (extendable to 20 or 25 years)
• Built-in module-level monitoring
• Internet communication via Ethernet or wireless connectivity (using optional ZigBee or cellular plug-ins)
• NEMA 4X - suitable for outdoor and indoor installations
• Integrated arc fault protection and rapid shutdown for NEC 2014 and 2017, 690.11 and 690.12
• Optional: Faster installations with built-in consumption metering (1% accuracy) and production revenue grade metering (0.5% accuracy, ANSI C12.20)
• All inverters are UL1741 SA certified, for CPUC Rule 21 grid compliance
