  • A promotional graphic for the Solux Solaredge Wind Velocity Sensor SE1000-SEN-WIND-S1, showing the wind vane unit on the right and product features listed on the left against a white and blue background.
  • SE1000-SEN-WIND-S1 wind measuring device

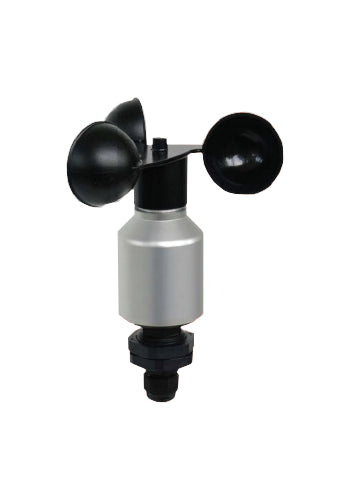

  • Single product image of solaredge wind velocity sensor with a silver cylindrical body and black cup anemometer blades.
1 3

Wind velocity sensor 4-20mA

$981.90 USD
$981.90 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Voltage: 4-20mA
✔️ Features: Supports Performance Ratio (PR) calculations and environmental analysis
✔️ Warranty: 5 years

It provides real-time wind speed data for environmental monitoring, helping calculate the site's Performance Ratio (PR) and supporting more accurate system performance analysis and diagnostics.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

rManufacturer's logo

  • Description

    Wind velocity sensor 4-20mA

    Easy installation and high compatibility.

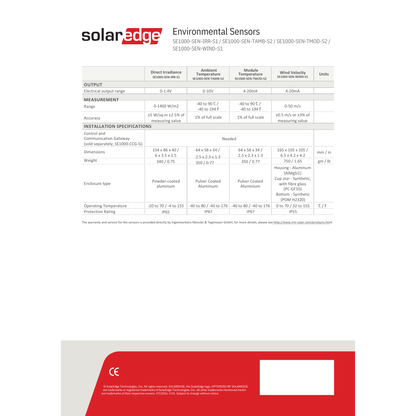

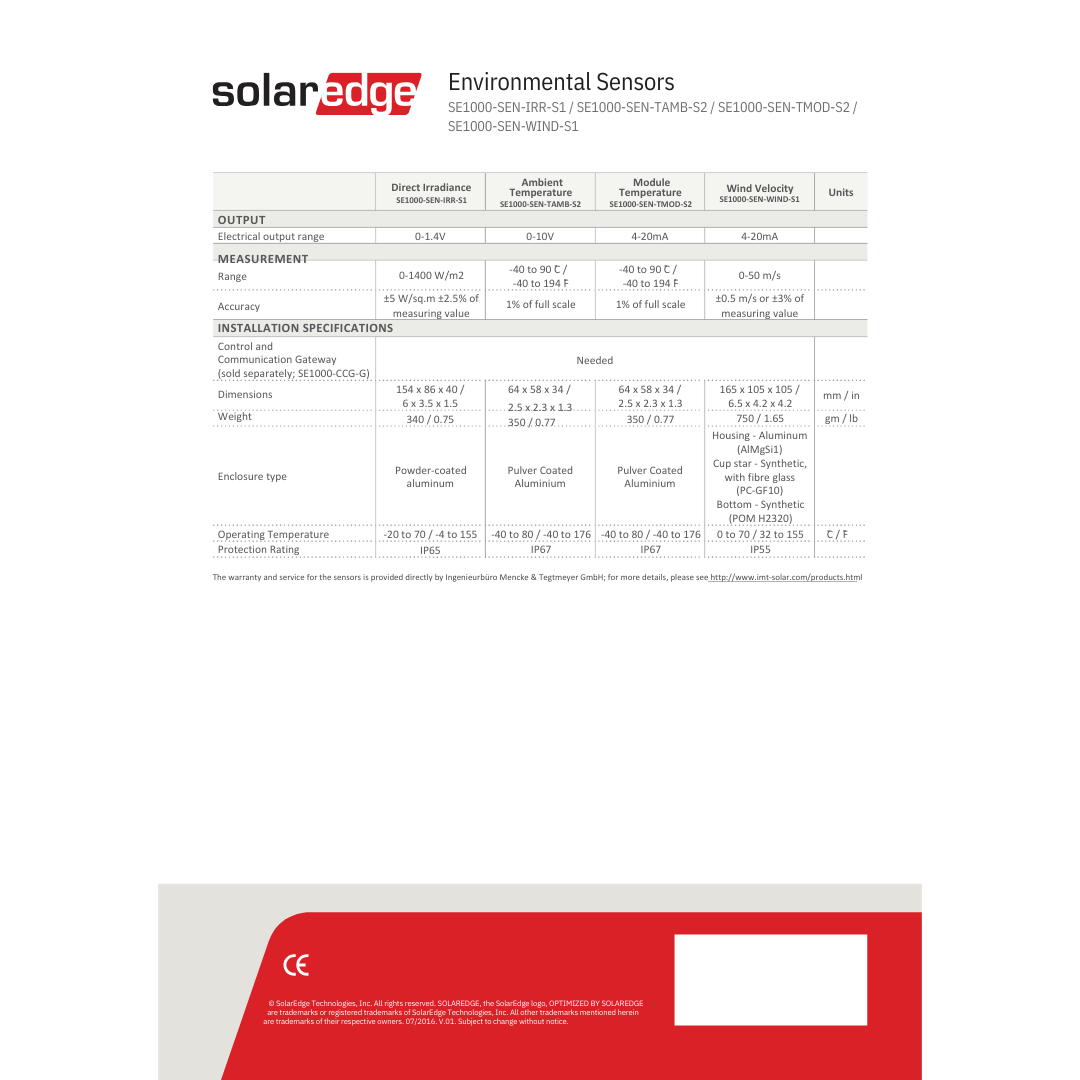

    Technical Specifications

    • Product Line: 5 Series
    • Dimensions: 10.25 x 6.50 x 10.00 inches
    • Weight: 1.65 lbs
    • Electrical Output Range: 4-20mA
    • Range: 0-50m/s
    • Accuracy: ±0.5 m/s or ±3% of Measuring Value
    • Control Communication Gateway: Needed
    • Enclosure Type: Housing - Aluminum (AlMgSi1) Cup star - Synthetic, with fiber glass (PC-GF10) Bottom - Synthetic (POM H2320)
    • Protection Rating: IP55
    • Operating Temperature: -0 to +75°C

  • Resources

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No installation guide available. Email support@solux.energy for file request.

    Warranty

    ✔️ Warranty

Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
