Module temperature sensor 4-20mA

$909.04 USD

$909.04 USD

Sale Sold out

Shipping calculated at checkout.

Features / Description:

Connect environmental sensors to the SolarEdge Control and Communication Gateway for monitoring of your site.

Product variants

Quantity

Secure checkout with

Shipping & Returns Policy

Visit our Shipping Policy and Returns Policy page for further details

View Product Details

Description

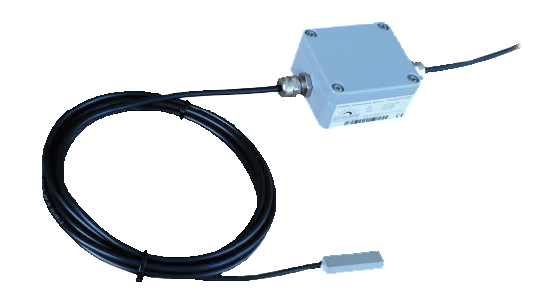

SolarEdge Module Temperature Sensor - SE1000-SEN-TMOD-S2

Used to calculate site performance ratio. Irradiance, temperature and wind measurements.

Technical Specifications
- Product Line: SE Series
- Technology: Sensor
- Dimensions: 2.50 x 2.30 x 1.30 inches
- Weight: 0.77 lbs
- Enclosure Type: Pulver Coated Aluminium
- Operating Temperature: -40 to +80°C
- Protection Rating: IP67
- Control and Communication Gateway: Needed | Sold Separately; SE1000-CCG-G
- Electrical Output Range: 4-20mA
- Range: -40°C to +90°C
- Accuracy: 1% of Full Scale
Downloads

Datasheet
✔️ Datasheet

Quick Installation Guide

No installation guide available. Email support@solux.energy for file request.

Warranty
✔️ Warranty

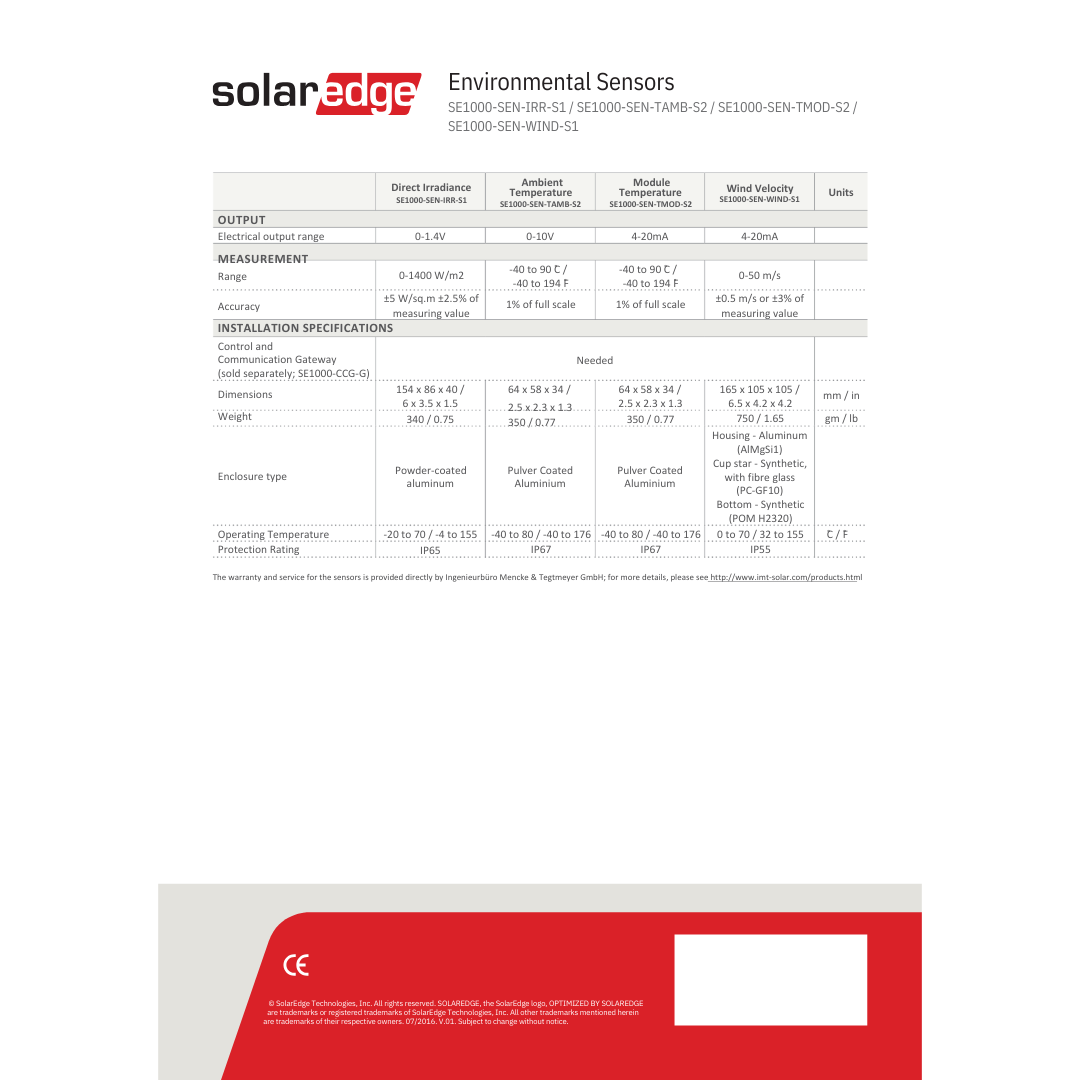

Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
