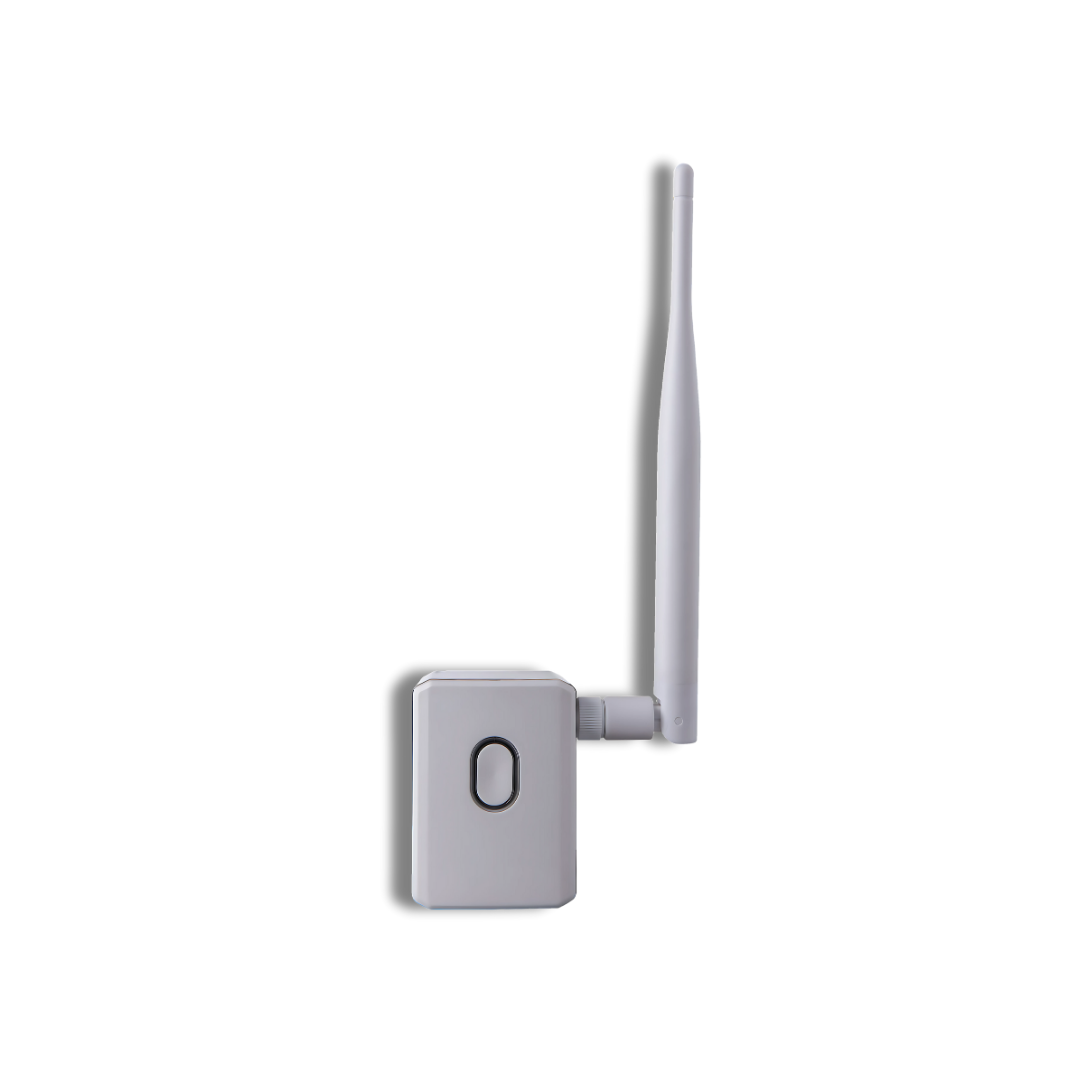

SolarEdge Wireless Gateway Repeater - SE-WFRPT-B-S1-NA
The SolarEdge Wireless Gateway Repeater - SE-WFRPT-B-S1-NA is used with the Wireless gateway, and connects SetApp enabled SolarEdge inverters to an Internet router. Up to two repeaters can be used with the Wireless Gateway.

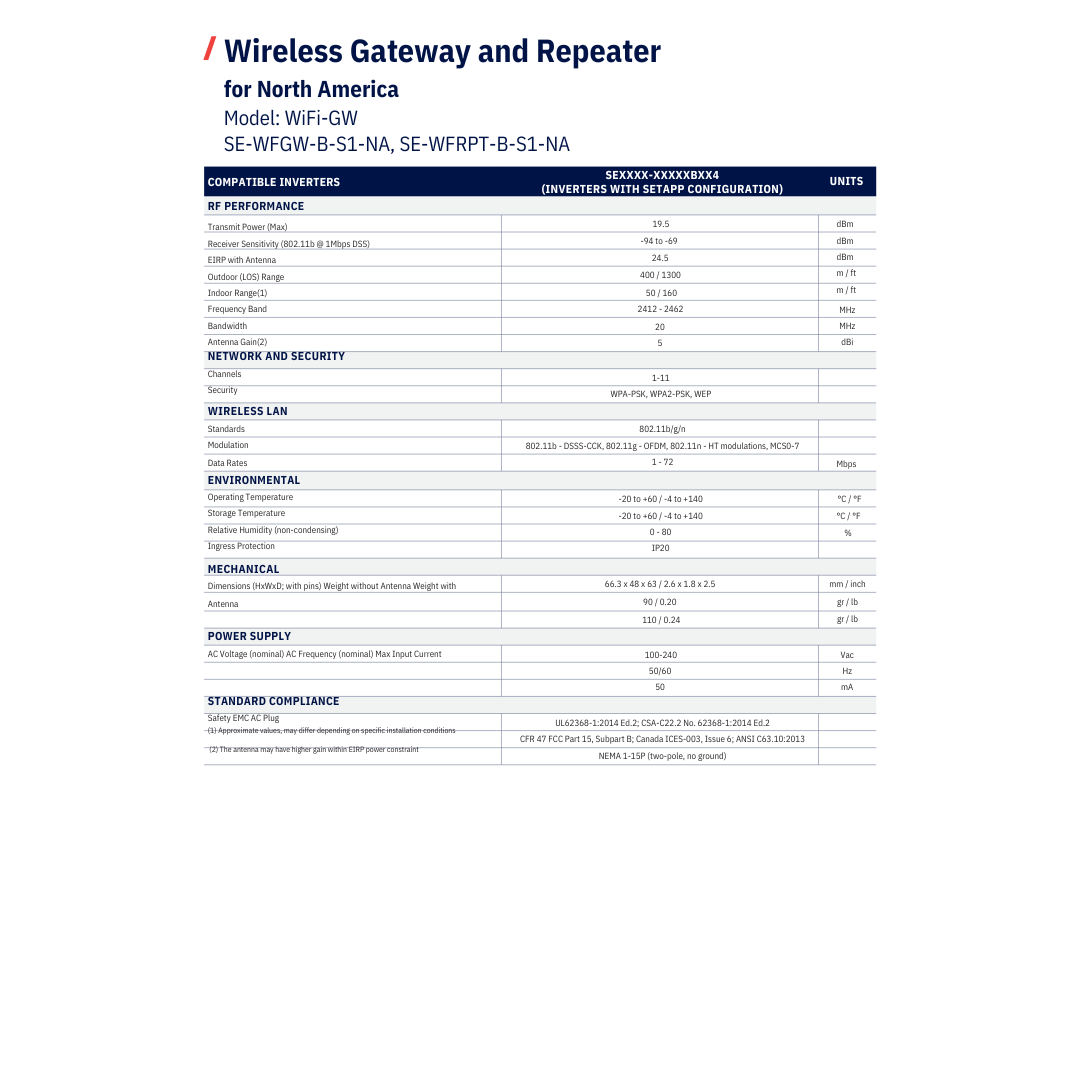

Technical Specifications:
- Transmit Power Max: 19.5 dBm
- Receiver Sensitivity (802.11b @ 1Mbps DSS): -94 to -69 dBm
- EIRP with Antenna: 24.5 dBm
- Outdoor (LOS) Range: 400 / 1300 m / ft
- Indoor Range: 50 / 160 m / ft
- Frequency Band: 2412 2462 MHz
- Frequency Band: 2412 2462 MHz
- Bandwith: 20 MHz
- Antenna Gain: 5dBi
- Channels: 1-11
- Security: WPA-PSK, WPA2-PSK,WEP
- Dimension (HxWxD; with pins): 663mm x 48mm x 63mm
- Weight with Antenna: 0.24lb
- AC Voltage Nominal: 100-240 Vac
- AC Frequency Nominal: 50/60Hz
- Max Input Current: 50 mA
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
