  • Promotional graphic for the Solaredge Wireless Gateway and Repeater, model SE-WFRPT-B-S1-NA. The image features a white rectangular device with a single antenna on the right, set against a split white and bright blue background with product features and the Solux brand logo.
  • SE-WFRPT-B-S1-NA wireless outdoor wifi range extender

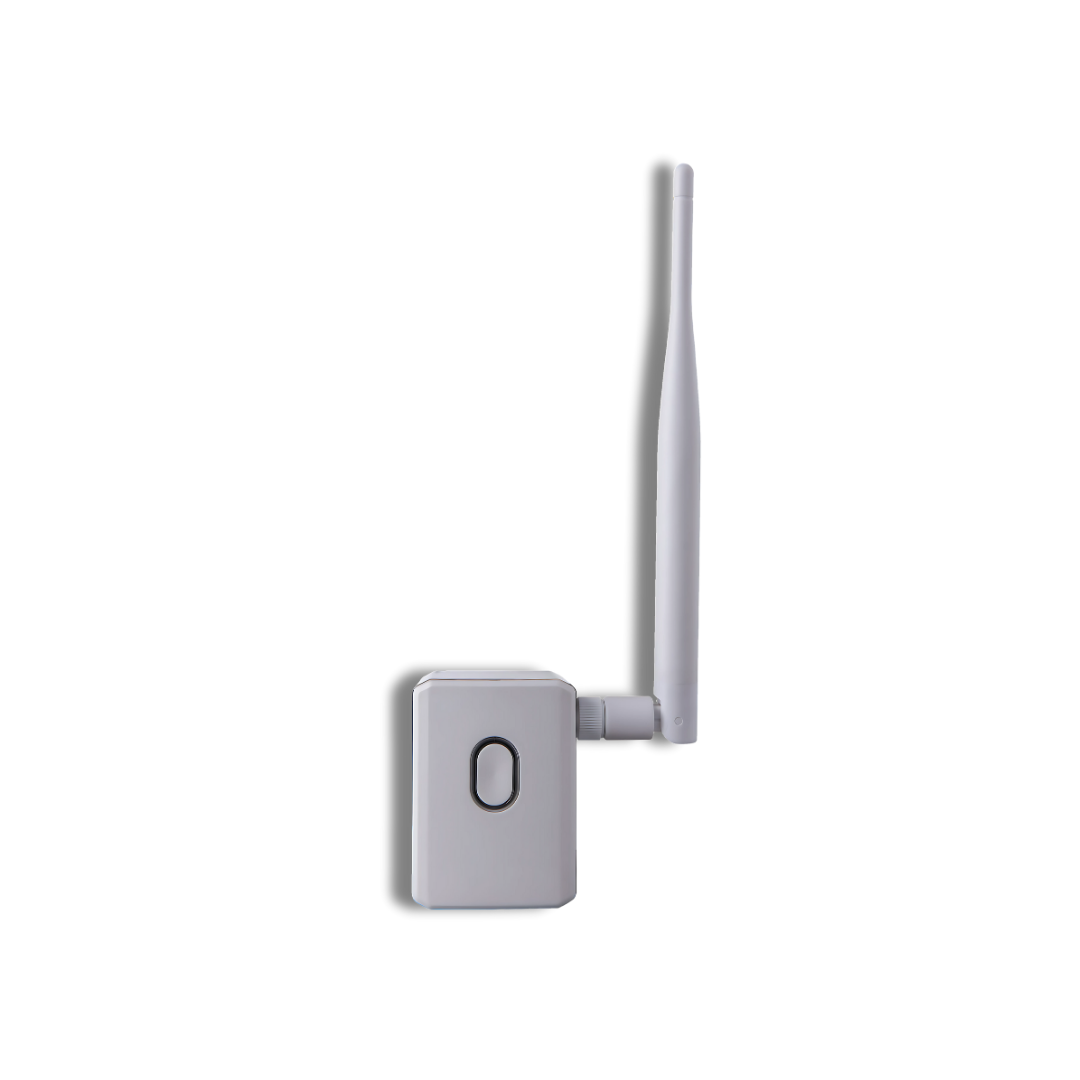

  • A gray SolarEdge Wireless Gateway Repeater with an antenna, designed for connecting inverters to an Internet router.
1 3

Wireless Repeater (MOQ : 1 Box of 30 pcs)

$132.39 USD
$132.39 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

✔️ Component Type: Wireless Network Range Extender / Communication Repeater Module
✔️ Manufacturer: SolarEdge
✔️ System Compatibility: Compatible with SolarEdge SetApp-enabled inverters used in conjunction with the SolarEdge Wireless Gateway (SE-WFGW-B-S1-NA)
✔️ Network Protocol: Wi-Fi (2.4 GHz dedicated communication network)
✔️ Function: Wirelessly extends signal range and strengthens connectivity between SolarEdge inverters and the Wireless Gateway without requiring Ethernet cables

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details
Manufacturer's Logo

Wireless Repeater (MOQ : 1 Box of 30 pcs)

The SolarEdge Wireless Gateway Repeater - SE-WFRPT-B-S1-NA is used with the Wireless gateway, and connects SetApp enabled SolarEdge inverters to an Internet router. Up to two repeaters can be used with the Wireless Gateway.

PRODUCT OVERVIEW

High-Range 2.4 GHz Wireless Gateway Module

Designed for reliable long-range wireless communication, this 2.4 GHz module delivers up to 19.5 dBm max transmit power and an effective EIRP of 24.5 dBm with its included 5 dBi high-gain antenna. Engineered for dual outdoor and indoor operation, it offers line-of-sight range up to 1,300 feet (400 m) and supports robust security protocols alongside universal AC power input for flexible deployment.

📡 2.4 GHz Frequency Band
📶 5 dBi High-Gain Antenna
🌲 1,300 ft Outdoor LOS Range
🔒 WPA/WPA2-PSK Security
⚡ 100-240V Universal AC

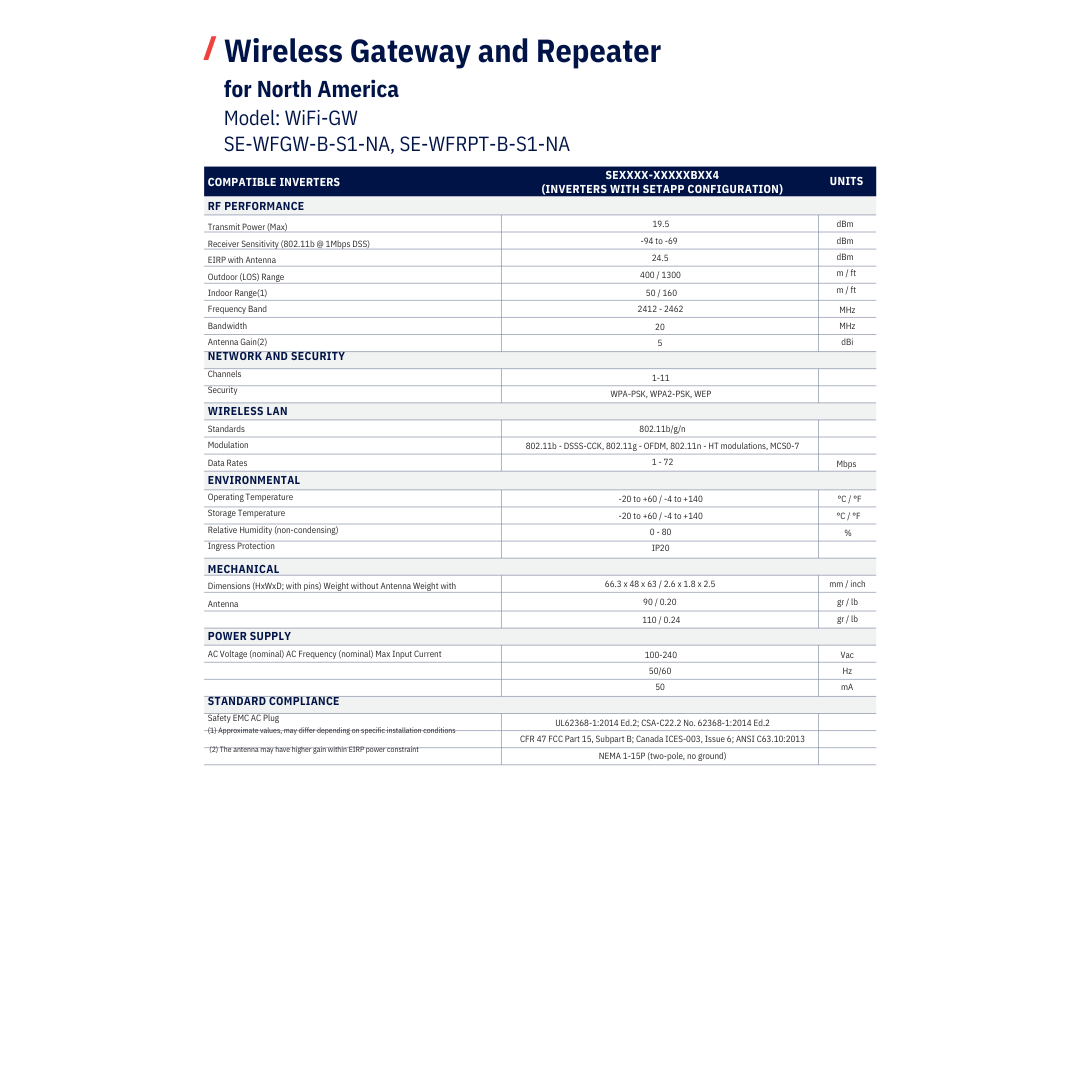

TECHNICAL SPECIFICATIONS

Max Transmit Power 19.5 dBm
EIRP (with Antenna) 24.5 dBm
Frequency Band 2412 – 2462 MHz (Ch 1-11)
Bandwidth 20 MHz
Receiver Sensitivity -94 to -69 dBm
Dimensions (H × W × D) 663 × 48 × 63 mm
Antenna Gain 5 dBi
Outdoor (LOS) Range 400 m / 1,300 ft
Indoor Range 50 m / 160 ft
AC Voltage / Frequency 100–240 Vac (50/60 Hz)
Max Input Current 50 mA
Weight (with Antenna) 0.24 lbs

WIRELESS & SECURITY FEATURES

  • 802.11b/g/n 2.4 GHz wireless standards
  • WPA-PSK, WPA2-PSK, and WEP encryption support
  • 20 MHz channel bandwidth operation
  • Detachable 5 dBi dipole antenna
  • Universal AC mains compatible (100–240V)

WHAT'S IN THE BOX

  • • Wireless Gateway Unit
  • • 5 dBi Omni-Directional Antenna
  • • Quick Installation Guide
Downloads
📄 Product Datasheet

Core Inverter Technologies

Includes standalone Microinverters and robust String Inverters tailored to match various system architectures and installation designs.

Hybrid Systems & Battery Storage

Features Hybrid Inverters (Battery-Based) and specialized Energy Storage equipment to provide reliable backup power and energy independence.

Performance Optimization

Utilizes advanced Power Optimizers to maximize individual panel output and effectively counteract shading or mismatch issues.

System Intelligence & Monitoring

Employs Inverter Communications and monitoring hardware to track your system's production and health in real time.

Precision Sensors

Incorporates specialized Sensors to deliver accurate data insights, ensuring optimal safety and grid compliance.

Hardware & Accessories

Complemented by dedicated Inverter Accessories and essential installation components to streamline and complete the entire setup.

Warranty & Certifications

Proven Endurance

warranty icon

Limited product warranty

Industry-leading coverage protecting your solar investment for the full life of the system.

UL Certified

UL listed & grid certified

Meets UL 1741 and IEEE 1547 standards for safe grid-tied operation in the US market.

Download Spec Sheet of SolarEdge Wireless Repeater
