Description

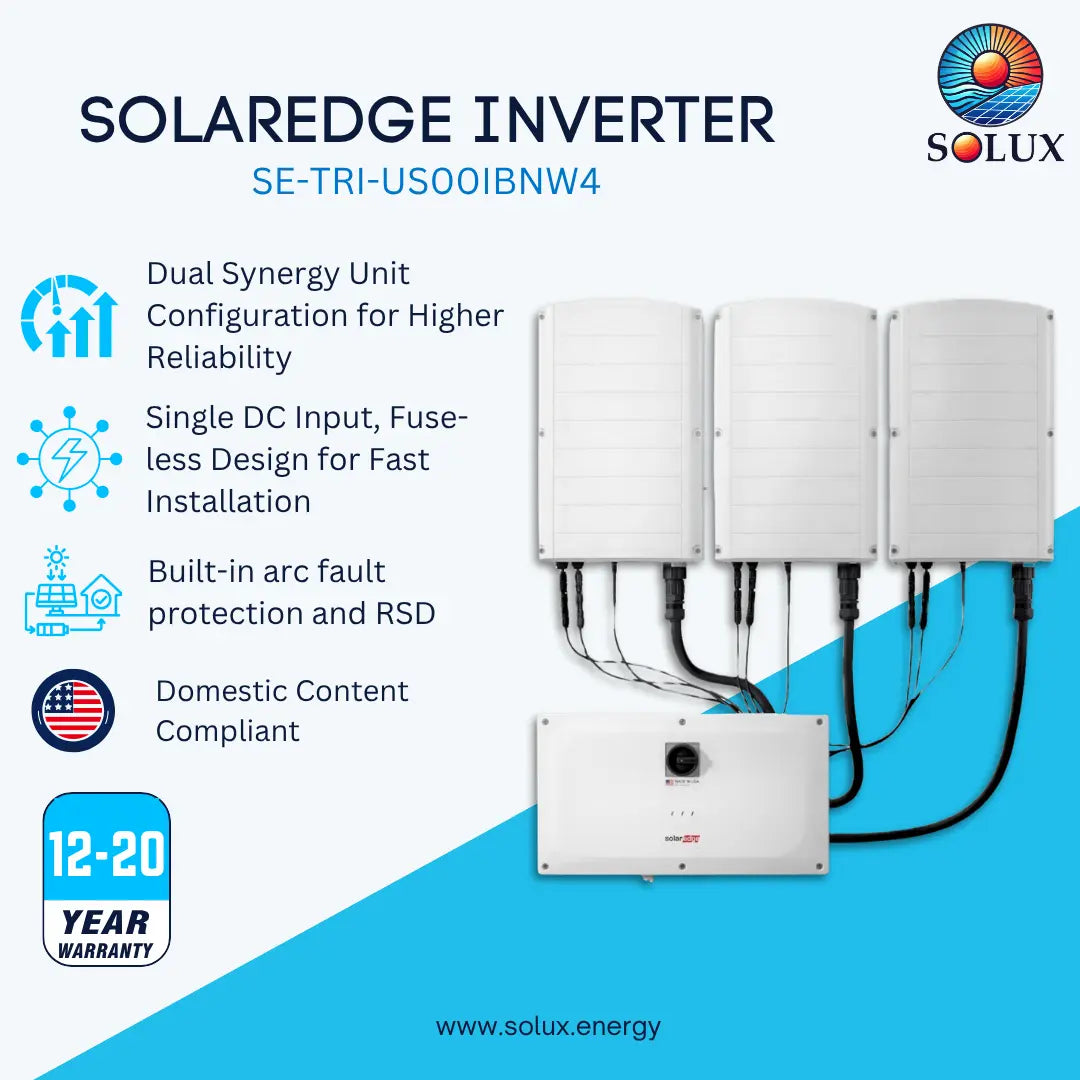

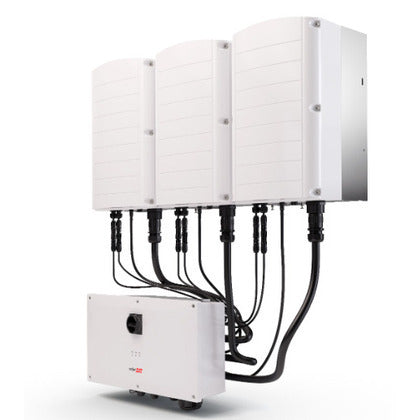

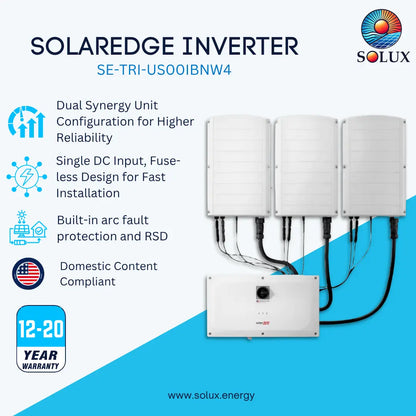

SolarEdge Three-Phase Synergy Manager
The SolarEdge SE-TRI-US00IBNW4 Three-Phase Synergy Manager is the central control and wiring hub for large commercial solar inverter systems. Designed to link three Synergy Power Units together, this unit forms a high-capacity commercial inverter system. It operates on 208V grids (50 kW capacity) or 480V grids (for 100 kW, 110 kW, or 120 kW setups). It features a single DC input, a fuse-less design, built-in rapid shutdown safety controls, and a weatherproof NEMA 3R housing for outdoor mounting.
Specifications:
- Model/Part Number: SE-TRI-US00IBNW4
- Product Type: Three-Phase Synergy Manager
- Input: Single DC input
- AC voltage: 208/480 V
- Power configurations: 50 kW @ 208 V; 100/110/120 kW @ 480 V
- Phase: 3-phase
- Mounting: Bracket
- Enclosure: NEMA 3R
- System configuration: 3 Synergy Units per inverter
-
Resources

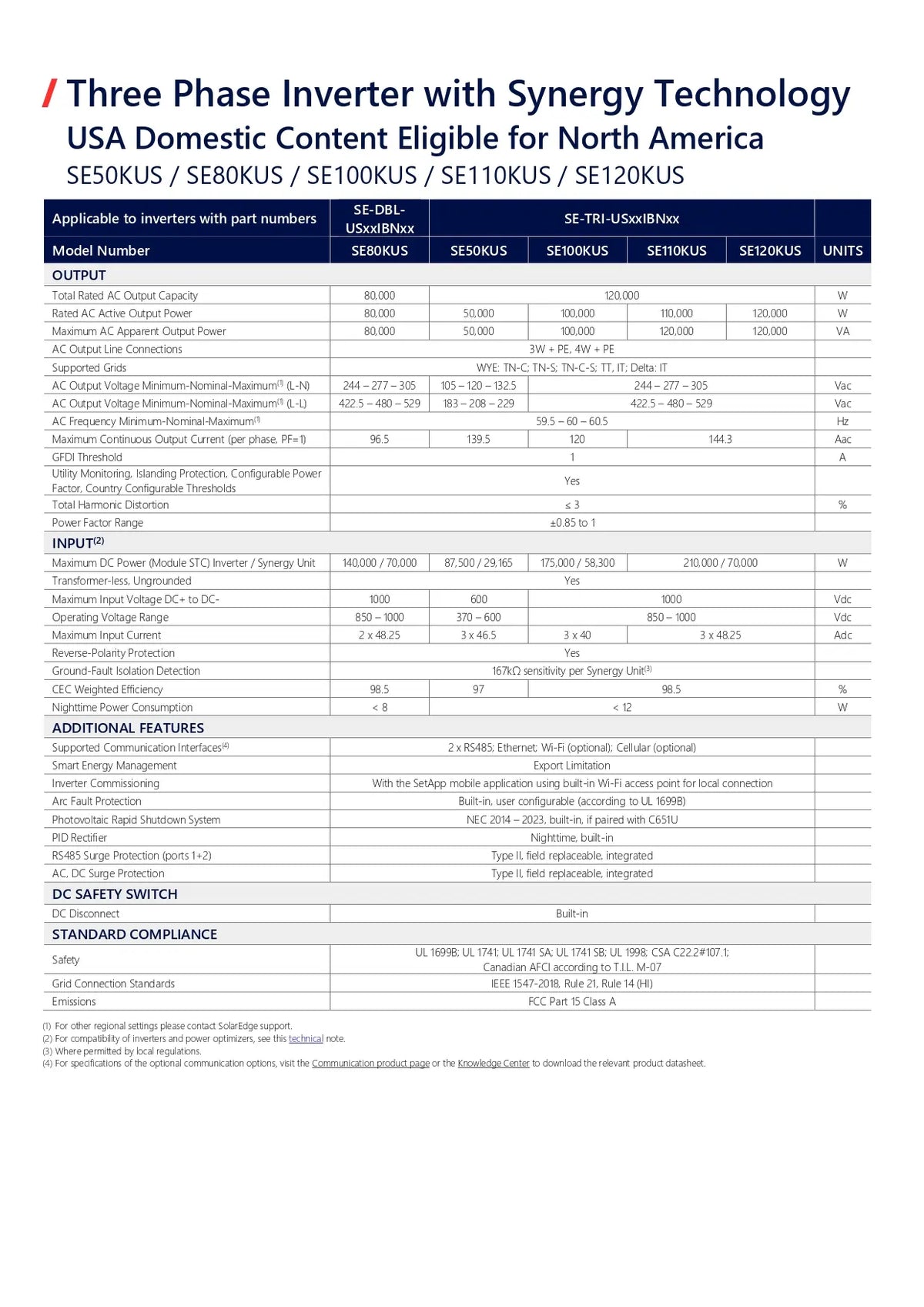

Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ Download Quick Installation Guide
Warranty
✔️ Download Warranty
