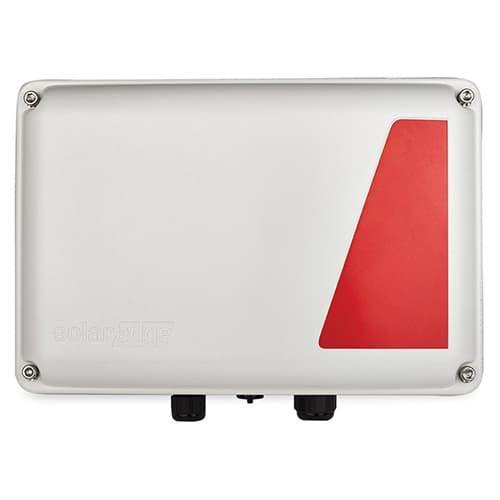

  • Single product image of solaredge energy metering, a white energy meter with a red stripe, designed for wall mounting, with visible terminal blocks.
1 3

Energy Meter with Modbus connection (CT sold separately)

$240.78 USD
$240.78 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Voltage: 240 VAC
✔️ Features: RS485 Modbus communication for seamless integration with SolarEdge inverters
✔️ Warranty: 5 years

The SolarEdge SE-MTR240 is an energy meter designed to monitor electricity production, consumption, and grid import/export in SolarEdge PV systems. It communicates with compatible SolarEdge inverters via RS485 Modbus, providing accurate energy data for system monitoring, self-consumption optimization, and energy management.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Manufacturer's logo

  • Description

    Energy Meter with Modbus connection (CT sold separately)

    Type NEMA 3R enclosure for outdoor protection
    Communicates over RS485 to provide monitoring Data
    Suitable for export limitation, consumption monitoring and StorEdgeTM applications

    Designed for accurate energy monitoring in commercial solar installations and reliable performance for production monitoring. Enhance your solar energy management with a dependable energy meter built for precision and easy installation.

    • AC Input Voltage (Nominal): 240 Vac
    • AC Frequency (Nominsal): 60 Hz
    • Max AC Input Current: 100 mA
    • Connector Type: Terminal Block 22-12 AWG
    • Dimension (H x W x D): 206.6 x 316 x 117.5 mm
    • Weight: 5.0 lbs

  • Resources

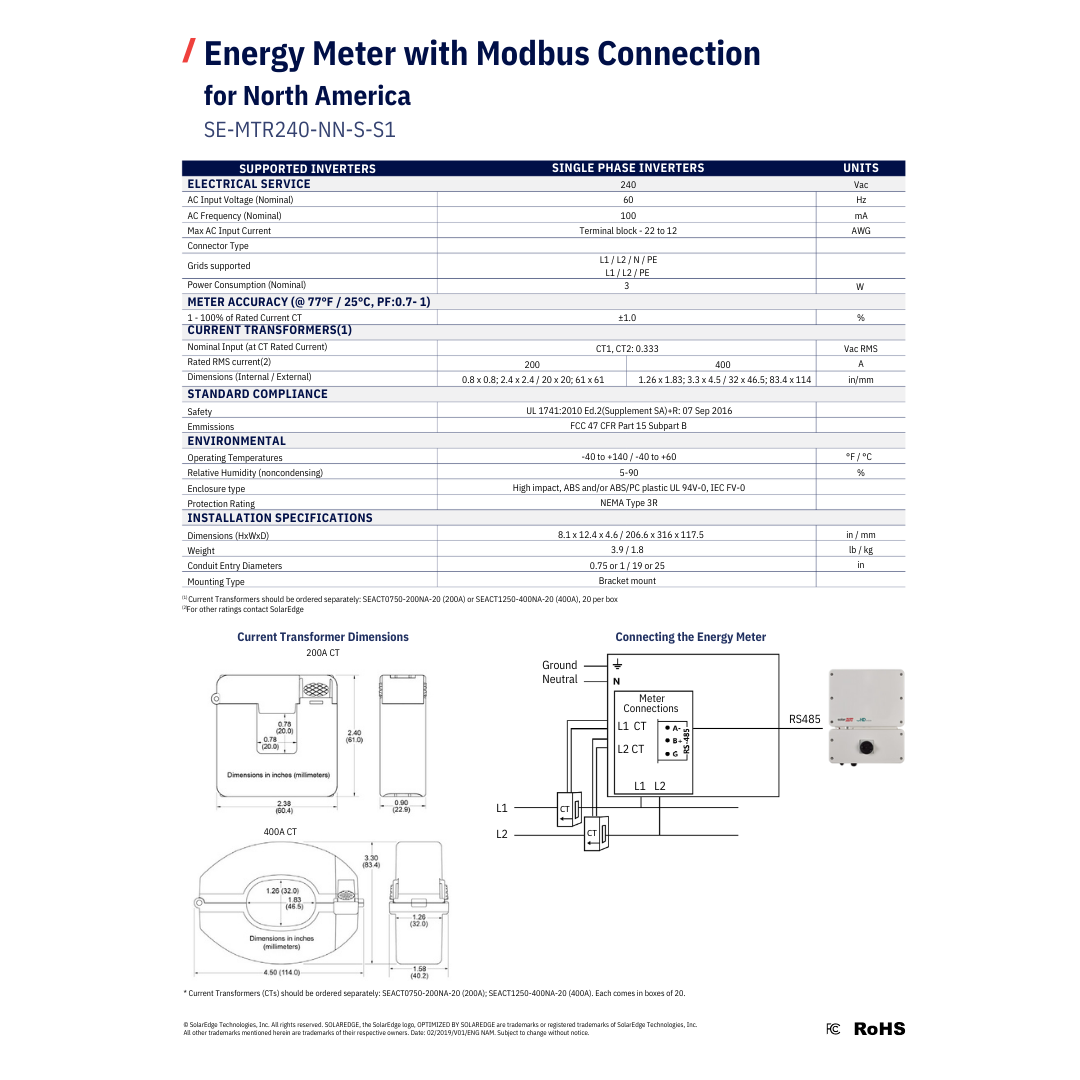

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No installation guide available. Email support@solux.energy for file request.

    Warranty

    5 Years Warranty


Download Spec Sheet Of Energy Meter (CT Sold Separately)
