SolarEdge 80kW Three-Phase Synergy Manager

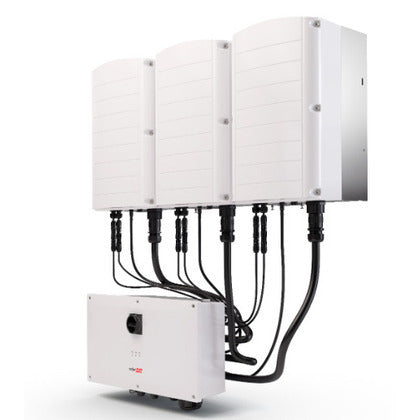

The SolarEdge SE-DBL-US00IBNW4 is the central control and connection hub for an 80 kW commercial solar inverter system. Designed for 277/480V three-phase electrical grids, this unit connects two SolarEdge Synergy power units together into a complete 80 kW inverter system. It features a single DC input, a fuse-less design, built-in rapid shutdown safety controls, and a weatherproof NEMA 3R housing for outdoor installations.
Specifications:
- Model: SE-DBL-US00IBNW4
- System Rating: 80 kW
- Phase: 3-phase
- AC Voltage: 277/480 V
- AC Current: 48 A
- Configuration: 2 Synergy Units per inverter
- DC Input: Single input, fuse-less
- Enclosure: NEMA 3R
-
