SolarEdge SE-DBL-US00IBNS4 Three Phase Inverter with Synergy Technology

SolarEdge 80kW Three-Phase Synergy Manager

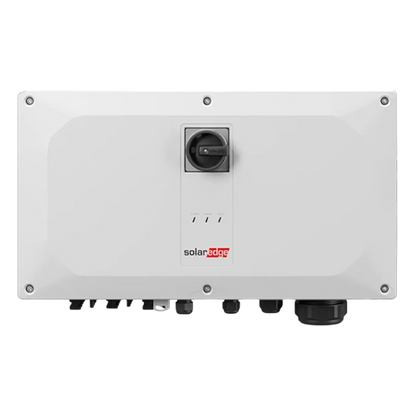

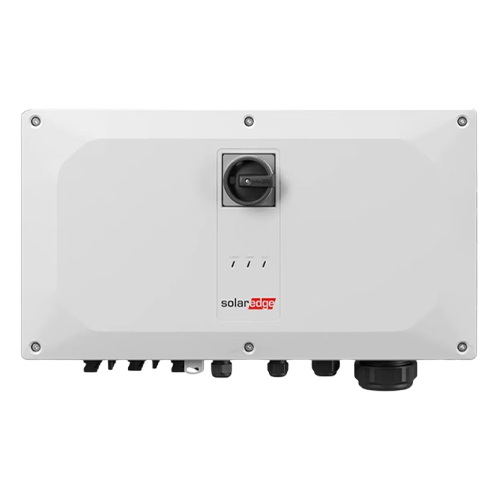

The SolarEdge SE-DBL-US00IBNS4 is an 80 kW three-phase Synergy Manager built for commercial and industrial solar installations. It connects with secondary Synergy units to control an 80 kW grid-tie inverter system. Designed for 240/277 VAC three-phase grids, this main control unit manages DC power input up to 1,000 VDC at 98.5% efficiency.

Installers can set up and configure the unit wirelessly using the SolarEdge SetApp smartphone software. The unit includes built-in arc-fault protection (AFCI) and rapid shutdown features for safe site operation. Protected by a NEMA 3R weather-resistant outdoor housing, it measures 14.17 in × 22.40 in × 11.60 in and weighs 70.4 lb.

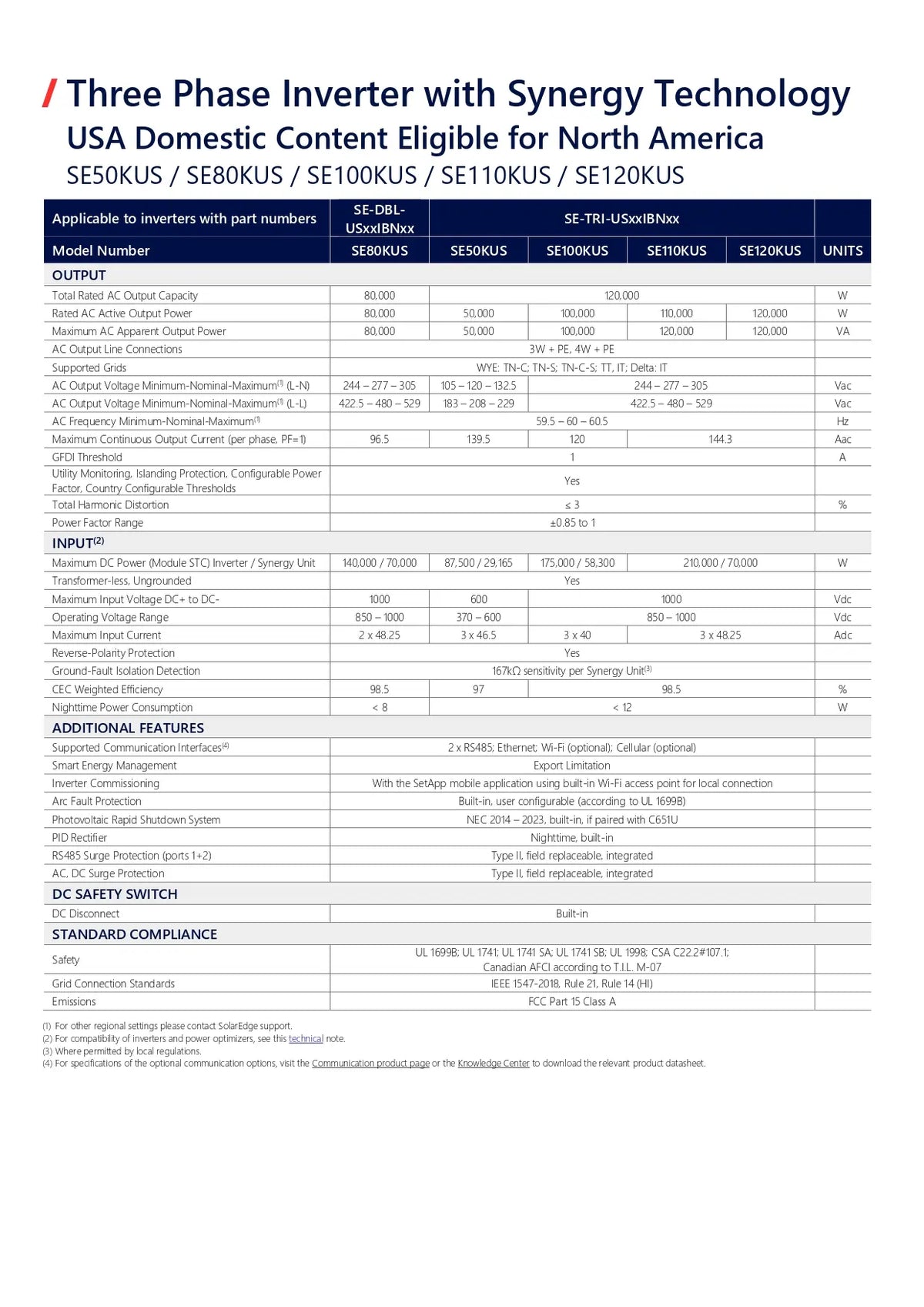

Technical Specifications:

• Manufacturer: SolarEdge
• Model/Part Number: SE-DBL-US00IBNS4
• Product: Three Phase Synergy Manager
• Rated power: 80 kW
• Phase: 3-phase
• AC voltage: 240/277 VAC
• Maximum DC voltage: 1,000 VDC
• Maximum DC current: 2 × 48.25 A
• CEC weighted efficiency: up to 98.5%
• Enclosure: NEMA 3R
• Dimensions: 14.17 × 22.4 × 11.6 in
• Weight: 70.4 lb (31.9 kg)
