Description

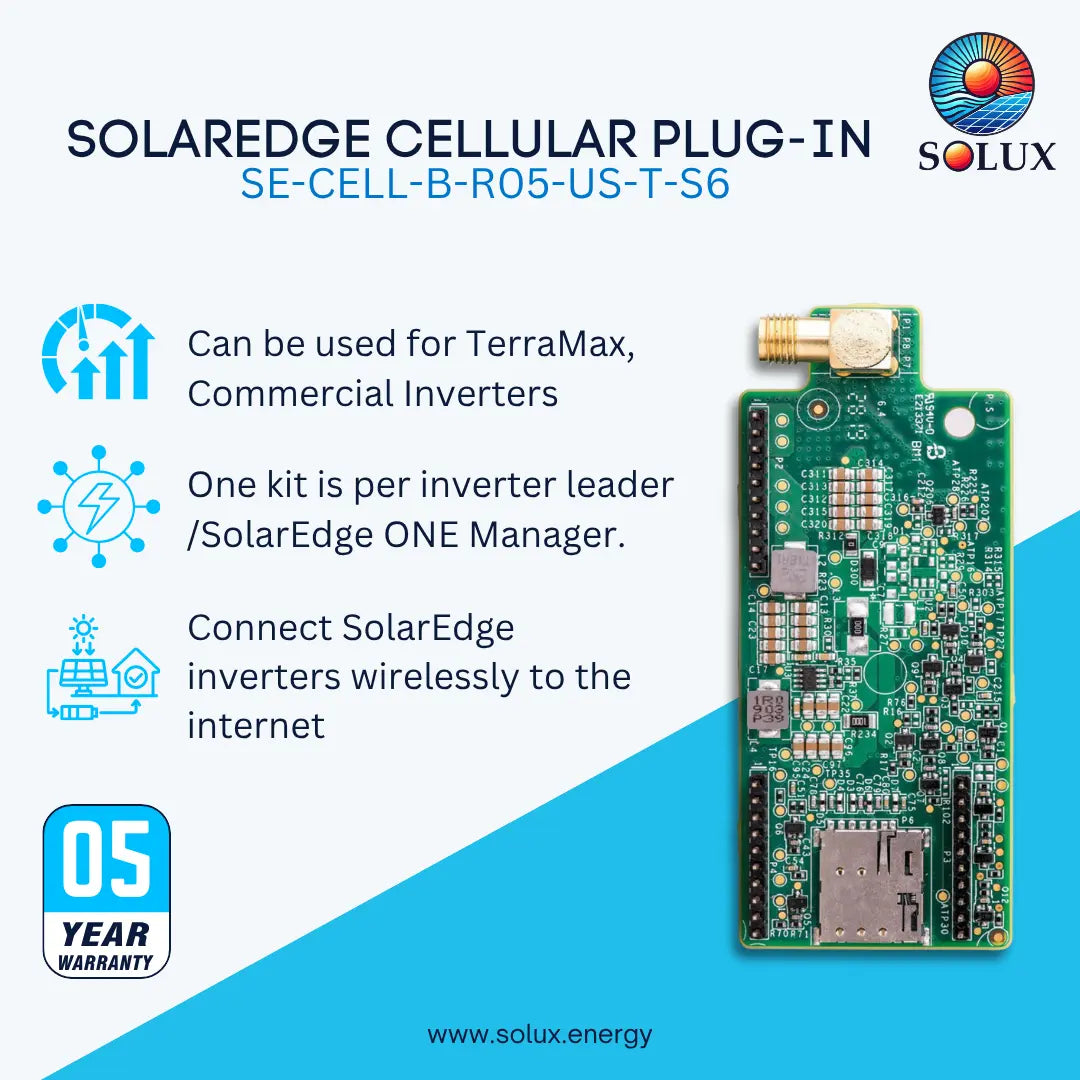

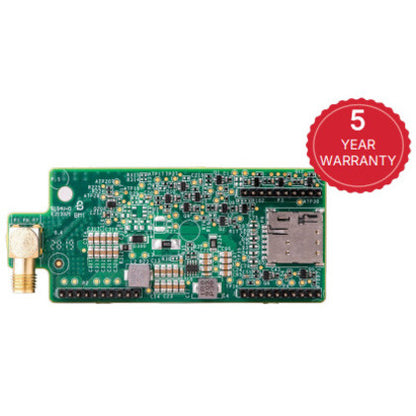

SolarEdge Commercial Cellular Plug-In (5-Year Plan)
The SolarEdge SE-CELL-B-R05-US-T-S6 is a commercial cellular communication module engineered specifically for SolarEdge TerraMax and C&I inverters. Installed directly inside the inverter enclosure, it transmits telemetry data to the SolarEdge ONE Manager and monitoring platforms without requiring a local wired internet connection. The module manages cellular data transfer across commercial system topologies up to a maximum capacity of 1,000 kW AC.
Equipped with a 5-year prepaid data plan, this plug-in card supports monitoring connectivity for up to 32 commercial inverters on a single installation. Its internal form factor streamlines hardware setup by eliminating external antenna enclosures or standalone power supplies. This card is engineered exclusively for modern C&I and TerraMax series inverters and is not compatible with legacy CCG gateways, DTGL units, or display-based inverters.
Specifications:
- Manufacturer: SolarEdge
- Part Number: SE-CELL-B-R05-US-T-S6
- Product Type: Cellular Plug-In / Communication Accessory
- Application: Commercial & Industrial
- Data Plan: 5 years
- Up to 32 Inverters
- Compatible Systems: TerraMax, C&I Inverters, SolarEdge ONE Manager
- Not Compatible with CCG, DTGL OR Display Inverters.
- Installation: Inside inverter enclosure
-
Resources

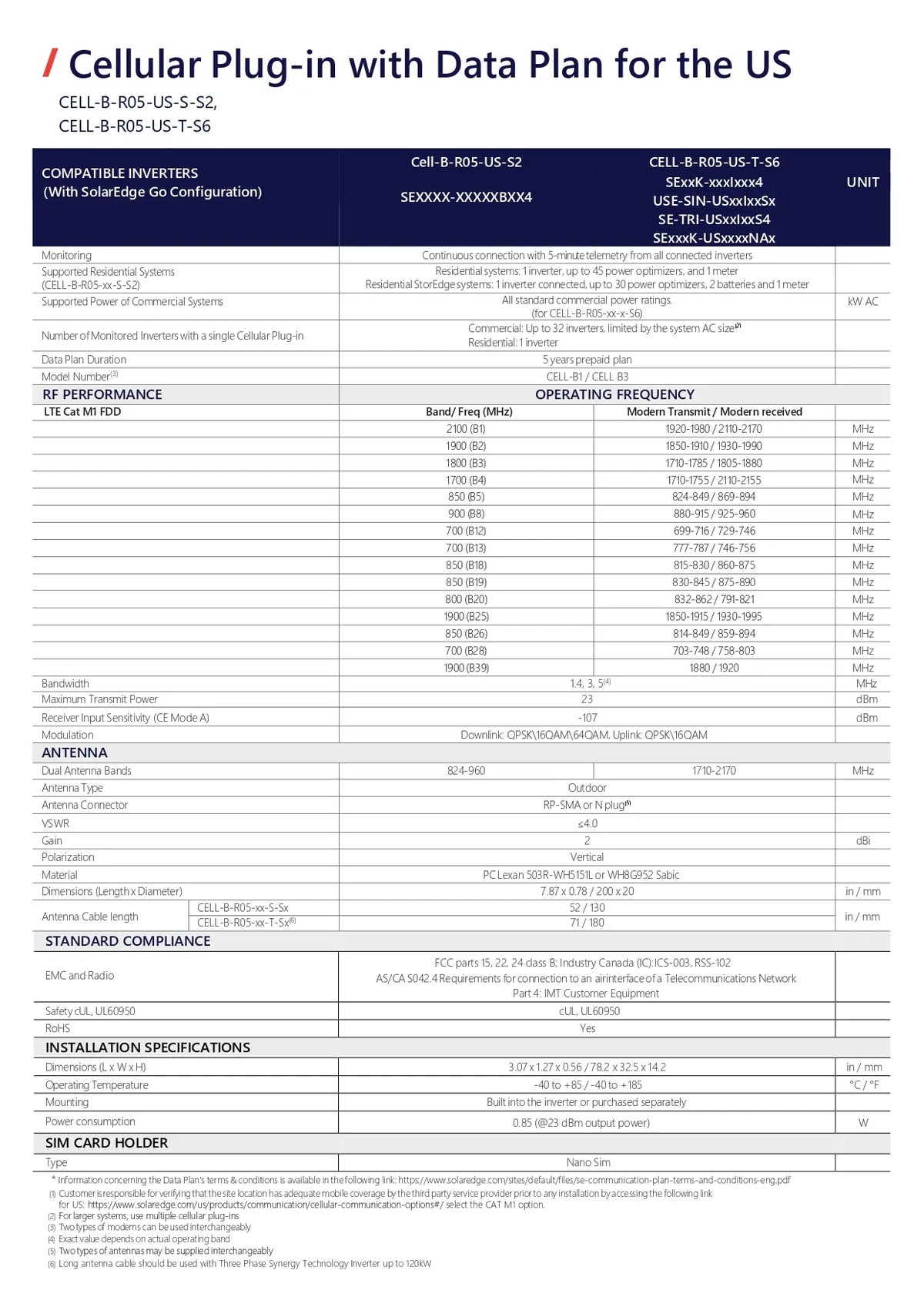

Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
