Wireless Antenna Kit for Inverters (MOQ: 1 kit of 5 pcs)

Wireless Antenna Kit for Inverters (MOQ: 1 kit of 5 pcs)

Model number: AS4032-1

✔️ Used to connect a SolarEdge device to the monitoring platform via Wi-Fi or ZigBee wireless communication. Used to connect a SolarEdge device to Smart Energy devices via ZigBee communications
✔️ Indoor or outdoor usage
✔️ Antenna external to inverter for wider range

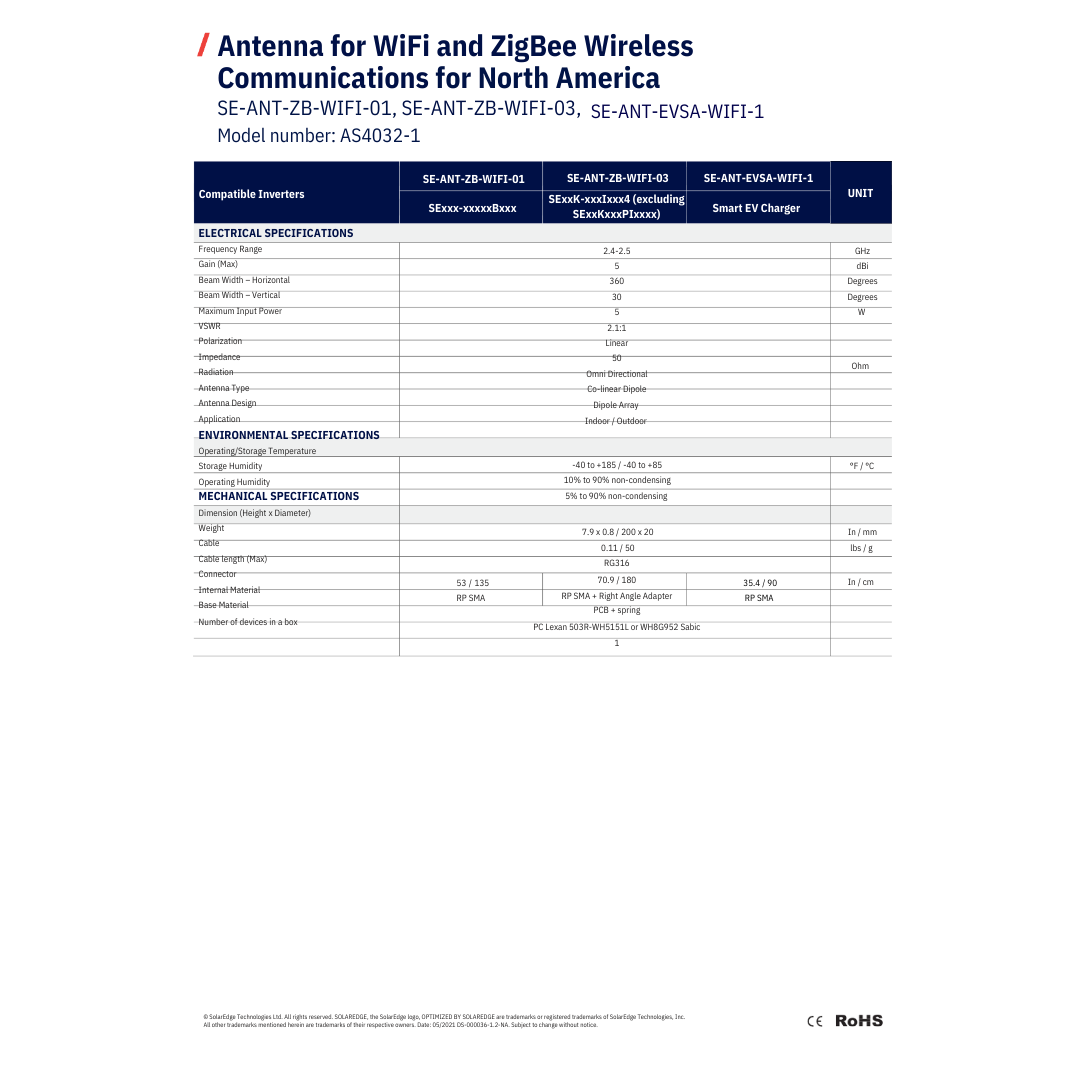

Technical Specifications:

• Frequency Range: 2.4-2.5 GHz
• Gain (Max): 5 dBi
• Beam Width – Horizontal: 360 Degrees
• Beam Width – Vertical: 30 Degrees
• Maximum Input Power: 5 W
• VSWR: 2.1:1
• Polarization: Linear
• Impedance: 50 Ohm
• Radiation: Omni Directional
• Antenna Type: Co-linear Dipole
• Antenna Design: Dipole Array
• Application: Indoor / Outdoor
• Dimension (Height x Diameter): 7.9 x 0.8 / 200 x 20 In / mm
• Weight: 0.05
• Cable: RG316
• Connector: RP SMA
