SolarEdge SE-AC-SPD-SM AC Surge Protection Device (SPD) Kit for Synergy Manager

SolarEdge AC Surge Protection Device (SPD) Kit for Synergy Manager (5 units, 1 unit per Manager)

The SolarEdge SE-AC-SPD-SM is a plug-in surge protection kit designed for SolarEdge Three-Phase Inverters with Synergy Technology. Installed directly inside the Synergy Manager, this kit protects the inverter's electrical components and AC wiring from voltage spikes and lightning surges.

It features a simple snap-in design that installs quickly without extra wiring. If a surge occurs, the device communicates with the SolarEdge monitoring portal to alert you if a module needs to be replaced. It connects easily into commercial systems equipped with grid-tied Inverters, Electrical safety equipment, high-output Solar Panels, and energy storage Batteries.

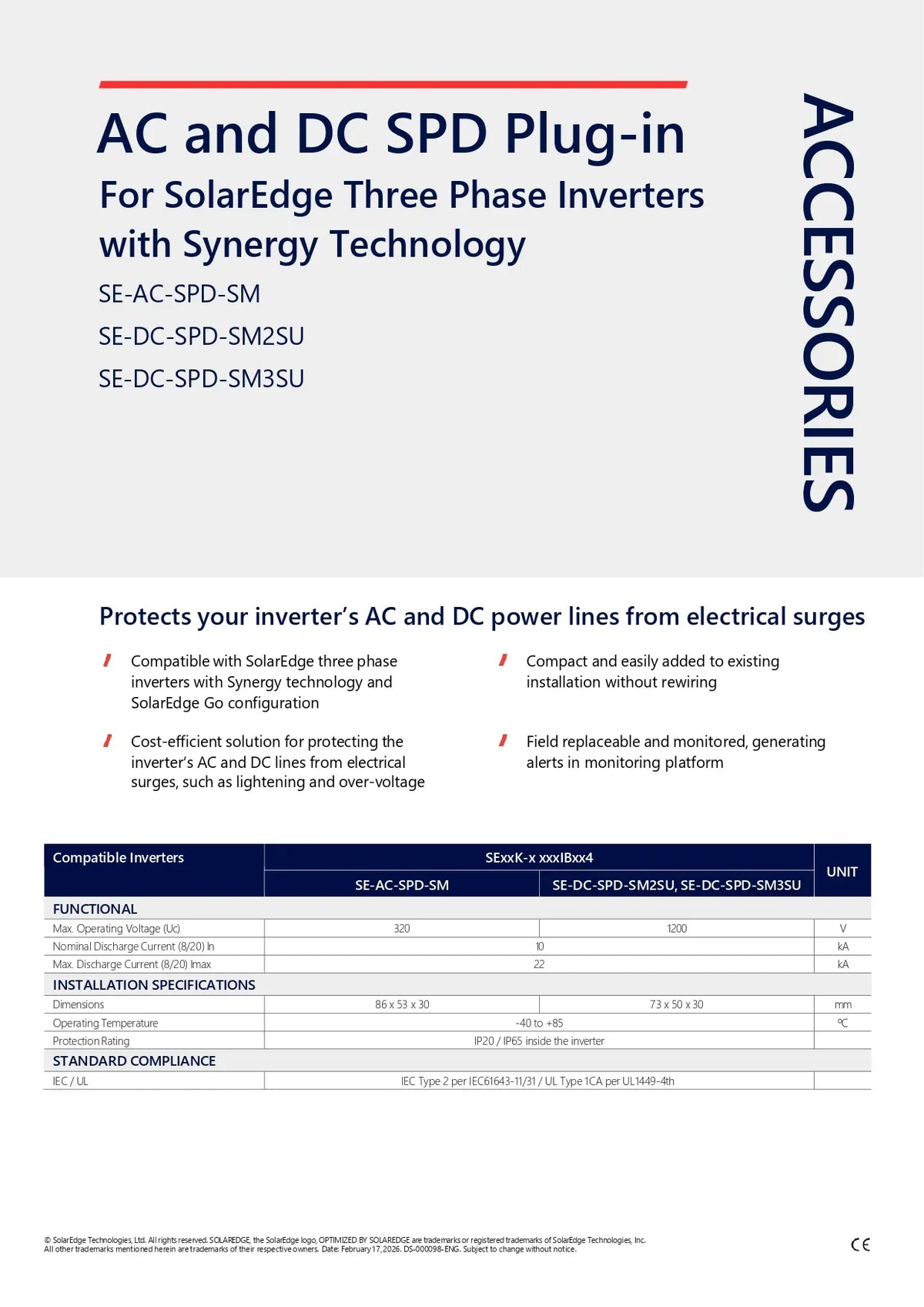

Specifications:

• Manufacturer: SolarEdge

• Product Type: AC SPD Plug-in
• Max. Operating Voltage (Uc): 320 V
• Nominal Discharge Current (8/20) In: 10 kA
• Max. Discharge Current (8/20) Imax: 22 kA
• Dimensions: 86 x 53 x 30 mm
• Operating Temperature: -40 to +85 ºC
• Protection Rating: IP20 / IP65 inside the inverter
• IEC / UL: IEC Type 2 per IEC61643-11/31 / UL Type 1CA per UL1449-4th
