SolarEdge SE-1000-CCG-G-S1 Communications Gateway

SolarEdge SE-1000-CCG-G-S1 Communications Gateway

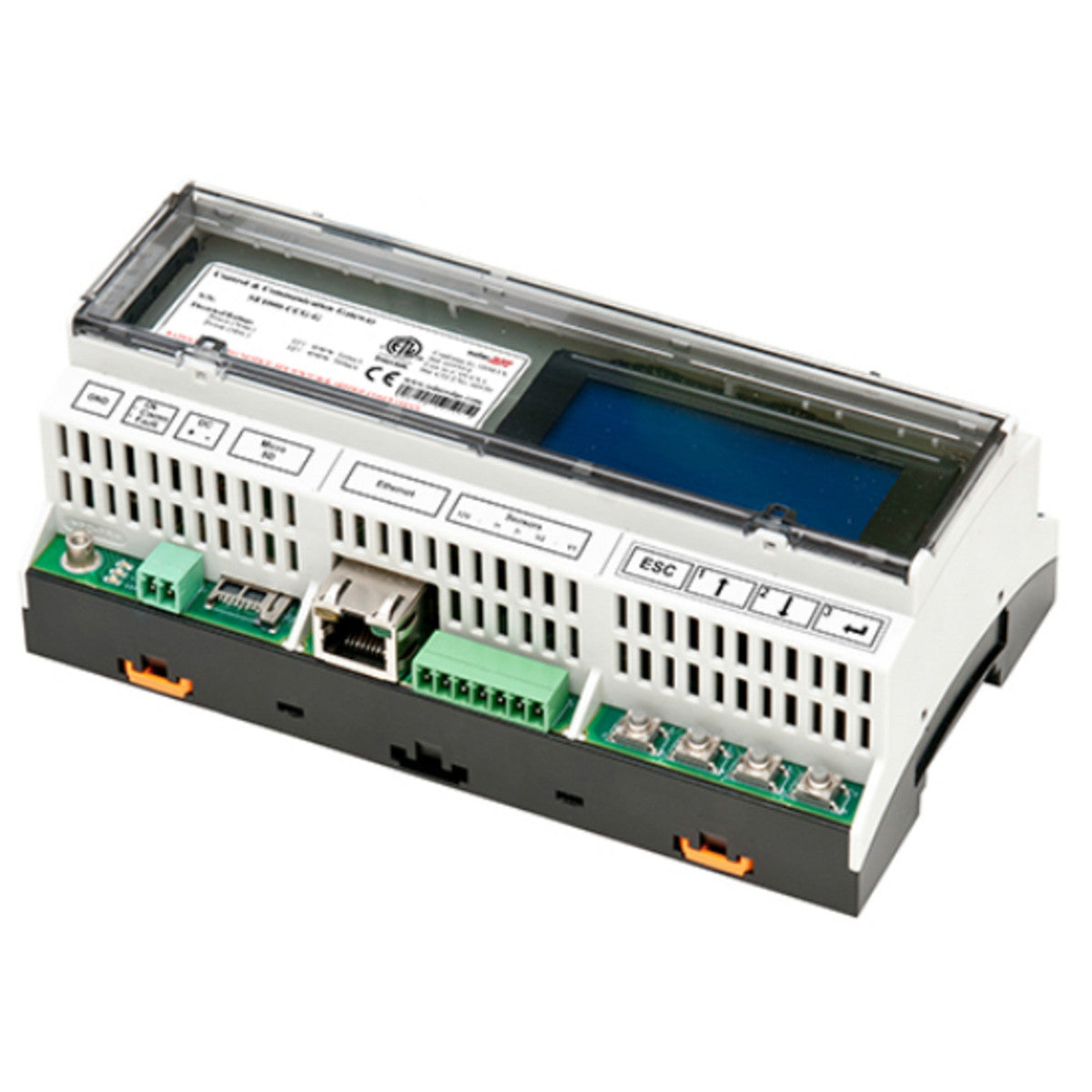

The SolarEdge Control and Communication Gateway expands the SolarEdge monitoring and control capabilities. It can be connected to SolarEdge and non-SolarEdge inverters, environmental sensors and revenue meters and can transfer the monitoring data to the SolarEdge monitoring server and optionally, to a non-SolarEdge logger. The Control and Communication Gateway has an interface that allows for controlling of the SolarEdge inverters' power.
Simple - Wireless connections. Environmental sensors support. Power reduction interface. Electricity meter reader. Non-SolarEdge inverter data loggers. Easy installation - DIN rail and wall mount.

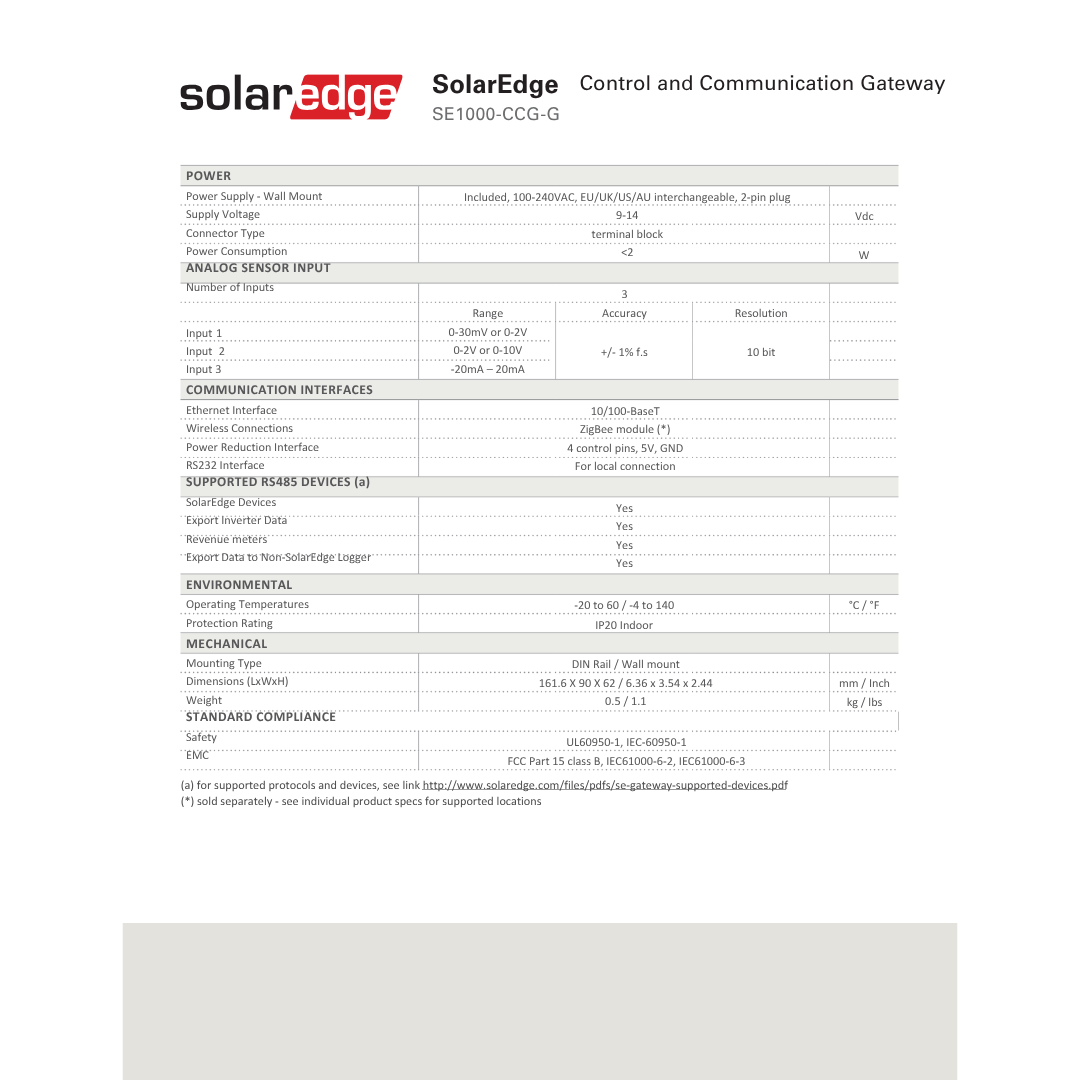

Technical Specifications:

• Technology: Communication Gateway
• Dimensions: 6.36 x 3.54 x 2.44 inches
• Weight: 1.10 lbs
• Input One Range: Range: 0-30mV or 0-2V
• Input Two Range: Range: 0-2V or 0-10V
• Input Three Range: Range: -20mA - 20mA
