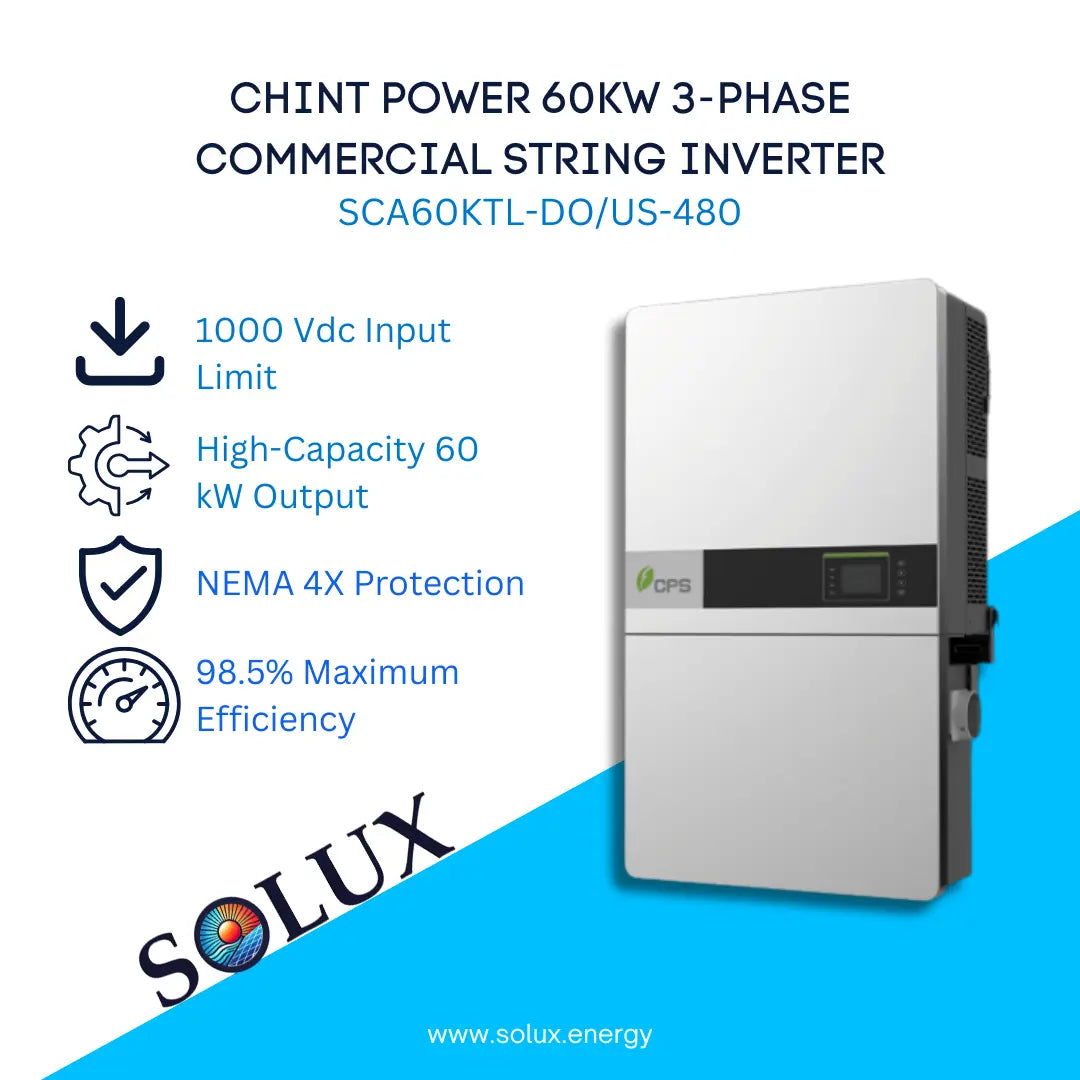

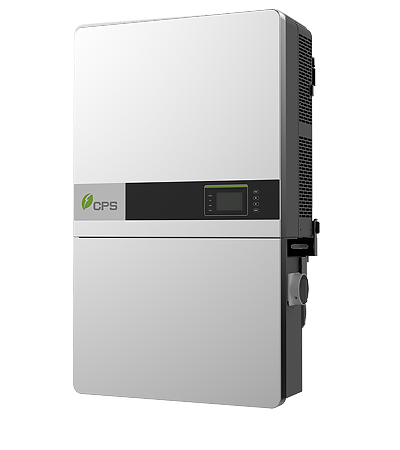

Chint Power SCA60KTL-DO/US-480 60kW 480VAC String Inverter with RSD Wiring Box

$7,628.50 USD
$7,628.50 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

✔️ Voltage: 480VAC
✔️ Features: PVRSS certified for rapid shutdown
✔️ Warranty: 10 years

Used in commercial solar PV systems to convert DC power from solar panels into AC electricity for grid connection.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.

Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

View Product Details

Chint Power logo

PRODUCT OVERVIEW

High-Capacity Commercial String Inverter. 480Vac 3-Phase Ready.

Designed for high energy harvest, scalable system architecture, and reliable performance in large commercial and industrial solar PV installations. Maximize your commercial solar array output with a rugged 3-phase commercial string inverter engineered by Chint Power Systems for seamless 480Vac utility grid integration.

The CPS SCA60KTL-DO/US-480 delivers 60kW of nominal AC output power at 480Vac with an impressive 98.8% peak efficiency (98.5% CEC). Equipped with three independent MPPT channels, an integrated load-break DC disconnect switch, advanced smart-grid support functionality, and a NEMA 4X outdoor-rated enclosure, it offers superior design flexibility for commercial rooftop and ground-mount PV systems.

⚡ 60kW Nominal AC Power
🎛️ 480Vac 3-Phase Grid Connection
📈 98.8% Peak Efficiency
🔀 3 Independent MPPTs
🛡️ NEMA 4X Outdoor Rated

ELECTRICAL & COMMUNICATION SPECIFICATIONS

Nominal AC Output Power 60,000 W
Nominal AC Voltage 480 Vac (3-Phase 3-Wire / 4-Wire Wye)
AC Grid Frequency Range 60 Hz (57 - 63 Hz Operating Range)
Max Continuous AC Current 72.2 A per Phase
Max DC Input Power 90,000 W (Up to 150% DC/AC Oversizing)
System Peak Efficiency 98.8% (CEC Efficiency 98.5%)
Max DC Input Voltage 1000 Vdc
MPPT Voltage Range 540 - 850 Vdc (200 - 950 Vdc Operating)
Communication Interface RS485 (Modbus RTU), Optional Wi-Fi / Ethernet

STANDARD COMPLIANCE

  • Safety Standards: UL 1741 SA, CSA C22.2 No. 107.1-01, IEEE 1547
  • Grid Support: CA Rule 21 Compliant, HECO Rule 14H Compliant
  • EMC & Surge Protection: FCC Part 15 Class B, IEEE C62.41.2 Type II SPD
  • Rapid Shutdown: Compatible with SunSpec PLC Rapid Shutdown Devices

INSTALLATION SPECIFICATIONS

  • • Part Number / Model: CPS SCA60KTL-DO/US-480
  • • Dimensions: 23.6 × 39.4 × 10.2 in (600 × 1000 × 260 mm)
  • • Weight: 156.5 lbs
  • • Mounting Type: Vertical Wall / Racking Mount Bracket Included
  • • Operating Temperature: -22°F to +140°F (-30°C to +60°C)
  • • Protection Rating: NEMA 4X (IP65 Outdoor Heavy-Duty Enclosure)

Core Inverter Technologies

Includes standalone Microinverters and robust String Inverters tailored to match various system architectures and installation designs.

Hybrid Systems & Battery Storage

Features Hybrid Inverters (Battery-Based) and specialized Energy Storage equipment to provide reliable backup power and energy independence.

Performance Optimization

Utilizes advanced Power Optimizers to maximize individual panel output and effectively counteract shading or mismatch issues.

System Intelligence & Monitoring

Employs Inverter Communications and monitoring hardware to track your system's production and health in real time.

Precision Sensors

Incorporates specialized Sensors to deliver accurate data insights, ensuring optimal safety and grid compliance.

Hardware & Accessories

Complemented by dedicated Inverter Accessories and essential installation components to streamline and complete the entire setup.

Warranty & Certifications

Proven Endurance

warranty icon

Limited product warranty

Industry-leading coverage protecting your solar investment for the full life of the system.

UL Certified

UL listed & grid certified

Meets UL 1741 and IEEE 1547 standards for safe grid-tied operation in the US market.

Download Spec Sheet of Chint Power String Inverter
