Chint Power SCA36KTL-US-480-V2-APS 480VAC, 1000VDC String Inverter *Special order, non-returnable*

Chint Power Systems 36kW 3-Phase 480VAC, 1000VDC String Inverter, APS RSD Wirebox

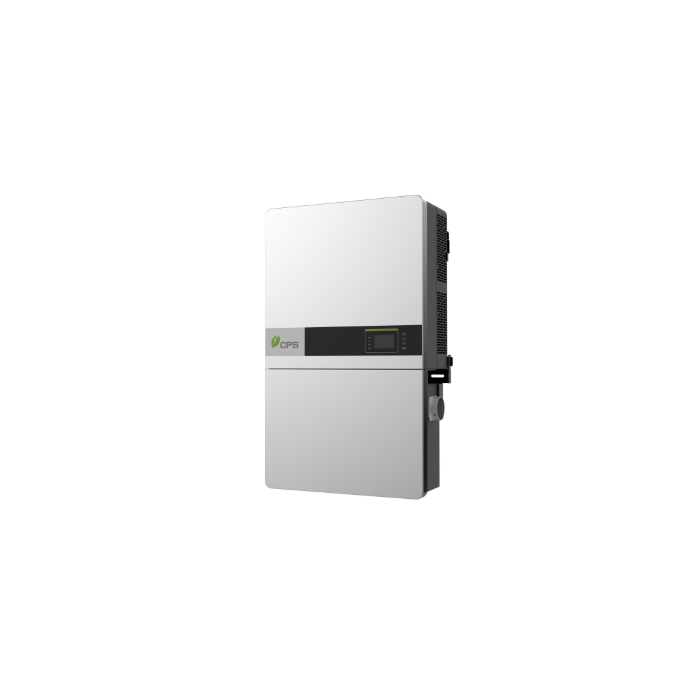

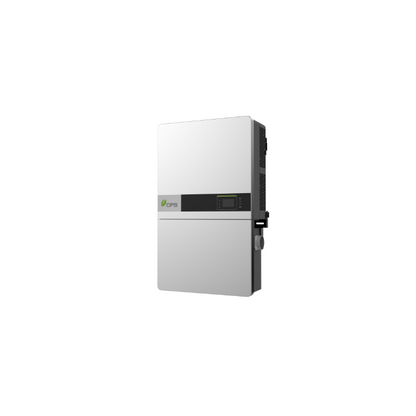

The Chint Power Systems SCA36KTL-DO/US-480 (V2) is a high-efficiency 36 kW (36 kVA) 3-phase string inverter engineered for 480 VAC commercial and industrial solar grids. Operating at a peak conversion efficiency of 98.8%, this V2 platform maximizes energy production across commercial rooftop, carport, and ground-mount photovoltaic systems.

Designed for demanding commercial applications, the inverter features 3 Maximum Power Point Trackers (MPPTs) with 5 DC string inputs per tracker (15 DC inputs total) and a 1000 VDC maximum DC voltage limit. It ships with an integrated, separable Rapid Shutdown Wire-Box containing an embedded PLC transmitter for PVRSS module-level rapid shutdown, touch-safe fusing, AC and DC disconnect switches, arc-fault protection (AFCI), 15-90 degree mounting orientation, and a weatherproof NEMA 4X outdoor enclosure

Technical Specification and Key Features:

Upgrade your home with a reliable Solar String Inverter for efficient, dependable solar power.

• Manufacturer: Chint Power Systems

• Grid Voltage Compatibility: 480 VAC 3-Phase Only (Commercial & Industrial Grids)
• Max DC Input Voltage: 1000 VDC
• NEC 2017/2020 PVRSS certified for rapid shutdown
• NEC-compliant & UL listed arc-fault circuit protection
• 15-90° mounting orientation for low-profile roof installs
• Optional FlexOM Gateway enables remote firmware upgrades
• Integrated AC and DC disconnect switches
• Copper- and Aluminum-compatible AC connections
• 3 MPPTs with 5 inputs each for maximum flexibility
• NEMA Type 4X outdoor rated enclosure
• UL 1741-SA certified to CA Rule 21, including SA8-SA18 VW
• UL 1741-SB and IEEE 1547-2018 certified
• Separable wire-box design for fast service
• Standard 10-year warranty with extensions up to 20 years
