PRODUCT OVERVIEW

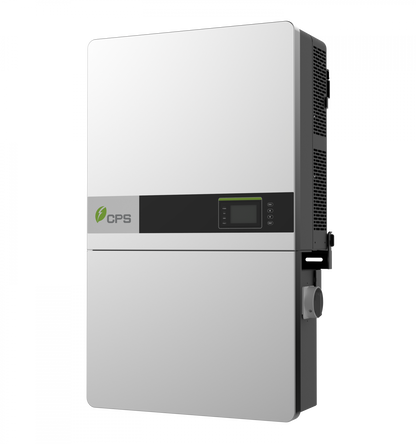

Chint Power SCA36KTL-DO/US-480 36kW 480VAC Commercial String Inverter with RSD Wiring Box
The SCA36KTL-DO/US-480 is a 36 kW three-phase grid-tied string inverter from Chint Power Systems designed for commercial solar PV installations. It converts DC power from solar panels into 480V AC three-phase electricity for direct grid connection, offering high efficiency (around 98%), dual MPPT tracking, and built-in protection features such as arc-fault detection, surge protection, and rapid shutdown support.
TECHNICAL SPECIFICATION
SAFETY & COMPLIANCE
- Certifications: UL 1741-SA/SB Ed. 3, UL 1699B, UL1998, CSA-C22.2 No.107.1-01, IEEE 1547-2018, FCC Part 15
- Grid Standards: CA Rule 21, ISO-NE, HECO
- Smart-Grid Features: Volt-RideThru, Freq-RideThru, Ramp-Rate, Specified-PF, Volt-VAR, Freq-Watt, Vol-Watt
- Surge Protection: Type II MOV (Both DC & AC)
MECHANICAL & INSTALLATION
- • Dimensions (H x W x D): 39.4 × 23.6 × 10.24 in (1000 × 600 × 260 mm)
- • Weight: Inverter: 123.5 lb (56 kg) | Wire Box: 33 lb (15 kg)
- • Operating Temp Range: -22°F to 140°F (-30°C to 60°C)
- • Mounting / Installation Angle: 15 to 90° from horizontal (vertical or angled)
- • Standard Warranty: 10 years (15 and 20 years extended available)
Downloads

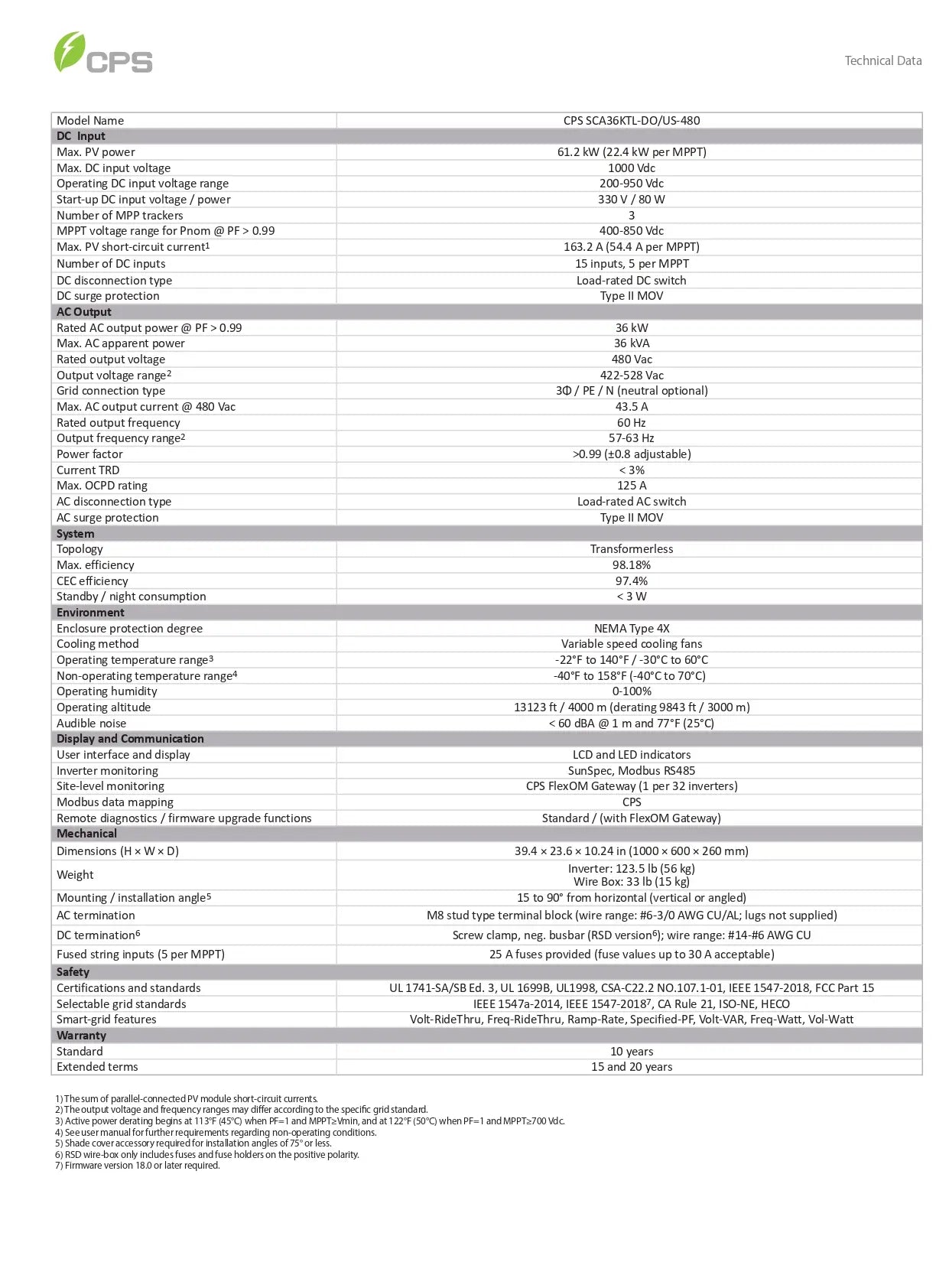

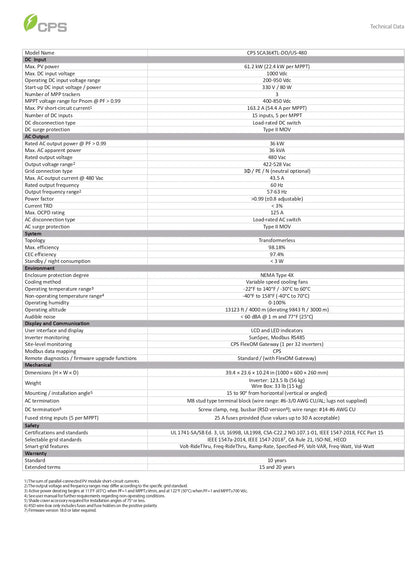

CPS SCA36KTL-DO/US-480 DatasheetCore Inverter Technologies
