Description

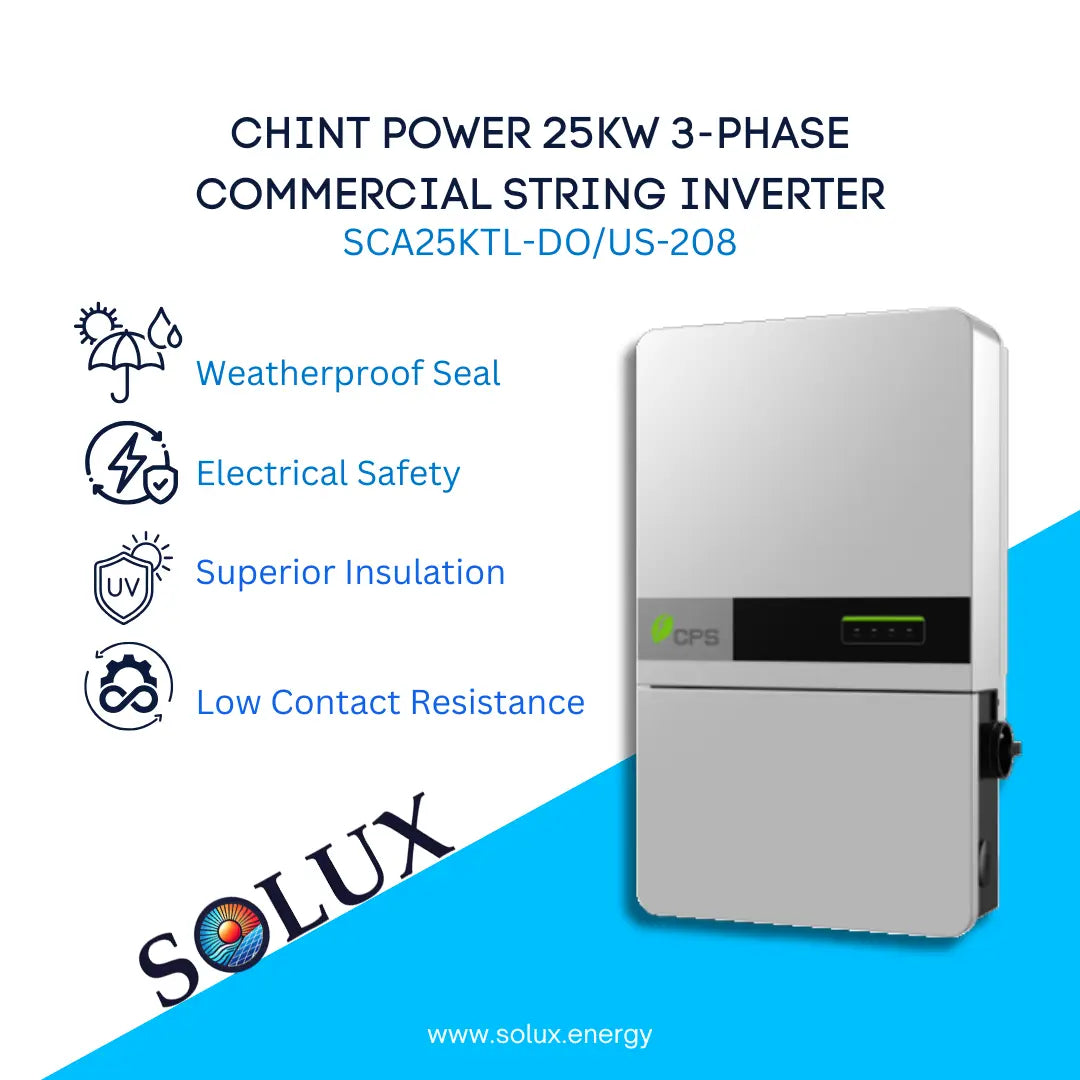

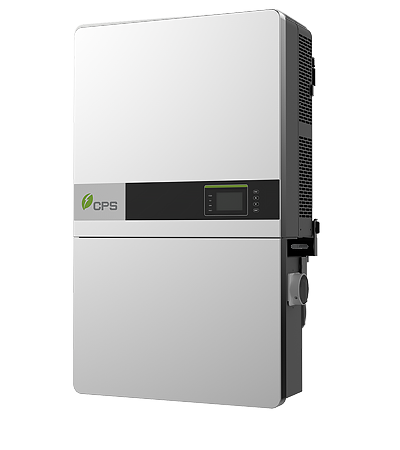

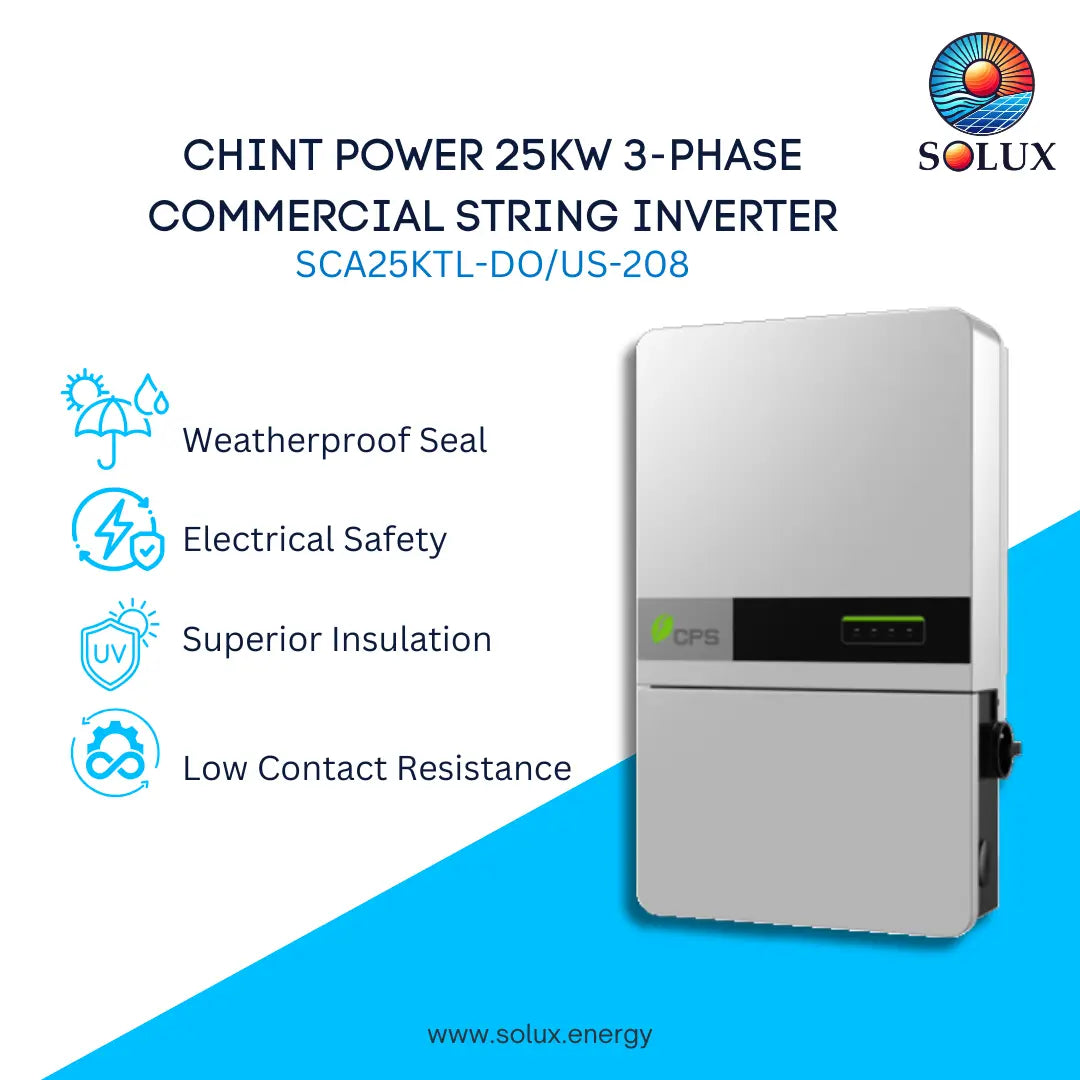

Chint Power SCA25KTL-DO/US-208 25kW 208VAC Commercial String Inverter
The SCA25KTL-DO/US-208 is a 25 kW three-phase grid-tied string inverter from Chint Power Systems, designed for commercial rooftop and carport solar PV installations. It converts DC power from solar panels into 208V three-phase AC power for direct grid connection, offering high efficiency, multiple MPPTs, and built-in safety features such as rapid shutdown, arc-fault protection, and integrated DC/AC disconnects.
Technical Specifications
- Rated Power (AC): 25 kW
- Max Efficiency: 97.0%
- Dimensions: 1000 × 600 × 260 mm
- Weight: 156.5 lb
- Operating Temp: −30°C to +60°C
-
Resources

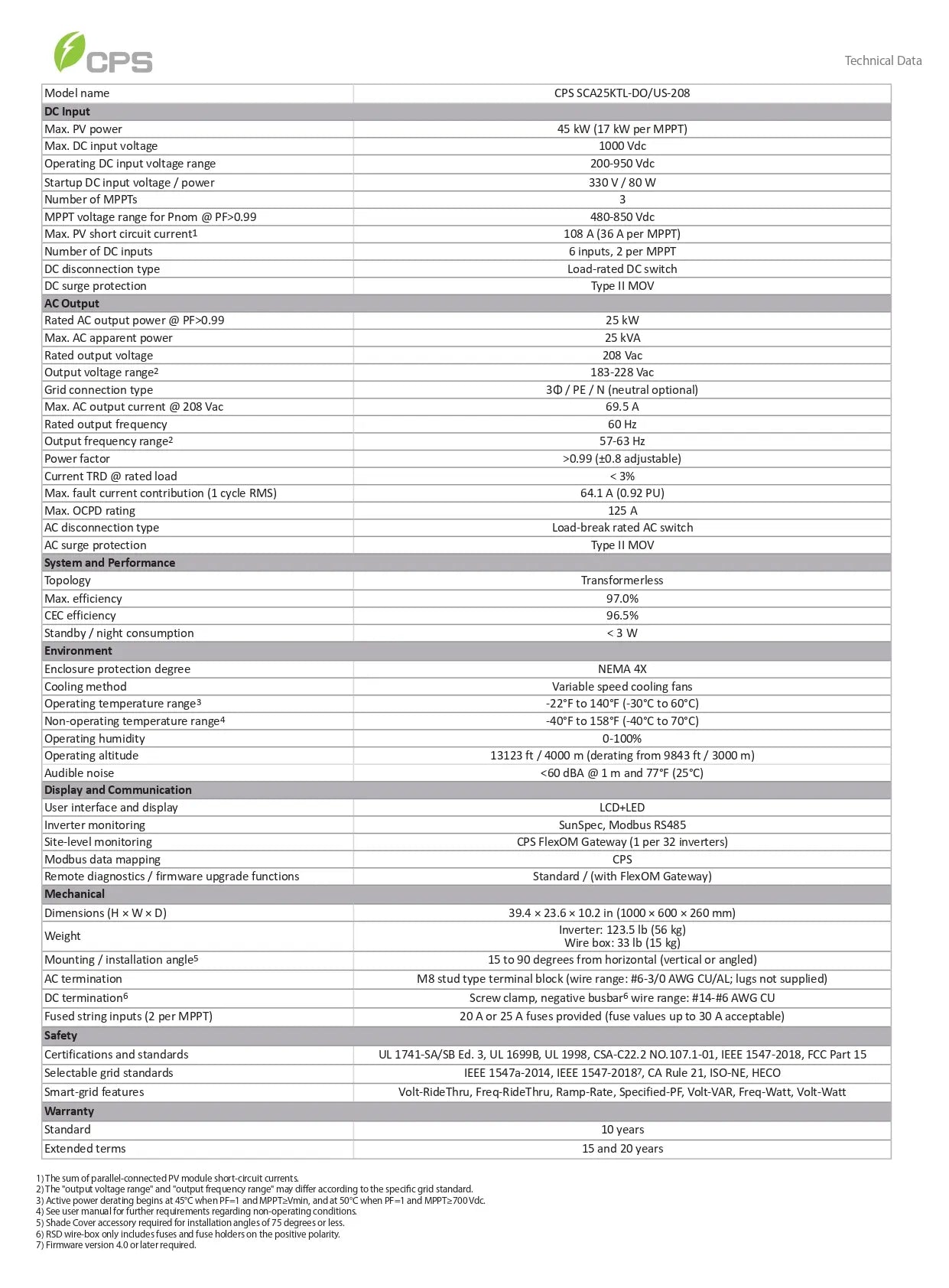

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide file resource available. Email support@solux.energy for file request.
Warranty
No warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
