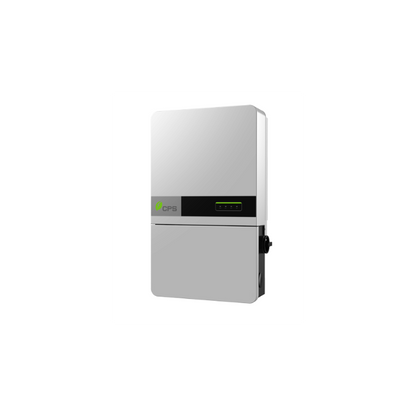

Chint Power SCA25KTL-DO-R/US-480 25kW 480VAC Commercial String Inverter

$4,295.66 USD
$4,295.66 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

✔️ Voltage: 480VAC
✔️ Features: PVRSS-certified rapid shutdown
✔️ Warranty: 10 years

Used in commercial PV systems to convert DC solar power into AC electricity for the grid.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.

Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

View Product Details

Chint Power Logo

PRODUCT OVERVIEW

High-Efficiency Commercial Inverter. 480V 3-Phase Grid Ready.

Designed for scalable performance and high power density in commercial and industrial solar installations. Elevate your solar project yield with a dependable 3-phase string inverter engineered by Chint Power Systems for seamless 480V utility connection and low cost of energy.

The CPS SCA25KTL-DO-R/US-480 delivers 25kW of nominal AC power with an outstanding 98.5% peak efficiency. Featuring dual independent MPPT trackers, an integrated DC disconnect switch, advanced grid support functions, and NEMA 4X all-weather durability, it provides maximum design flexibility for commercial rooftop and ground-mount PV arrays.

⚡ 25kW Nominal AC Power
🎛️ 480V 3-Phase Grid Connection
📈 98.5% Peak Efficiency
🔀 Dual MPPT Trackers
🛡️ NEMA 4X Outdoor Protection

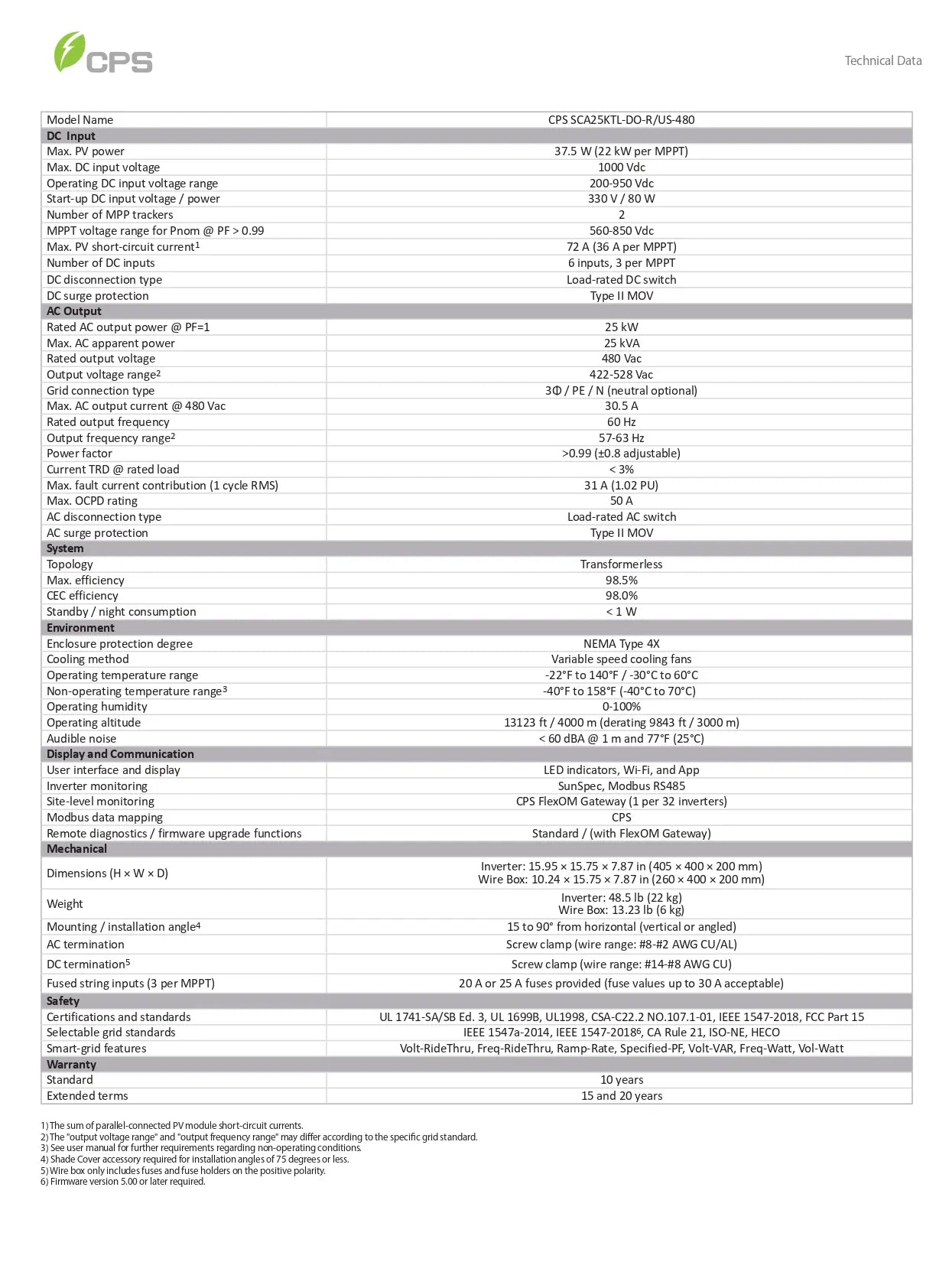

ELECTRICAL & COMMUNICATION SPECIFICATIONS

Nominal AC Output Power 25,000 W
Nominal AC Voltage 480 Vac (3-Phase 3-Wire / 4-Wire)
AC Grid Frequency Range 60 Hz (57 - 63 Hz Range)
Max Continuous AC Current 30.1 A per Phase
Max DC Input Power 37,500 W (Up to 150% DC/AC Oversizing)
System Peak Efficiency 98.5% (CEC Efficiency 98.0%)
Max DC Input Voltage 1000 Vdc
MPPT Voltage Range 550 - 850 Vdc
Communication Interface RS485 (Modbus RTU), Optional Wi-Fi / Ethernet

STANDARD COMPLIANCE

  • Safety Standards: UL 1741 SA, CSA C22.2 No. 107.1-01, IEEE 1547
  • Grid Support: CA Rule 21 Compliant, HECO Rule 14H Compliant
  • EMC & Protection: FCC Part 15 Class B, IEEE C62.41.2 Surge Protection
  • Rapid Shutdown: Compatible with SunSpec PLC Rapid Shutdown Devices

INSTALLATION SPECIFICATIONS

  • • Part Number / Model: CPS SCA25KTL-DO-R/US-480
  • • Dimensions: 22.8 × 31.5 × 11.8 in (580 × 800 × 300 mm)
  • • Weight: 120 lb (55 kg)
  • • Mounting Type: Vertical Wall Mount Bracket Included
  • • Operating Temperature: -22°F to +140°F (-30°C to +60°C)
  • • Protection Rating: NEMA 4X (IP65 Outdoor Heavy-Duty Rating)

Core Inverter Technologies

Includes standalone Microinverters and robust String Inverters tailored to match various system architectures and installation designs.

Hybrid Systems & Battery Storage

Features Hybrid Inverters (Battery-Based) and specialized Energy Storage equipment to provide reliable backup power and energy independence.

Performance Optimization

Utilizes advanced Power Optimizers to maximize individual panel output and effectively counteract shading or mismatch issues.

System Intelligence & Monitoring

Employs Inverter Communications and monitoring hardware to track your system's production and health in real time.

Precision Sensors

Incorporates specialized Sensors to deliver accurate data insights, ensuring optimal safety and grid compliance.

Hardware & Accessories

Complemented by dedicated Inverter Accessories and essential installation components to streamline and complete the entire setup.

Warranty & Certifications

Proven Endurance

warranty icon

Limited product warranty

Industry-leading coverage protecting your solar investment for the full life of the system.

UL Certified

UL listed & grid certified

Meets UL 1741 and IEEE 1547 standards for safe grid-tied operation in the US market.

Download Spec Sheet of Chint Power Commercial String Inverter
