  • This is an image of SMA Sunny Boy Inverter 200Watt Automatic Back-Up Storage Inverter
  • SBS-ABU-200-US-10 sunny boy storage
1 3

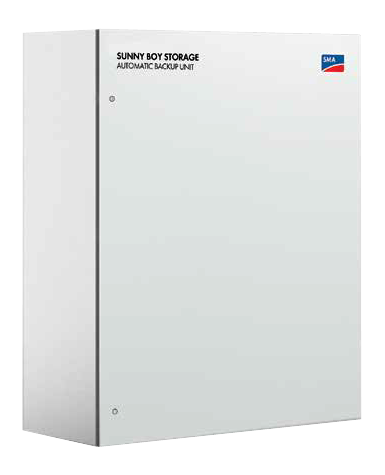

SMA Sunny Boy SBS-ABU-200-US-10 200Watt Automatic Back-Up Storage Inverter

$2,697.71 USD
$2,697.71 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

SMA's robust and versatile automatic backup unit. Enclosure includes an automatic transfer switch designed specifically for use with the SMA Sunny Boy Storage inverter family. In the event of a grid failure, the automatic transfer switch disconnects the PV system, loads and the Sunny Boy Storage from the utility grid and creates a battery-backup grid. The included Backup Unit Controller coordinates grid disconnection and reconnection to ensure minimal downtime while also allowing for up to 5 kVA of unbalanced loads. When paired with SMA Sunny Boy inverters, the Sunny Boy Storage curtails PV power production to match load in the event the battery is full to maximize use of solar production.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    SMA Sunny Boy SBS-ABU-200-US-10 200Watt Automatic Back-Up Storage Inverter

    Highlights - Suitable for many use cases including whole house backup or connected to a protected loads panel. Allows for direct connection of PV and Sunny Boy Storage inverters. 200 Amp rated bus allows for large panels to be connected to it. Up to 5 kVA of unbalanced load. Outdoor rated for harsh environments. Pre-wired and tested to make for easy commissioning. Plug-n-play installation with Sunny Boy Storage inverter. Easy setup and commissioning via Sunny Boy Storage webUI. AC coupled architecture allows for new PV or retrofit installations. Up to three high-voltage batteries can be connected in a single SMA residential storage solution.

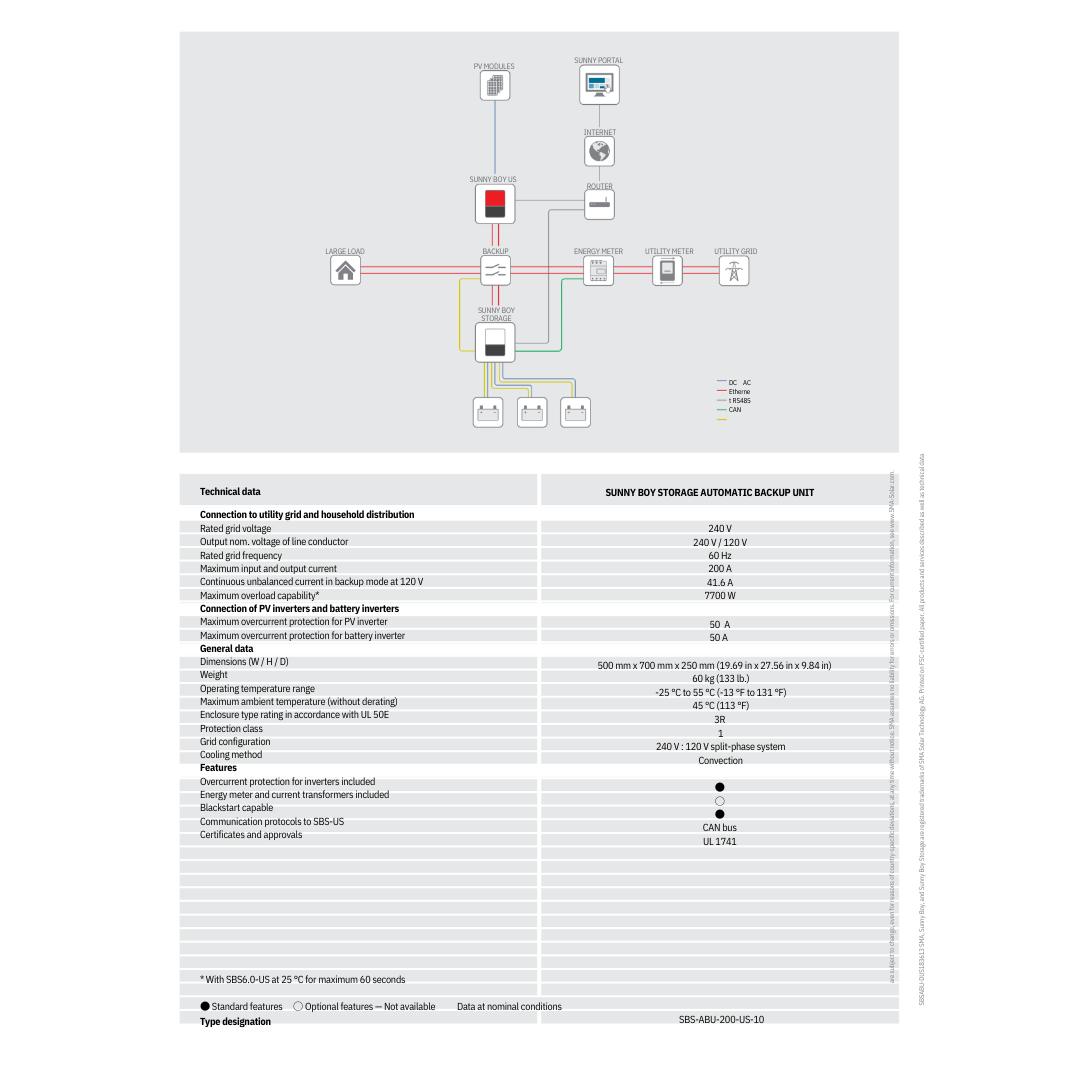

    Technical Specifications

    • Technology: Automatic Backup Unit
    • Dimensions: 23 x 31 x 13.5 inches
    • Weight: 125 lbs
    • Weight: 2.3 lbs
    • Rated Grid Voltage: 240 Volts
    • Output Nom. Voltage of Line Conductor: 240V / 120V
    • Rated Grid Frequency: 60 Hz
    • Max. Input and Output Current: 200 Amps
    • Continuous Unbalanced Current in Backup Mode (@120V): 41.6 Amps
    • Max. Overload Capability: 7700 Watts

  • Downloads

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No installation guide available. Email support@solux.energy for file request.

    Warranty

    ✔️ Warranty

Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
