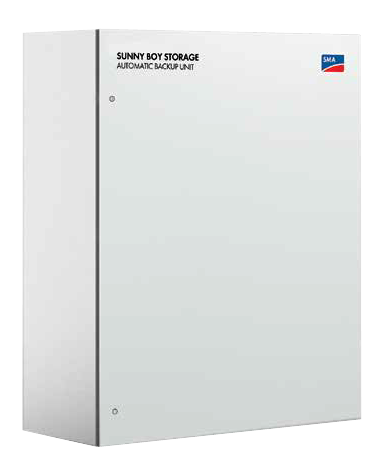

SMA Sunny Boy SBS-ABU-200-US-10 200Watt Automatic Back-Up Storage Inverter
Highlights - Suitable for many use cases including whole house backup or connected to a protected loads panel. Allows for direct connection of PV and Sunny Boy Storage inverters. 200 Amp rated bus allows for large panels to be connected to it. Up to 5 kVA of unbalanced load. Outdoor rated for harsh environments. Pre-wired and tested to make for easy commissioning. Plug-n-play installation with Sunny Boy Storage inverter. Easy setup and commissioning via Sunny Boy Storage webUI. AC coupled architecture allows for new PV or retrofit installations. Up to three high-voltage batteries can be connected in a single SMA residential storage solution.

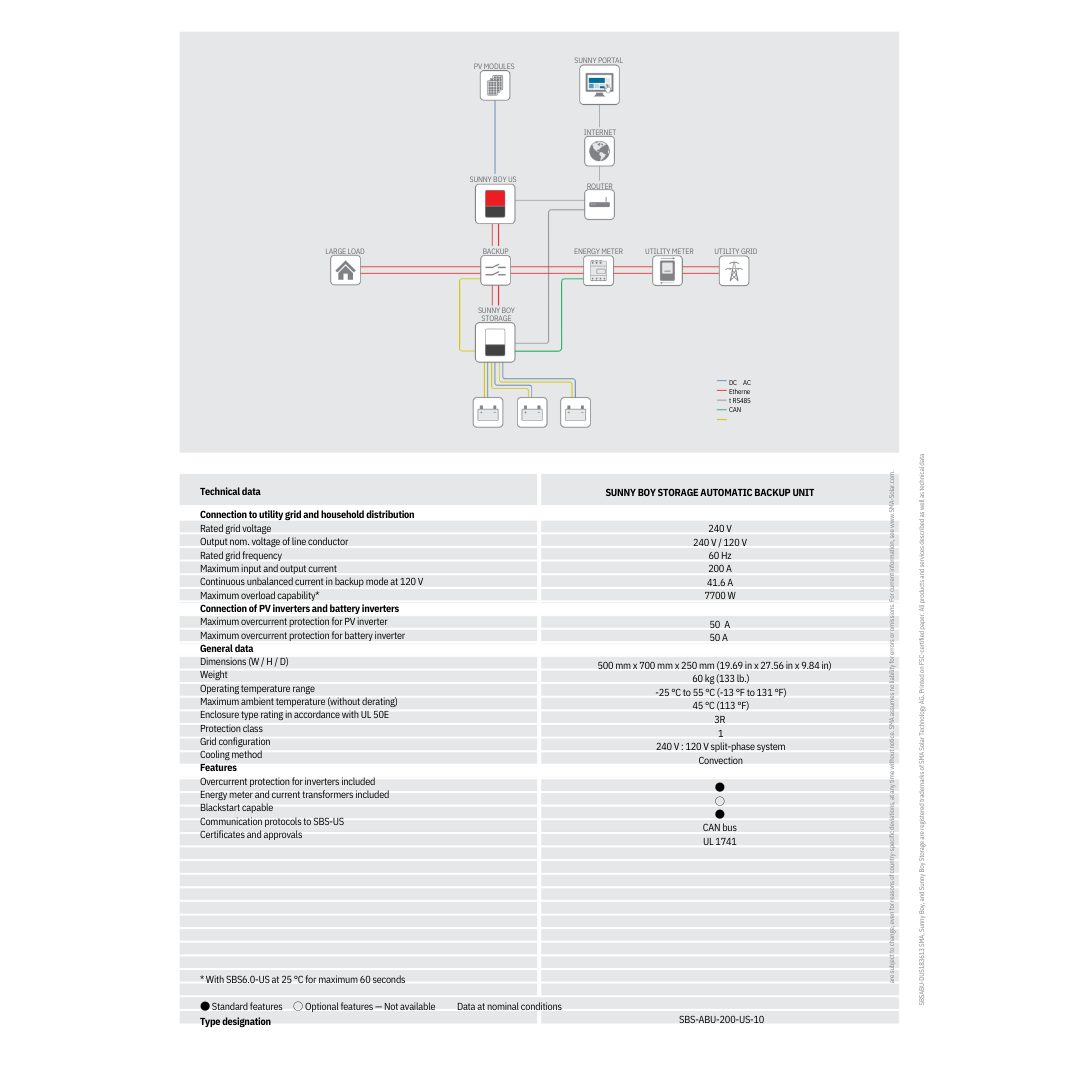

Technical Specifications
- Technology: Automatic Backup Unit
- Dimensions: 23 x 31 x 13.5 inches
- Weight: 125 lbs
- Weight: 2.3 lbs
- Rated Grid Voltage: 240 Volts
- Output Nom. Voltage of Line Conductor: 240V / 120V
- Rated Grid Frequency: 60 Hz
- Max. Input and Output Current: 200 Amps
- Continuous Unbalanced Current in Backup Mode (@120V): 41.6 Amps
- Max. Overload Capability: 7700 Watts
-
Resources
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
✔️ Warranty
