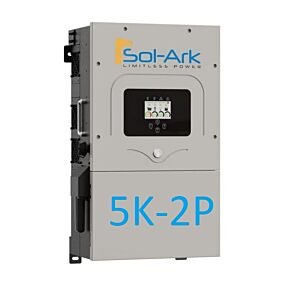

Sol-Ark 5kW Inverter 120/240VAC, 48VDC, (SA-5K-2P)

Sol-Ark 5kW Inverter 120/240VAC, 48VDC, Indoor/Outdoor NEMA-3R(SA-5K-2P)

Simple to install with touchscreen interface
Grid Tied Mode: Sell your power to reduce electric bill
Meter Zero Mode: Zero your electric bill without a smart meter
Time of Use: Use solar and batteries to minimize grid power usage
Programmable Smart Load Mode
DC and AC Coupling
Works with a wide range of battery chemistries - Lead acid to Lithium

Upgrade your home with a reliable hybrid solar inverter for efficient, dependable solar power:

• AC Voltage: 120/240V split phase
• AC Frequency: 60/50 Hz
• Max PV power delivered to Battery & AC outputs: 5000 Watts
• Max AC Coupled input(Micro/String Inverters): 9,600 Watt
• MPPT Voltage Range: 150-425V
• Max DC Current: 10 Amp (per mppt)
• Inverter Efficiency: 96.0%
• Listings & Certifications: UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 class B
• Dimensions (H x W x D): 30.0" x 18.30" x 10.00"
