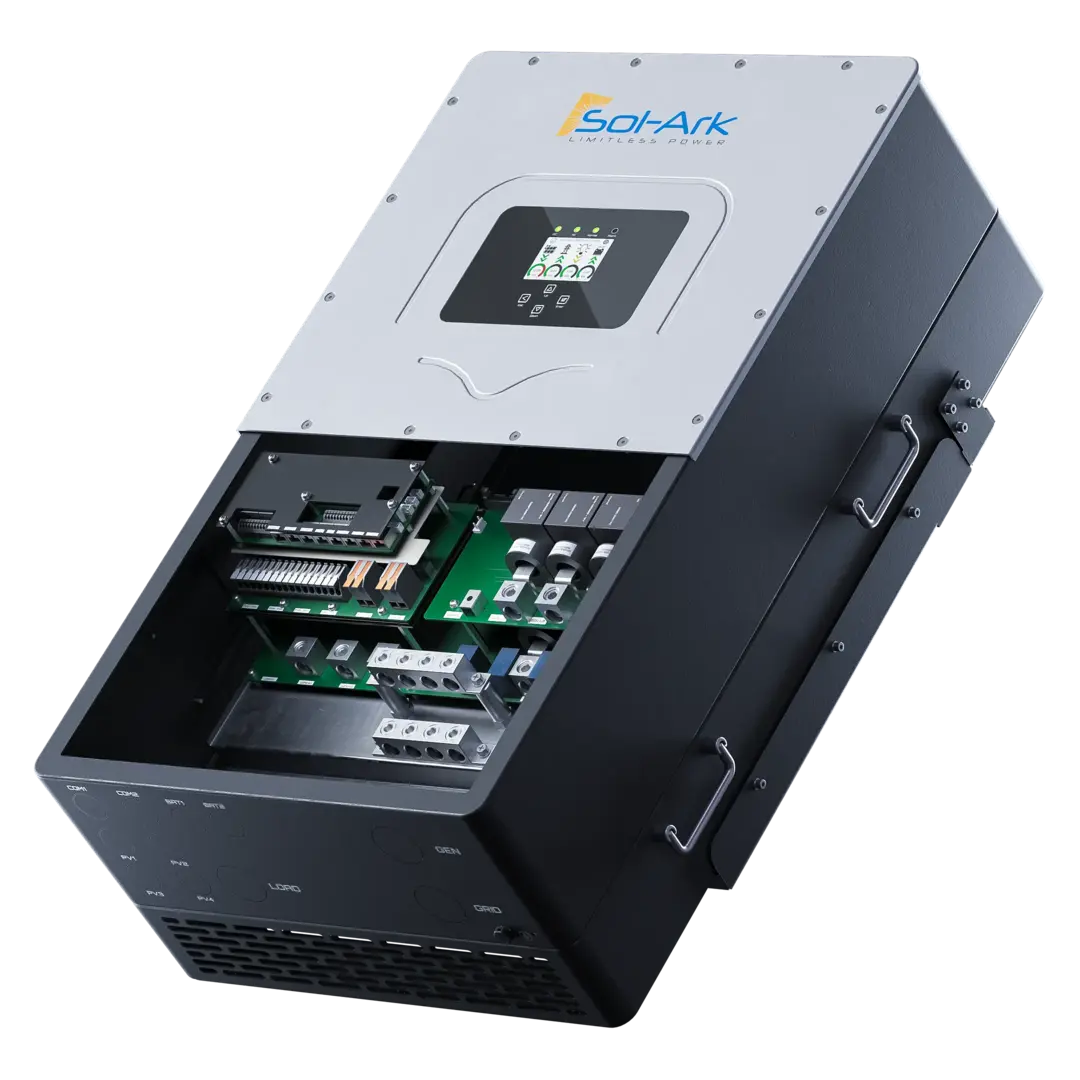

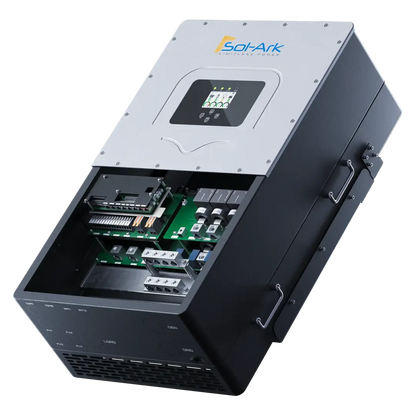

Sol-Ark 30.0kW Battery-Based Inverter (SA-30K-3P)

Sol-Ark 30.0kW Battery-Based Inverter (SA-30K-3P)

AC & DC Coupling Capability: Supports both AC and DC coupling, enabling seamless integration with existing solar PV systems and new arrays that simplify commercial installations.

Modular & Scalable Energy: Modular and flexible design allowing for easy expansion from 30kW to 300kW to accommodate growing energy needs; up to 10 inverters in parallel + 16 batteries per inverter.

Seamless Backup Power: Provides reliable blazing fast 5ms transfer and backup power during grid outages, ensuring business continuity; 200A grid pass-through for simple grid-tied and backup applications.

Upgrade your home with a reliable hybrid solar inverter for efficient, dependable solar power:

• Max. Allowed PV Power (STC: 39,000W
• Max. Allowed PV Power (STC: 150-500V
• Starting Voltage:180V
• Max. Input Voltage 1: 550V
• Max. MPPT Input Current: 36A
• Max. Short Circuit Current by MPPT: 55A
• Max. AC Coupling Input: 30,000W
• Battery Technologies: Lithium
• No. of Battery Inputs: 2
• Battery Terminal Capacity: 50A
• Nominal DC Voltage: ≥300V
• Voltage Operating Range:160 - 500V
• Battery Capacity Range: 50-9900Ah
• Max. Charge/Discharge Current: 100A (50A per input)
• Charge Controller: 3-Stages with Equalization
