Sol-Ark SA-15K-2P 15K Hybrid Inverter

Sol-Ark 15K Hybrid Inverter (SA-15K-2P)

The Sol-Ark SA-15K-2P is a hybrid solar inverter that manages solar panel power, battery storage, and home backup power in one unit. Its built-in 200-amp main breaker connects directly to your home's main electrical service to back up your whole house during a blackout without requiring a separate subpanel. When the power grid goes down, it switches your home to backup power in 5 milliseconds to keep your lights and appliances running smoothly.

This system features three independent solar tracking channels with six total connection ports to handle solar arrays pointing in different directions. The internal battery charger works with standard 48-volt lithium-ion or lead-acid solar batteries to store extra energy generated during the day. Built-in time-of-use settings allow you to automatically use stored battery energy when grid electricity costs are highest.

Key Performance Highlights

Upgrade your home with a reliable hybrid solar inverter for efficient, dependable solar power.

• Maximum Efficiency: Achieves up to 97.5% efficiency through a DC-to-DC architecture, reducing energy loss from unnecessary conversions.
• Seamless Power Transition: Features an automatic 5ms transfer time, ensuring sensitive electronics remain powered without interruption during grid failures.
• Robust Whole-Home Backup: Includes a 200A grid pass-through, eliminating the need for separate critical loads panels by powering your entire home directly.
• Versatile Integration: Fully compatible with diverse battery chemistries such as Lithium-ion, Lead-acid, and advanced solid-state batteries.

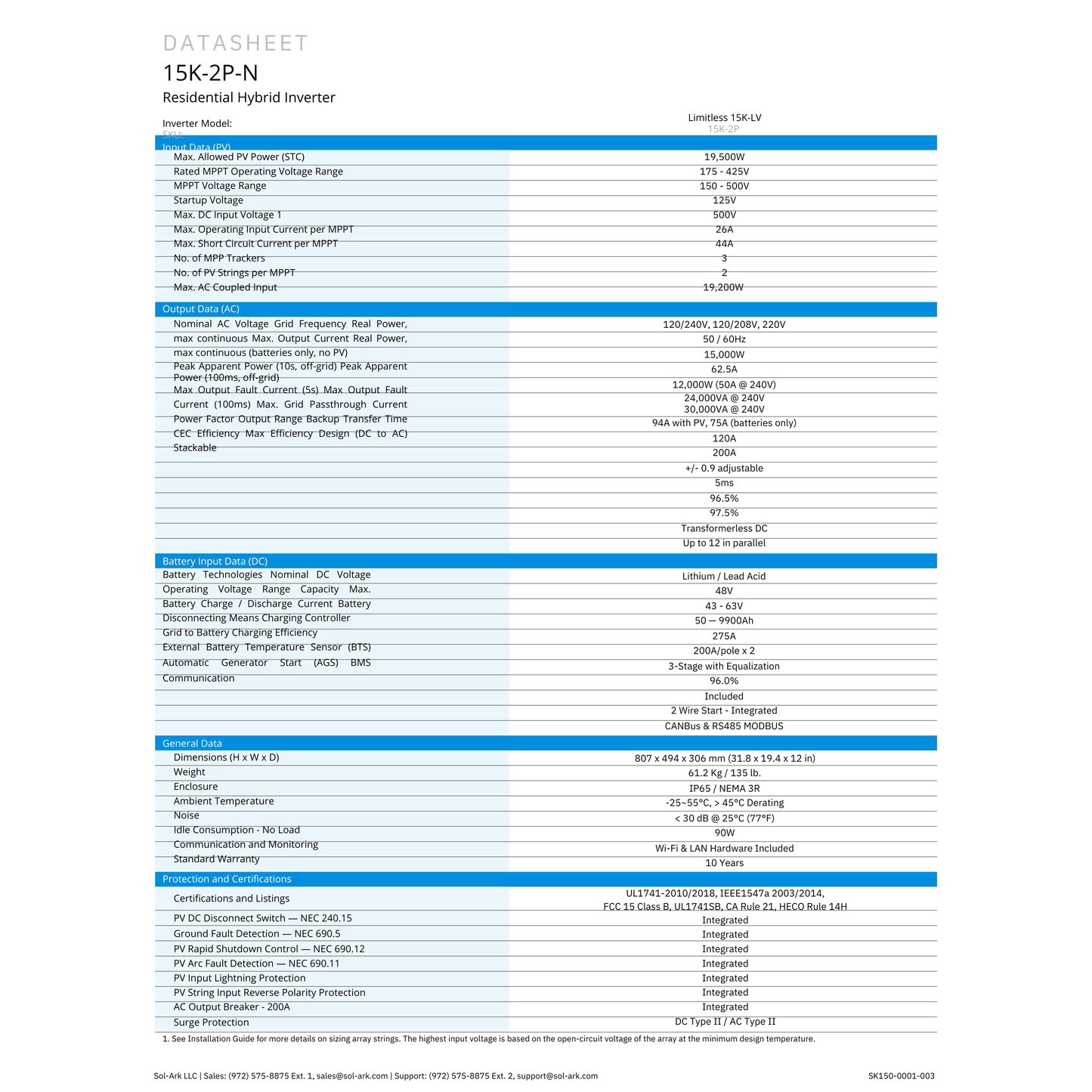

Technical Specifications:

• 15kWac Solar
• 12kWac Batteries
• 200A Grid Pass-Through
• 6X DC Solar Ports
• 3X Full Sized MPPT
• 19kW AC Coupling
• Rapid Shutdown Controls
• 275A Battery Charger
• 2X 48V Battery Ports
• UL9540 Options Available
• Multi-Season Time-of Day Settings
• Automatic 5ms Transfer Time
• Virtual Power Plant Ready
• Two-Wire Start Generator
• Automatic Shed EV Based on Time of Use
• Single Circuit Smart Load Functionality
