Sol-Ark SA-15K-2P-N 15kW Inverter

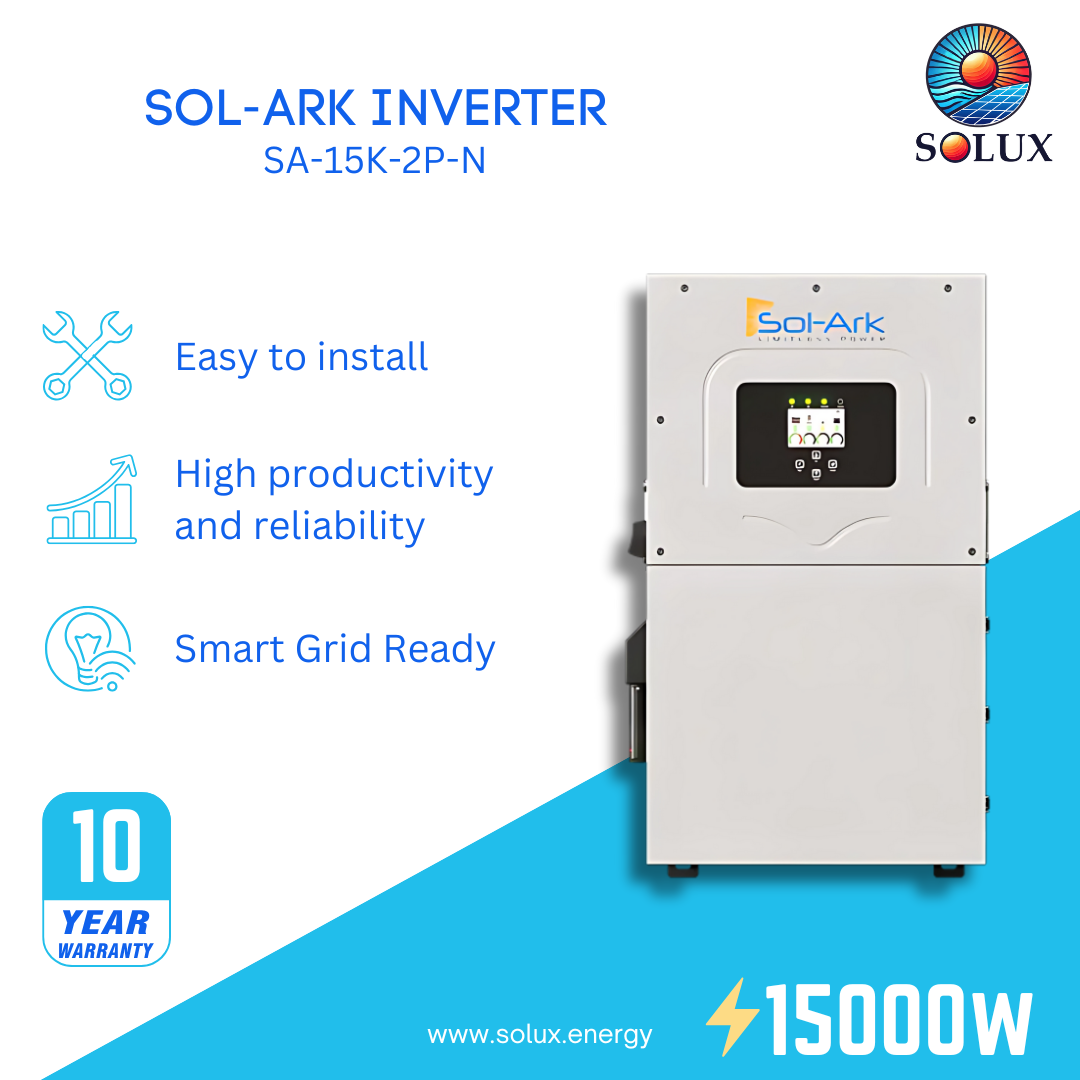

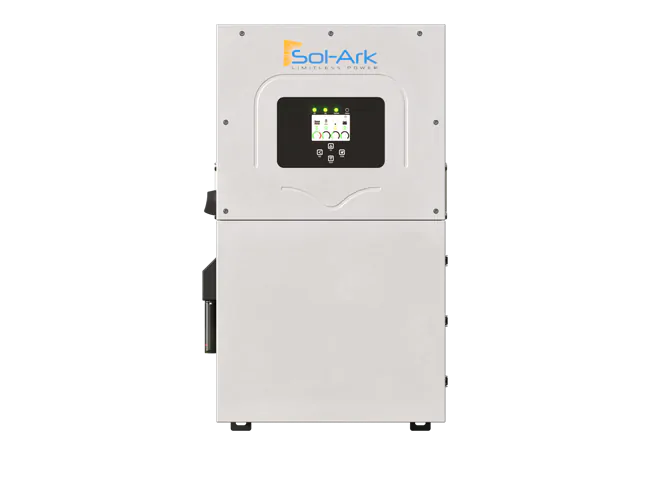

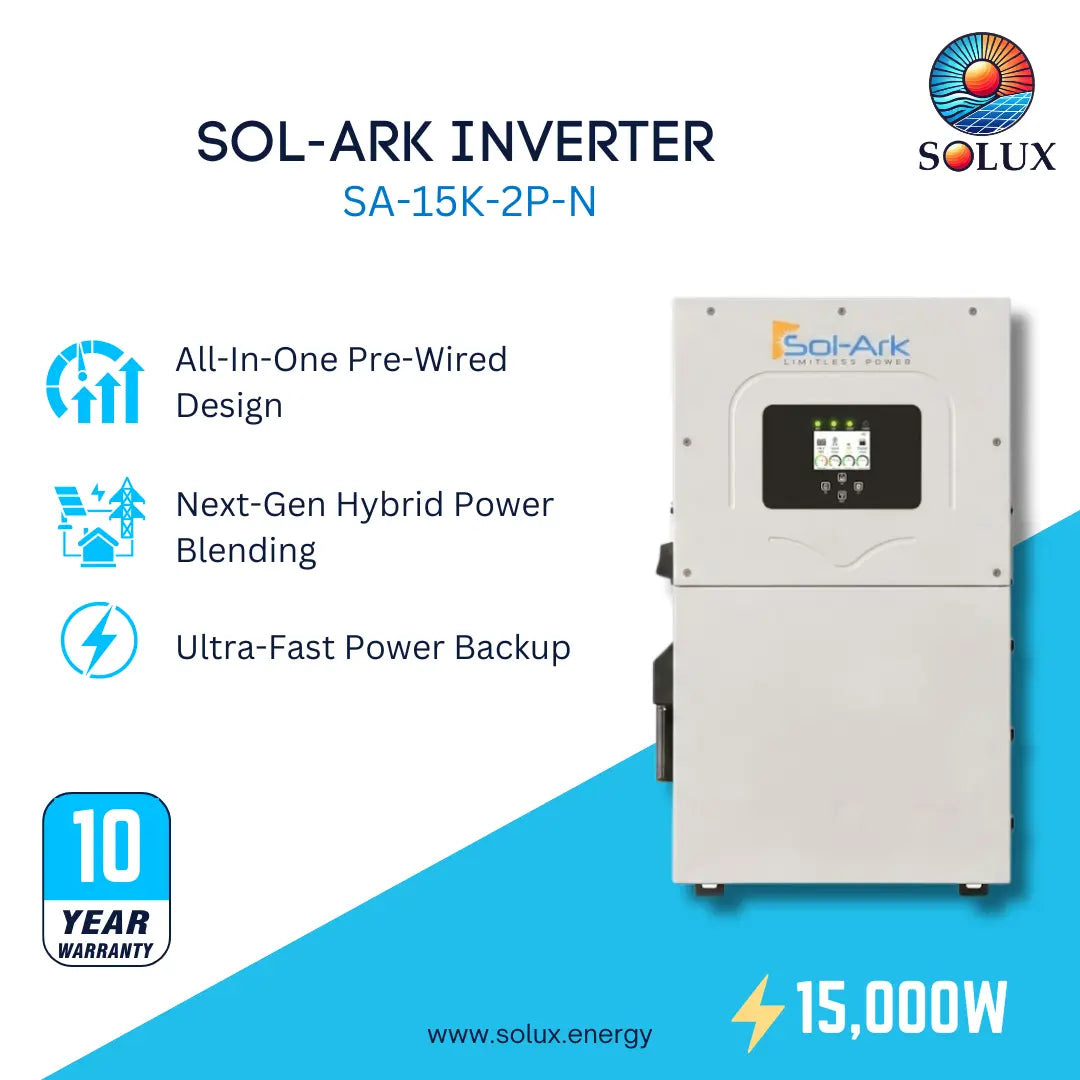

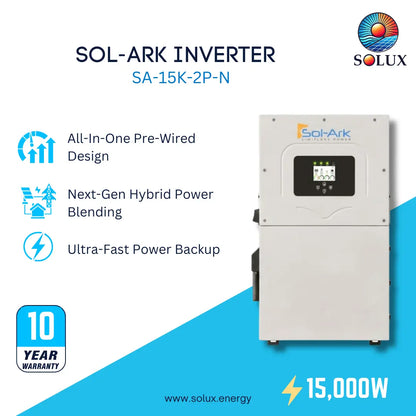

Sol-Ark 15kW Hybrid Inverter (SA-15K-2P-N)

The Sol-Ark 15K-2P-N is a residential single-phase hybrid solar inverter built to manage solar generation, battery energy storage, and whole-home power backup within a single wall-mounted system. Designed strictly for indoor installation (NEMA 1), this unit combines an integrated charge controller, inverter, and automatic transfer switch to handle up to 19,500 W of solar array capacity across three independent MPPT trackers.

Operating across grid-tied, off-grid, and hybrid backup modes, the Sol-Ark 15k-2p-n supports both DC-coupled and AC-coupled solar configurations. Its 48V battery interface works with Lithium-ion and Lead-Acid battery chemistry, allowing flexible energy management without requiring external transformers.

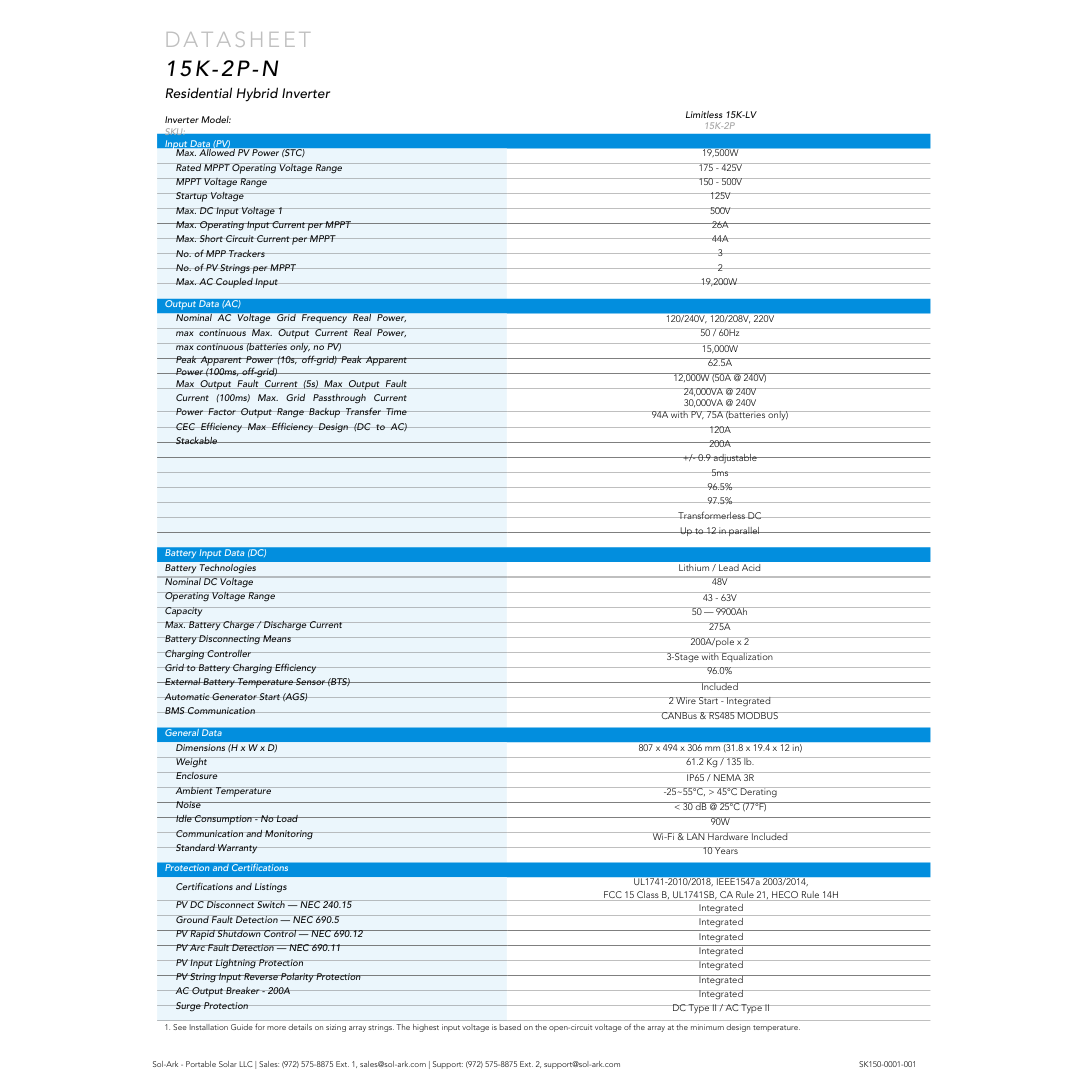

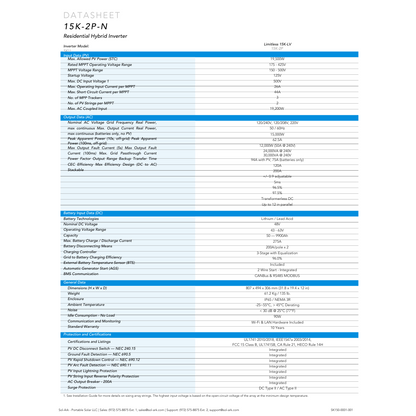

Technical Specifications:

• Model: Sol-Ark 15K-2P-N
• Max PV Power (STC): 19,500W
• Nominal AC Voltage: 120/240V, 120/208V, 220V
• Nominal DC Voltage: 48V
• Number of MPPT: 3
• MPPT Voltage Range: 150 - 500V
• Battery Technologies: Lithium / Lead Acid
• Ambient Temperature: -25~55°C, > 45°C Derating
• Standard Warranty: 10 Years
• Dimensions (H x W x D): 31.8 x 19.4 x 12 in
• Weight: 61.2 Kg / 135 lb.
• Enclosure: NEMA 1 INDOOR only
• Certifications and Listings UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
