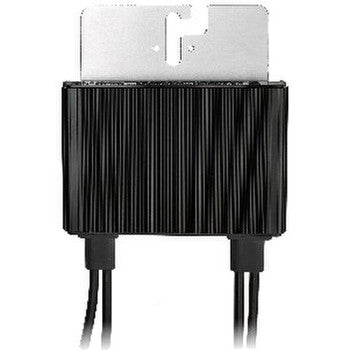

SolarEdge Power Optimizer 650W/ 80V

SOLAREDGE S650B-1GM4MBM POWER OPTIMIZER FOR PHOTOVOLTAIC MODULES UP TO 650Wp

Detection of anomalous behavior in photovoltaic connectors, preventing potential safety problems
Automatic voltage reduction at module level for the safety of installers and firefighters
Superior efficiency (99,5%)
Reduces all types of losses due to module decoupling, from manufacturing tolerance to partial shading
Faster installations with simplified cable management and easy one-bolt mounting
Flexible system design for maximum space utilization
Compatible with double-sided photovoltaic modules

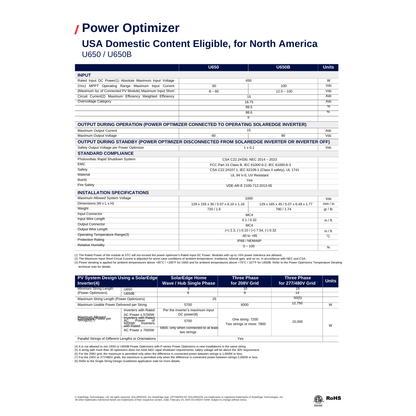

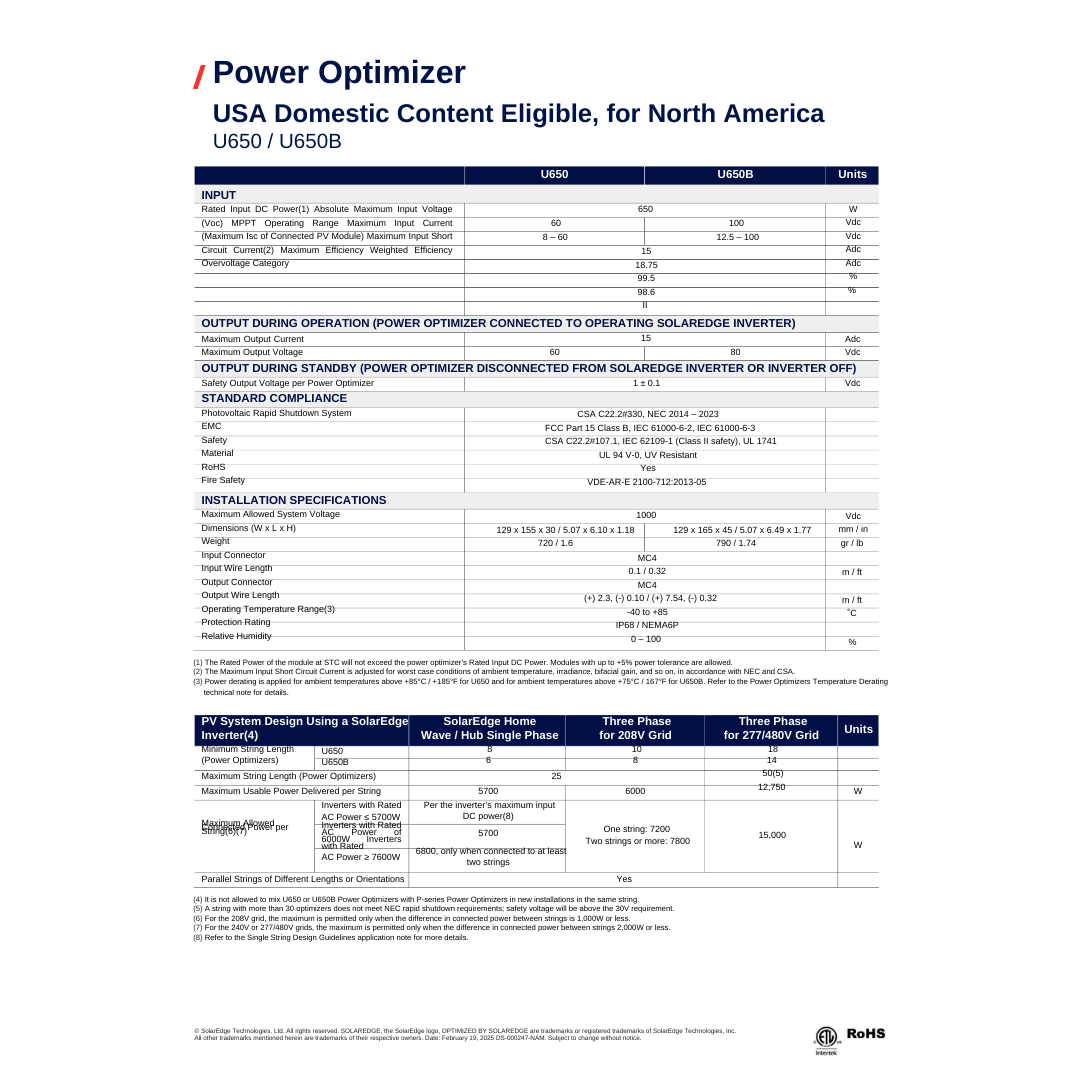

Technical Specifications

• Rated DC Input Power: 650W
• Absolute maximum input voltage: 85 VDC
• (Voc at lowest temperature)
• MPPT operating range: 12,5-85 VDC
• Maximum Short Circuit Current (Isc): 15 Acc
• Maximum efficiency: 99,5%
• Weighted efficiency: 98,6%
• Overvoltage category: II
• Maximum Output Current: 15 Acc
• Maximum output voltage: 80 VDC
