Description
Rolls Surrette Battery S6-460AGM-RE
Designed in compliance with applicable BCI,DIN,BS and IEC standards. Tested in compliance to BCI and IEC standards.
Technical Specifications:
- Weight: 57 kg / 126 lbs
- Length: 295 mm / 11.61"
- Width: 180 mm / 7.09"
- Height Incl. Term.: 423 mm / 16.65"
- Container: ABS
- Cover: ABS
- Handles: Rope / Plastic Handle
- Series: AGM-S
- Volts: 6
- Design: L16
- Cells: 3
- Terminal Type: F23-1
- Included Hardware: M10 stainless bolts & washers
- Size & Thread: M10
- Charge Voltage Range: 2.45 V/cell @ 25°C (77°F)
- Float Voltage Range: 2.3 V/cell @ 25°C (77°F)
- Recommended Charge Current: 85 A
- Maximum Charge Current: 125 A
- Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
- Internal Resistance: 1.6 mΩ
- Cold Crank Amps (CCA) 0°F / -18°C: 1500
- Marine Crank Amps (MCA) 32°F / 0°C: 1800
- Reserve Capacity (RC @ 25A): 885 Minutes
- Reserve Capacity (RC @ 75A): 229 Minutes
- Capacity AMP @ 20 Hour Rate: 415 Ah
-
Downloads

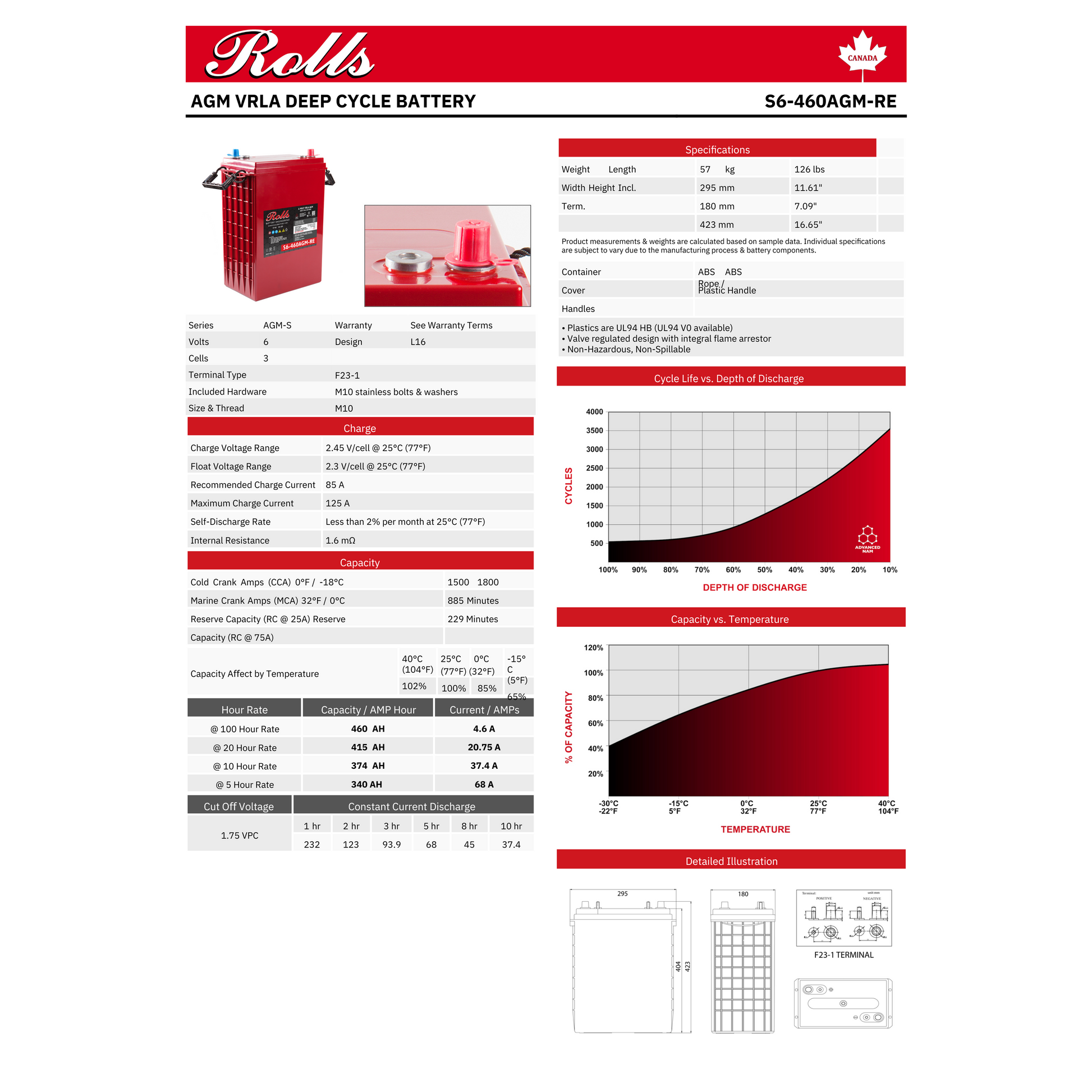

Datasheet
✔️ Download Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
See warranty terms.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
