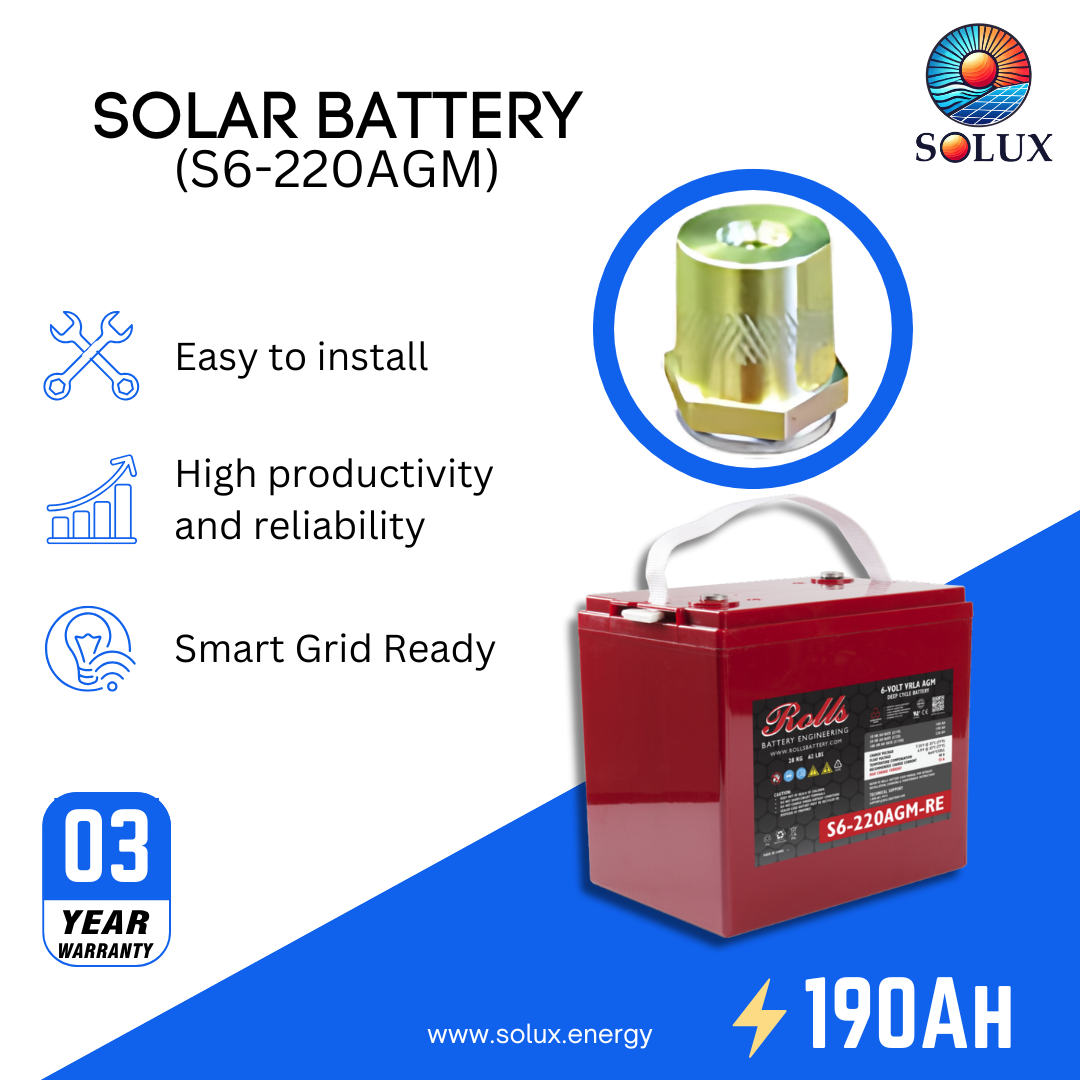

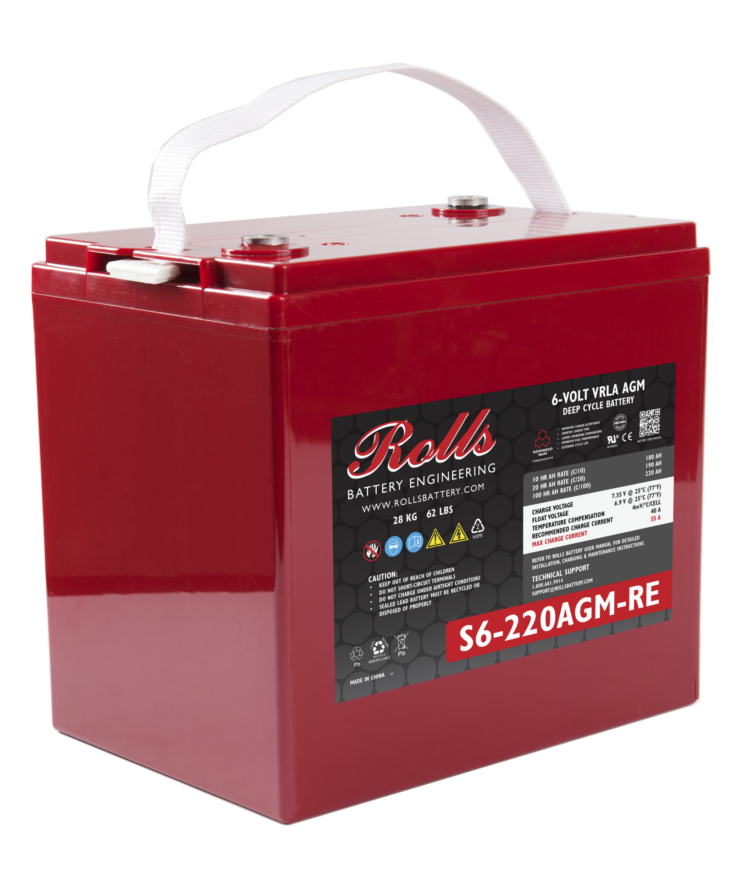

Rolls Surrette S6-220AGM 6VDC 190Ah AGM Deep Cycle Battery

Rolls S6-220AGM-RE: Premium 6V 220Ah AGM Deep Cycle Battery

The Rolls S6-220AGM-RE is a professional-grade 6V sealed battery engineered by Surrette Battery Ltd. for high-demand Renewable Energy (RE) and marine applications. This 220Ah (100hr) unit provides the high-density energy storage required for mission-critical off-grid systems and high-end RV power banks.

Designed in compliance with applicable BCI,DIN,BS and IEC standards. Tested in compliance to BCI and IEC standards.

Why the Rolls S6-220AGM-RE is the Off-Grid Standard

• VRLA AGM-S Technology: Completely sealed, valve-regulated design eliminates water top-offs and specialized venting. Safe for installation in enclosed cabins, RV compartments, or boat bilges.
• Exceptional Cold-Weather Performance: Boasts 85% capacity retention at 32°F (0°C), significantly outperforming standard AGM units in harsh winter environments.
• Superior Cycle Resilience: Built with thick, heavy-duty plates designed to survive repeated deep discharge cycles while maintaining long-term capacity.
• Universal Terminal Setup: Equipped with F12 (M8) terminals and includes TP08 adapters, allowing for clean, high-torque connections for both solar busbars and automotive-style clamps.

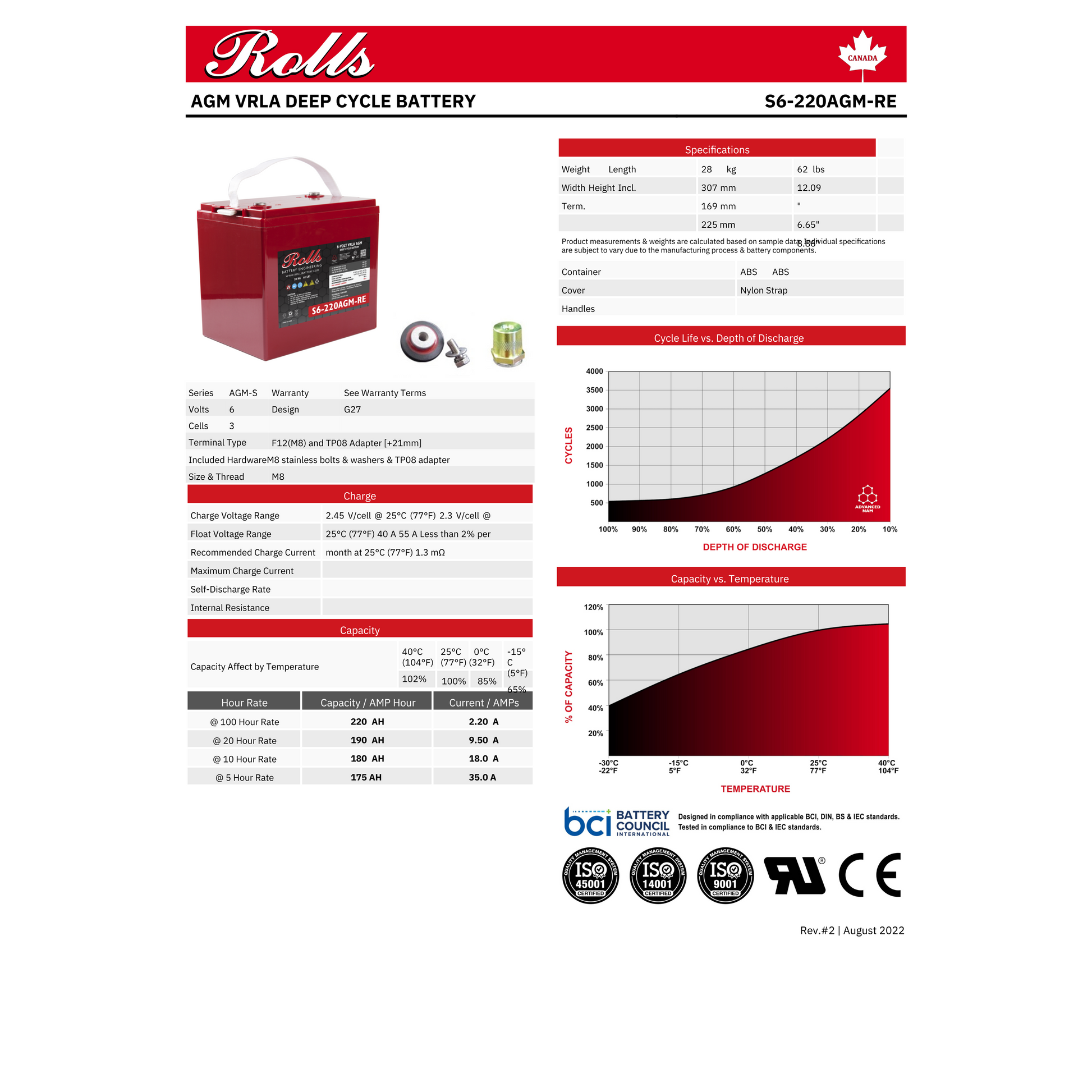

Technical Specifications:

• Weight: 28 kg / 62 lbs
• Length: 307 mm / 12.09"
• Width: 169 mm / 6.65"
• Height Incl. Term.: 225 mm / 8.86"
• Container: ABS
• Cover: ABS
• Handles: Nylon Strap
• Series: AGM-S
• Volts: 6
• Design: G27
• Cells: 3
• Terminal Type: F14(M8) and TP08 Adapter [+21mm]
• Included Hardware: M8 stainless bolts & washers & TP08 adapter
• Size & Thread: M8
• Charge Voltage Range: 2.45 V/cell @ 25°C (77°F)
• Float Voltage Range: 2.3 V/cell @ 25°C (77°F)
• Recommended Charge Current: 40 A
• Maximum Charge Current: 55A
• Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
• Internal Resistance: 1.3 mΩ
• Capacity AMP @ 20 Hour Rate: 190 Ah
