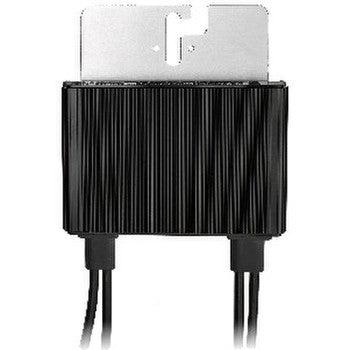

SolarEdge Power Optimizer 500W/ 125V

SolarEdge Power Optimizer 500W/ 125V

Specifically designed to work with SolarEdge residential inverters
Detects abnormal PV connector behavior, preventing potential safety issues
Module-level voltage shutdown for installer and firefighter safety
Superior efficiency (99.5%)
Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
Faster installations with simplified cable management and easy assembly using a single bolt
Flexible system design for maximum space utilization
Compatible with bifacial PV modules
Meets NEC requirements for arc fault protection (AFCI) and Photovoltaic Rapid Shutdown System (PVRSS)

Simple, fast installation and fully compatible with thousands of different inverter models. Upgrade your home with a reliable solar optimizer for efficient, dependable solar power:

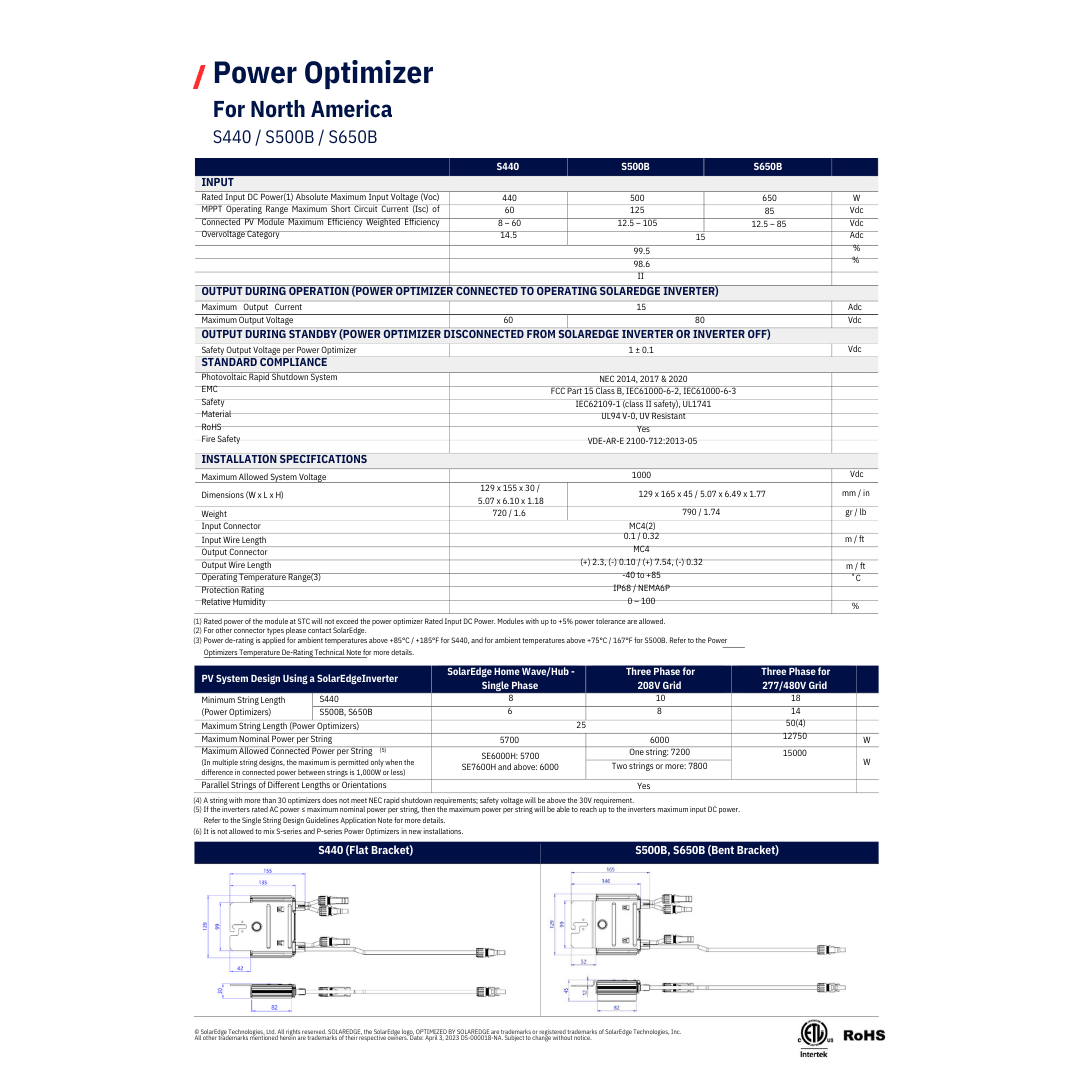

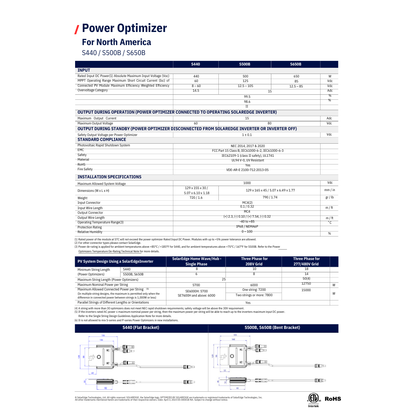

• Rated Input DC Power(1): 500W
• Absolute Maximum Input Voltage (Voc) : 125Vdc
• Dimensions: 5.4 x 6.4 x 2.3 Inches
• MPPT Operating Range: 12.5 – 105 Vdc
• Maximum Allowed System Voltage: 12.5 – 105 Vdc
• Maximum Short Circuit Current (Isc) of Connected PV Module: 15 Adc
• Maximum Efficiency : 99.5%
• Weighted Efficiency: 98.6%
• Maximum Output Current: 15 Adc
• Maximum Output Voltage: 80 Vdc
• Dimensions (W x L x H): 129 x 165 x 45 mm
• Weight: 1.74Lbs
