Description

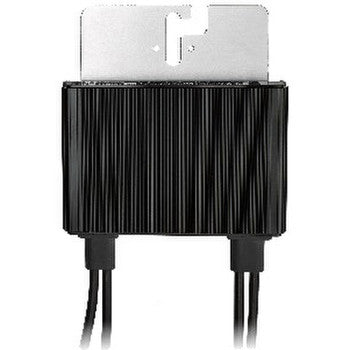

SolarEdge Power Optimizer 500W/ 125V
Specifically designed to work with SolarEdge residential inverters
Detects abnormal PV connector behavior, preventing potential safety issues
Module-level voltage shutdown for installer and firefighter safety
Superior efficiency (99.5%)
Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
Faster installations with simplified cable management and easy assembly using a single bolt
Flexible system design for maximum space utilization
Compatible with bifacial PV modules
Meets NEC requirements for arc fault protection (AFCI) and Photovoltaic Rapid Shutdown System (PVRSS)Technical Specifications
- Rated Input DC Power(1): 500W
- Absolute Maximum Input Voltage (Voc) : 125Vdc
- Dimensions: 5.4 x 6.4 x 2.3 Inches
- MPPT Operating Range: 12.5 – 105 Vdc
- Maximum Allowed System Voltage: 12.5 – 105 Vdc
- Maximum Short Circuit Current (Isc) of Connected PV Module: 15 Adc
- Maximum Efficiency : 99.5%
- Weighted Efficiency: 98.6%
- Maximum Output Current: 15 Adc
- Maximum Output Voltage: 80 Vdc
- Dimensions (W x L x H): 129 x 165 x 45 mm
- Weight: 1.74Lbs
-
Resources

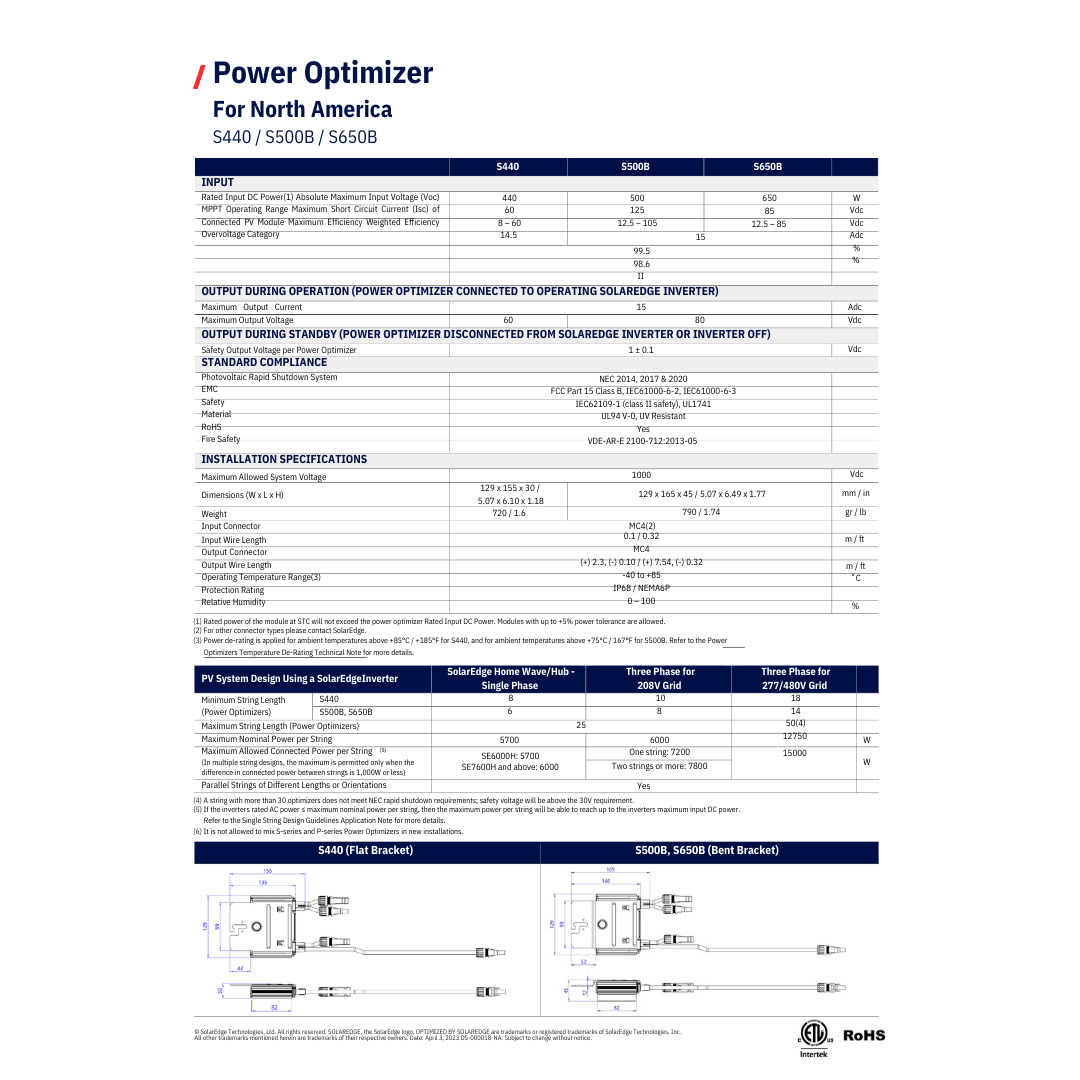

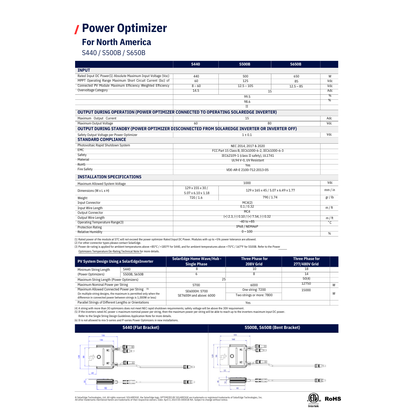

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
✔️ Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
