Description

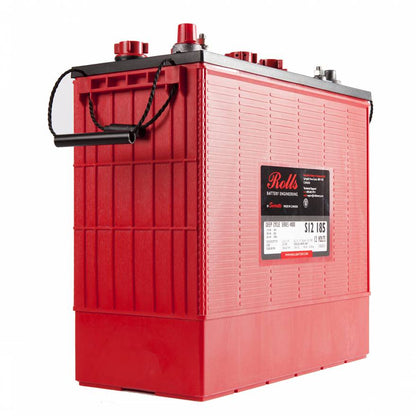

Rolls Surrette Battery S12 185
Designed in compliance with applicable BCI,DIN,BS and IEC standards. Tested in compliance to BCI and IEC standards.
Technical Specifications:
- Weight: 52 kg/114.5 lbs
- Length: 391 mm/15.38"
- Width: 178 mm/7"
- Height Incl. Term.: 365 mm/14.38"
- Electrolyte Reserve: 51 mm/2"
- Container: Polypropylene
- Cover: Polypropylene
- Handles: Rope / Plastic Handle
- Series: 4000
- Volts: 12
- Design: 921
- Cells: 6
- Plates/Cell : 11
- Terminal Type: DT
- Included Hardware: Stainless Steel K-Lock Nut
- Size & Thread: 5/16"-18
- Cables: Optional: 19" 4/0 interconnect cable
- Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
- Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
- Recommended Charge Current: 25 A
- Maximum Charge Current: 40 A
- Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
- Cold Crank Amps (CCA) 0°F / -18°C: 810
- Marine Crank Amps (MCA) 32°F / 0°C: 1013
- Reserve Capacity (RC @ 25A): 406 Minutes
- Reserve Capacity (RC @ 75A): 107 Minutes
- Capacity AMP @ 20 Hour Rate: 210 Ah
-

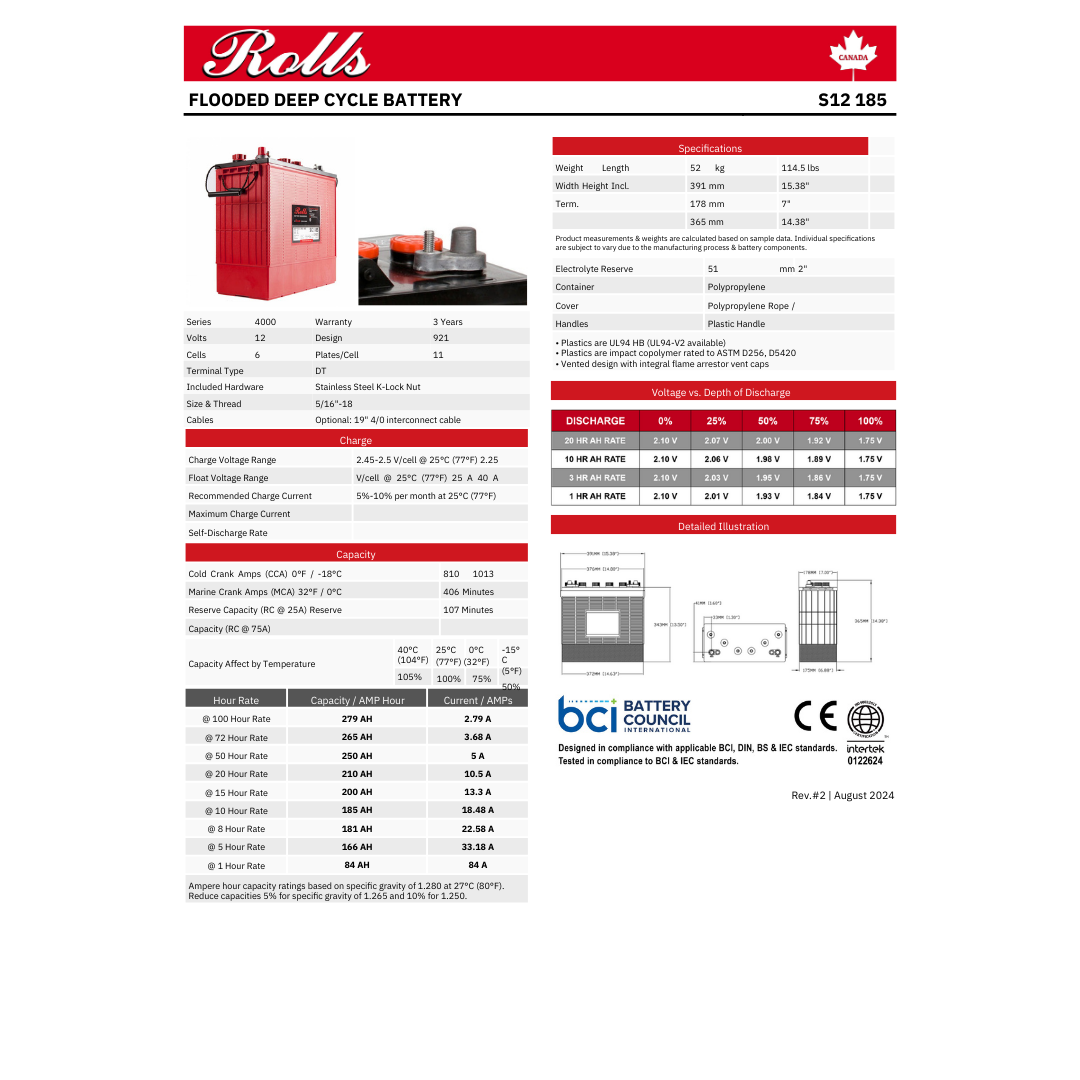

Downloads
Datasheet
✔️ Download Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
3 Years Warranty.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
