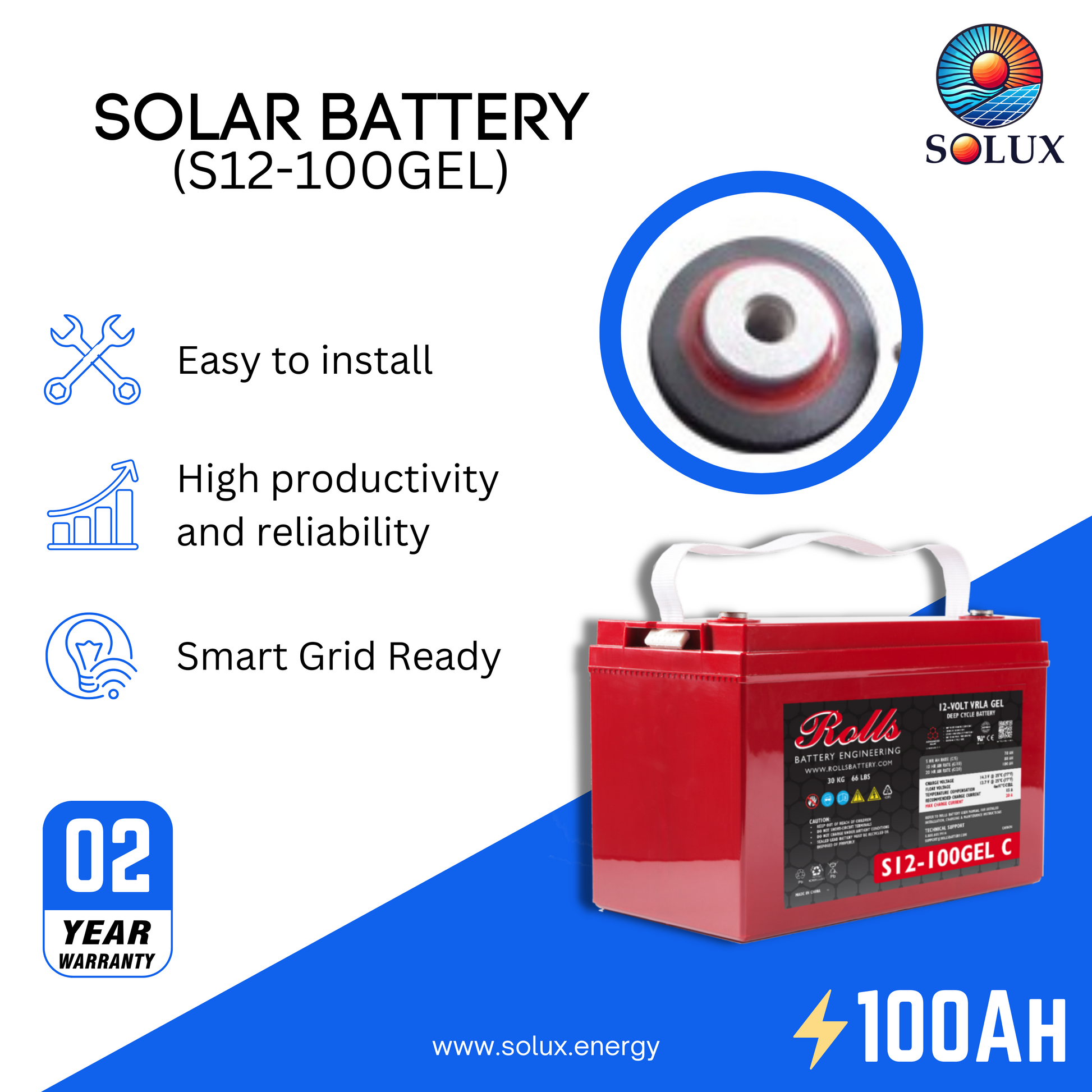

Rolls Surrette S12-100GEL 12VDC 100Ah Deep Cycle GEL Battery

Rolls Surrette Battery S12-100GEL C

Designed in compliance with applicable BCI,DIN,BS and IEC standards. Tested in compliance to BCI and IEC standards.

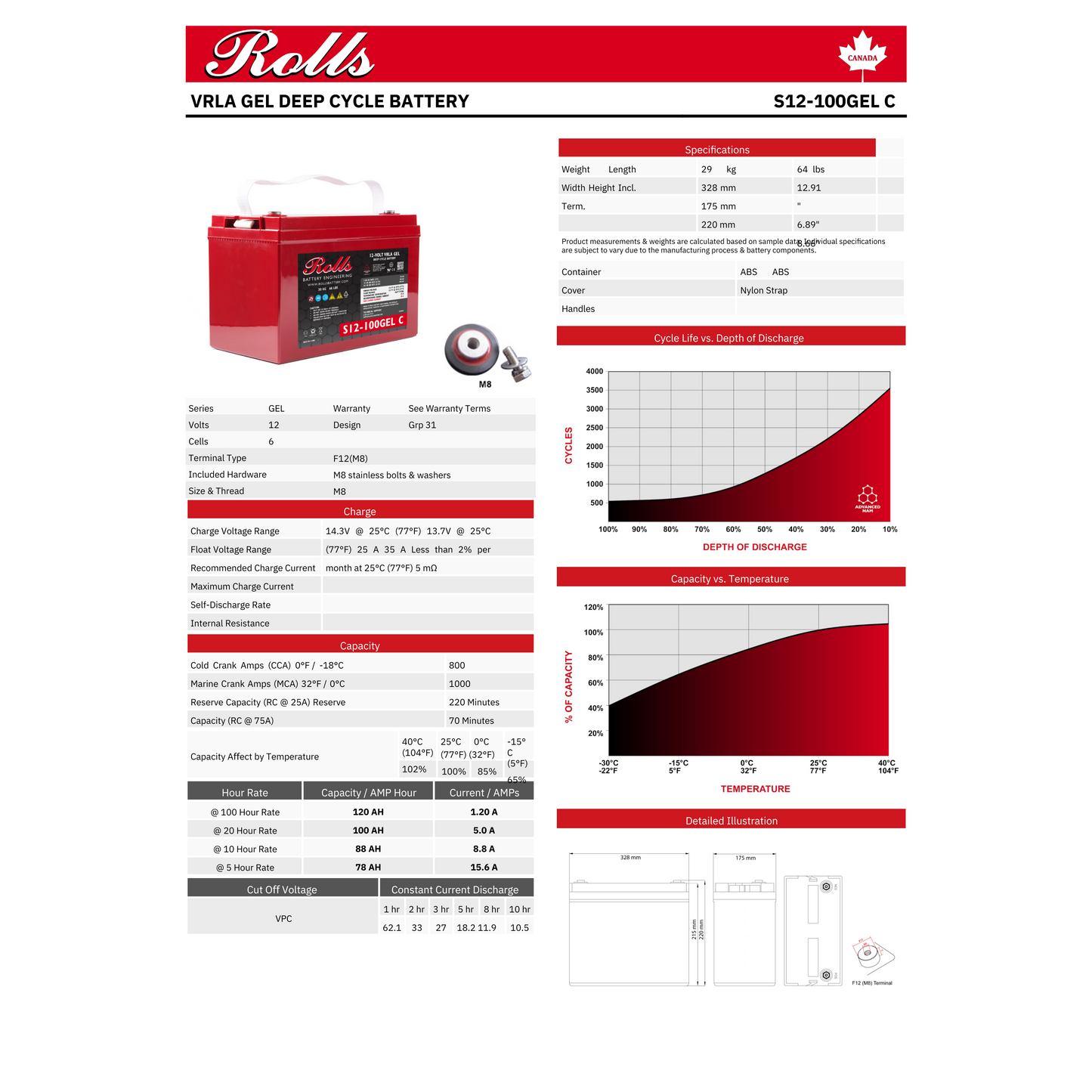

Technical Specifications:

• Weight: 29 kg / 64 lbs
• Length: 328 mm / 12.91"
• Width: 328 mm / 12.91"
• Height Incl. Term.: 220 mm / 8.66"
• Container: ABS
• Cover: ABS
• Handles: Nylon Strap
• Series: GEL
• Volts: 12
• Design: Grp 31
• Cells: 6
• Terminal Type: F12(M8)
• Included Hardware: M8 stainless bolts & washers
• Size & Thread: M8
• Charge Voltage Range: 14.3V @ 25°C (77°F)
• Float Voltage Range: 13.7V @ 25°C (77°F)
• Recommended Charge Current: 25 A
• Maximum Charge Current: 35 A
• Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
• Internal Resistance: 5 mΩ
• Cold Crank Amps (CCA) 0°F / -18°C: 800
• Marine Crank Amps (MCA) 32°F / 0°C: 1000
• Reserve Capacity (RC @ 25A): 220 Minutes
• Reserve Capacity (RC @ 75A): 70 Minutes
• Capacity AMP @ 20 Hour Rate: 100Ah
